Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// [Intel Celeron G3902E | Intel Core i3-6102E | Intel Core i5-6440EQ | Intel Core i7-6820EQ]
// Intel QM170
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// Digital I/O (8-Bit)
// 1 x PCIe x16
// 2 x Mini-PCIe
// Power Supply ATX
// DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

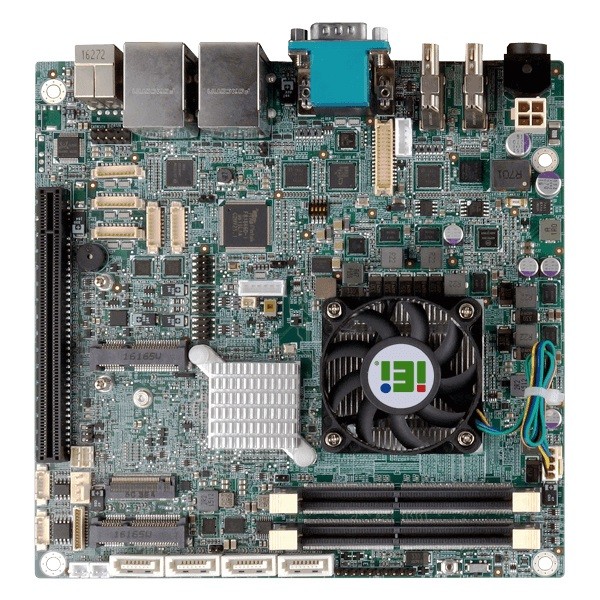

Basismodul: IEI KINO-DQM170
Allgemein | ||||
SKU / Artikelnummer | KINO-DQM170 | |||
Produktgrunddaten | ||||
Hersteller | IEI | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Skylake | |||
Nummer | Intel Celeron G3902E, Intel Core i3-6102E, Intel Core i5-6440EQ, Intel Core i7-6820EQ | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St, 8 St | |||
Sockel | BGA 1440 | |||
Basis Frequenz | 1,6 GHz, 1,9 GHz, 2,7 GHz, 2,8 GHz | |||
Max. Turbo-Taktfrequenz | 3,4 GHz, 3,5 GHz, - | |||
Cache | 2 MB, 3 MB, 6 MB, 8 MB | |||
Thermal Design Power (TDP) | 25 W, 45 W | |||
Chipsatz | Intel QM170 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 1866 / 2133 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics 510, Intel HD Graphics 530 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0 | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Erweiterung | ||||
PCIe x16 | x16 Signal | Anzahl | 1 St | |
Mini-PCIe | Halbe Bautiefe | Anzahl | 1 St | |
Volle Bautiefe | Anzahl | 1 St | ||
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x PCIe x16, 2x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | A | |
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | A | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Active Management Technology (AMT) Version | 11.0 | |||
Netzwerk | 2x G-LAN | |||

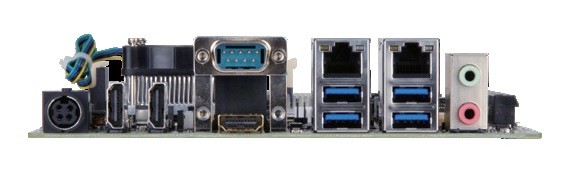

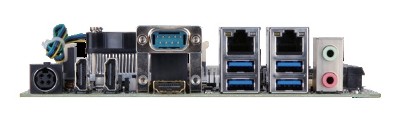

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 3 St | ||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
PS/2 | Stiftleiste | 1 St | ||
Seriell | RS-232 | Ports (1.27 mm Pitch) | 3 St | |
RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 2 St | ||
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
I²C | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 4-Pin ATX (12V DC) | |
DC | Weitbereich | Nein | ||
Bereich | 12V | |||
Anschluss | 4 Pin Anschluss (Kycon, Singatron or similar) | |||
Stromversorgung - Eingang | ATX: 4-Pin ATX (12V DC), DC: 12V | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Gewicht | 450 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
