Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// [Intel Atom x5-E3940 | Intel Celeron N3350]
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// 1 x HDMI
// 2 x Displayport
// LVDS
// 2 x G-LAN
// 4 x USB
// 5 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x PCIe x1
// Power Supply DC 12V / 19V / 24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

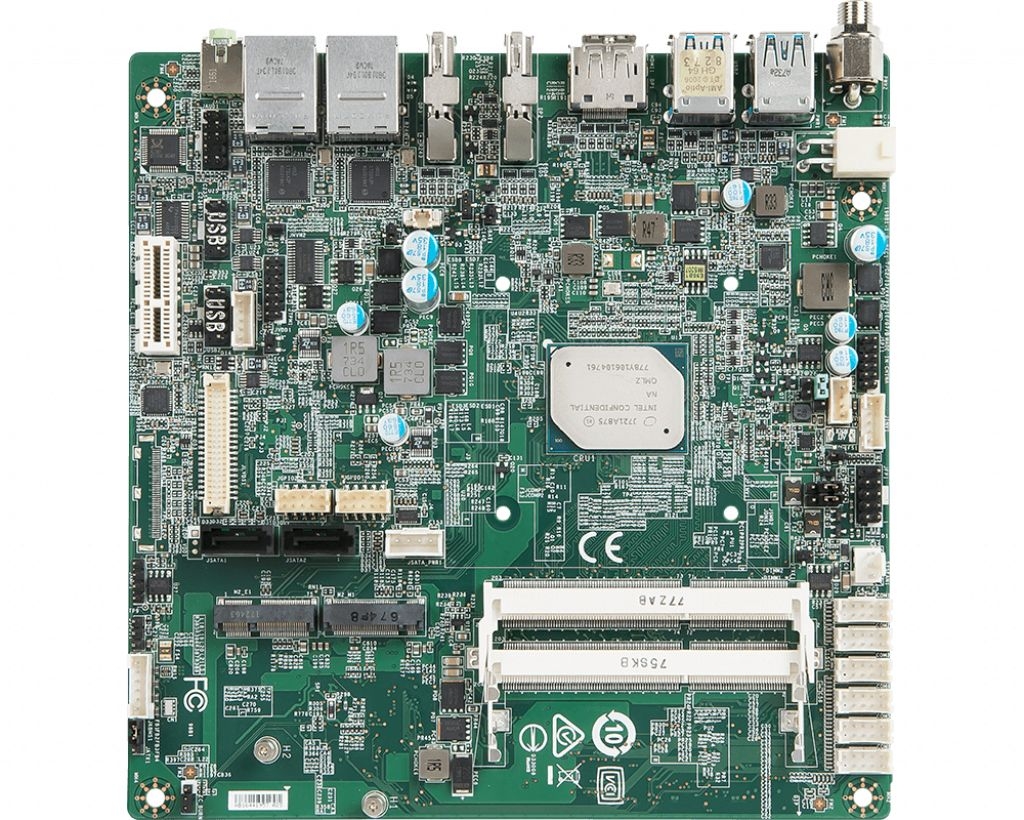

Basismodul: MSI MS-98B1
Allgemein | ||||
SKU / Artikelnummer | MS-98B1 | |||
Produktgrunddaten | ||||
Hersteller | MSI | |||
System | ||||
Prozessor | Serie | Intel Apollo Lake | ||
Nummer | Intel Atom x5-E3940, Intel Celeron N3350 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,6 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W, 9,5 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Frequenz | 1600 / 1866 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 8 GB | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81867AD-I | |
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Erweiterung | ||||
PCIe x1 | x1 Signal | 1 St | ||
PCIe Schnittstellen | 1x PCIe x1 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | SATA III | |||
Unterstütze Abmaße | 2242 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Audio | ||||
Chipsatz | Realtek ALC887-VD2-CG | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

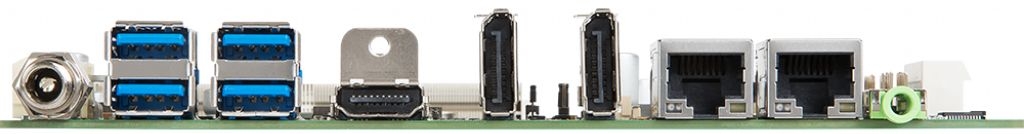

Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 4 St | ||
Anzeige | HDMI | 1 St | ||
Displayport | 2 St | |||
Audio | Line-Out | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 5 St | |
PS/2 | Stiftleiste | 1 St | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 2 St | ||
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 16-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
S/PDIF | verfügbar | |||
Amplifier | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12V / 19V / 24V | |||
Anschluss | Hohlstecker | |||
DC | Weitbereich | Ja | ||
Bereich | 12V / 19V / 24V | |||
Anschluss | 4 Pin Anschluss (horizontal) | |||
Stromversorgung - Eingang | DC: 12V / 19V / 24V,12V / 19V / 24V | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Fedora 25, Ubuntu 16.04 | ||
Unterstützte BS | Linux, Windows | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Lagerung | 10 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Gewicht | 370 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja |
