Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// [Intel Core i3-6100U | Intel Core i5-7300U | Intel Core i5-8250U]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// [2 | -] x HDMI
// [1 | 2 | -] x Displayport
// LVDS
// [1 | 2] x G-LAN
// 4 x USB
// [4 | 5] x USB (internal)
// [2 | 6] x Seriell I/O
// Digital I/O (8-Bit)
// [0 | 1] x PCIe x4
// 2 x Mini-PCIe
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

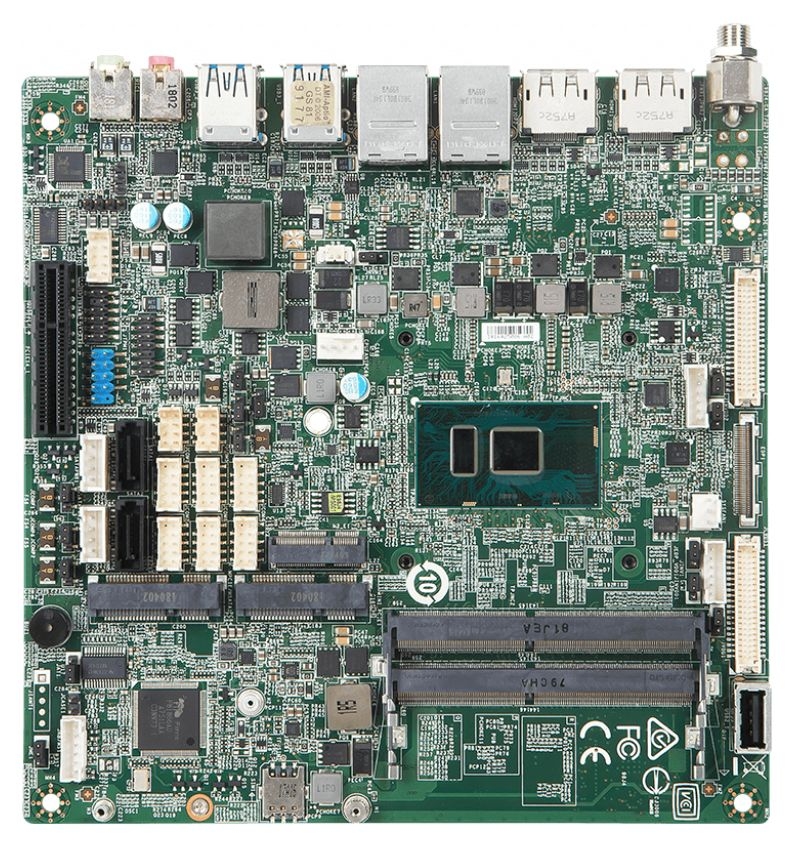

Basismodul: MSI MS-98J4
| Allgemein | ||||
| SKU / Artikelnummer | MS-98J4 | |||
| Produktgrunddaten | ||||
| Hersteller | MSI | |||
| System | ||||
| Prozessor | Serie | Intel Kaby Lake, Intel Skylake | ||
| Nummer | Intel Core i3-6100U, Intel Core i5-7300U, Intel Core i5-8250U | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 4 St, 8 St | |||
| Sockel | BGA 1356 | |||
| Basis Frequenz | 1,6 GHz, 2,3 GHz, 2,6 GHz | |||
| Cache | 3 MB, 6 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Frequenz | 1866 / 2133 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 32 GB | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81866AD-I | |
| Grafik | ||||
| Prozessor | Intel HD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz, - | ||
| Version | 2.0, - | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz, - | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz, - | ||
| Erweiterung | ||||
| PCIe x4 | x4 Signal | 1 St, - | ||
| Mini-PCIe | Volle Bautiefe | Anzahl | 2 St | |
| mSATA Unterstützung | Ja | |||
| PCIe Schnittstellen | 2x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | E | |||
| SIM | PCIe / USB 2.0 Unterstützung | 1 St | ||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC887 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps), Intel I219 PCIe (10/100/1000 Mbps), Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | -, Intel I210AT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 1x G-LAN | |||

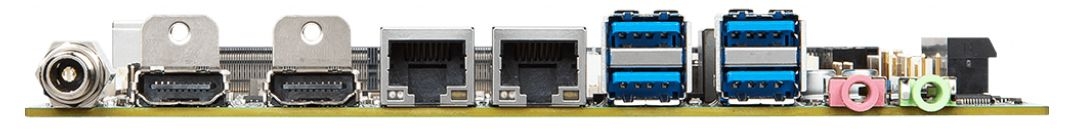

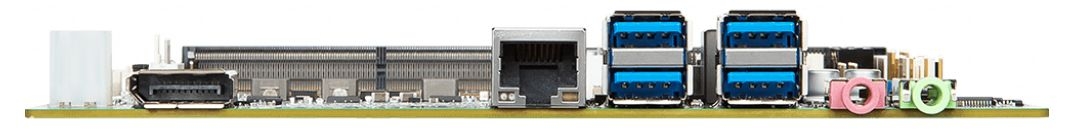

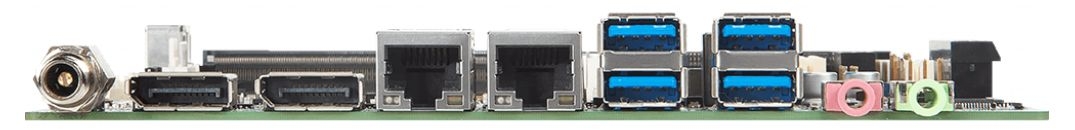

| Externe I/O | ||||
| Ethernet | RJ-45 | 1 St, 2 St | ||
| USB | USB v3.0 | 4 St | ||
| Anzeige | HDMI | 2 St, - | ||
| Displayport | 1 St, 2 St, - | |||
| Audio | Line-Out | 1 St | ||
| Mic-In | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
| Ports (Typ-A-Buchse) | 1 St, - | |||
| PS/2 | Stiftleiste | 1 St | ||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St, 4 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St, - | ||
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS | Dual Channel | |||
| LVDS Anschlüsse | 2 St | |||
| eDP (embedded Display Port) Lanes | 1 St, - | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| Audio | S/PDIF | verfügbar | ||
| Amplifier | 1 St | |||
| Serial-ATA | S-ATA R3.0 (Interface) | 2 St | ||
| Stromanschluss (onboard) | 2 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9665 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | 4 Pin Anschluss (vertikal), Hohlstecker | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 7 (32/64-bit) | -, wird unterstützt | ||
| Windows 8 (64-bit) | -, wird unterstützt | |||
| Windows 8.1 (64-bit) | -, wird unterstützt | |||
| Windows 10 (64-bit) | wird unterstützt | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
| Linux | Distribution | Fedora 25, Ubuntu 16.04 | ||
| Kernel | 4.1.15 | |||
| Unterstützte BS | Linux, Windows, Windows Embedded | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -10° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
| Lagerung | 10 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | Mini-ITX | ||
| Breite | 170 mm | |||
| Tiefe | 170 mm | |||
| Gewicht | 340 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
