Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// LGA 1151 (H4)
// [Intel C246 | Intel H310 | Intel Q370]
// 260 Pin SO-DIMM DDR4
// 1 x HDMI
// 2 x Displayport
// LVDS
// [2 | 4] x G-LAN
// 8 x USB
// 4 x USB (internal)
// [2 | 4 | 6] x Seriell I/O
// Digital I/O (16-Bit)
// 1 x PCIe x16
// 1 x Mini-PCIe
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

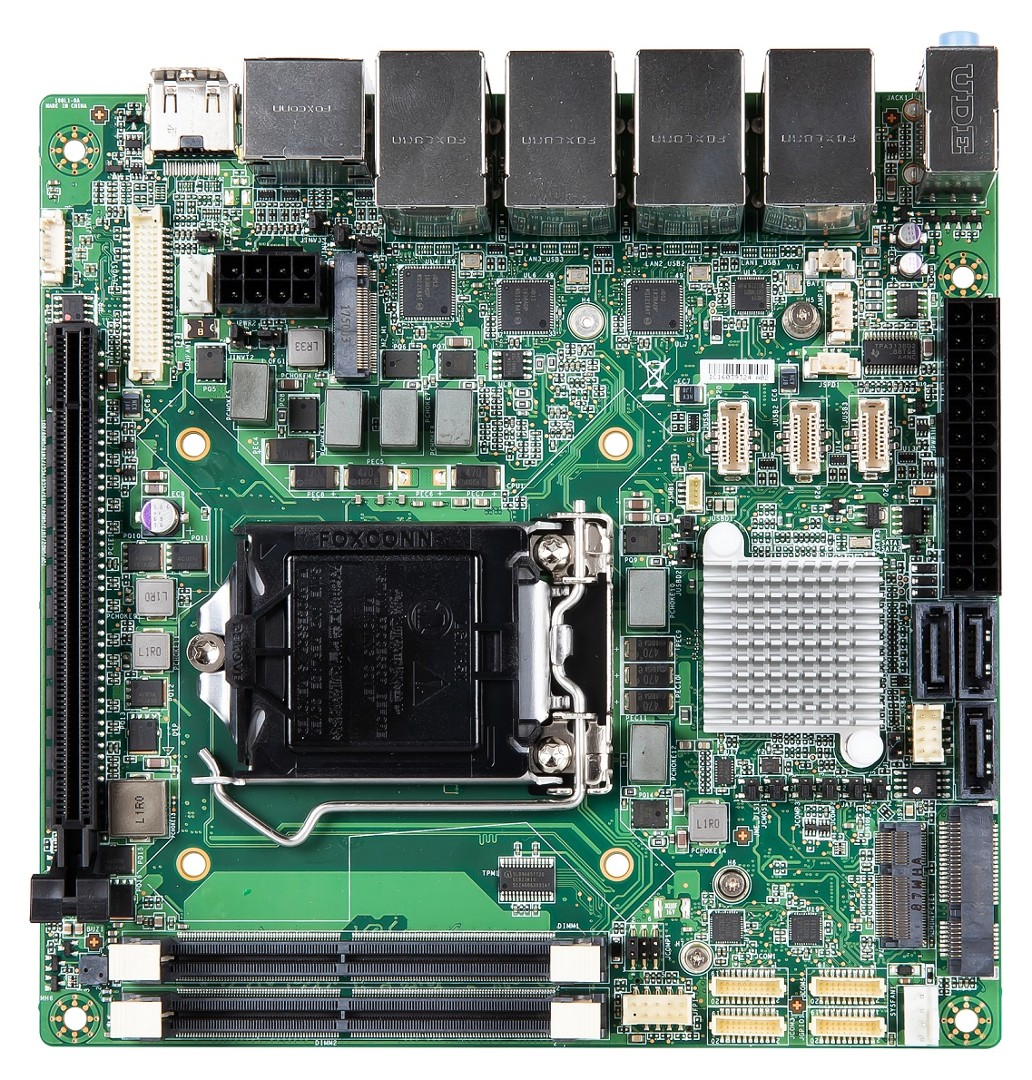

Basismodul: MSI MS-98L1
| Allgemein | ||||
| SKU / Artikelnummer | MS-98L1 | |||
| Produktgrunddaten | ||||
| Hersteller | MSI | |||
| System | ||||
| Prozessor | Serie | Intel Coffee Lake | ||
| Sockel | LGA 1151 (H4) | |||
| Thermal Design Power (TDP) | 95 W | |||
| Chipsatz | Intel C246, Intel H310, Intel Q370 | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 2400 / 2666 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | wird nicht unterstützt, wird unterstützt | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81866AD-I | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 2 Displays, 3 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 24 Hz | ||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz, - | ||
| Bits | 24 Bit | |||
| Erweiterung | ||||
| PCIe x16 | x16 Signal | Generation | 3 | |
| Anzahl | 1 St | |||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| PCIe Schnittstellen | 1x Mini-PCIe, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4, SATA III | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | CNVi, PCIe ×1 (Gen. 2), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | M | |||
| SIM | Anzahl | 1 St, - | ||
| Formfaktor (Slot) | -, Micro SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC887 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St, 3 St | |||
| Netzwerk | 1x G-LAN | |||

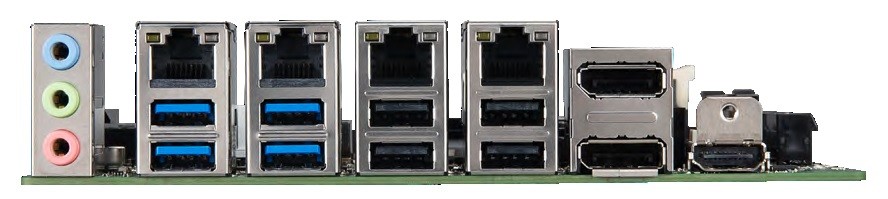

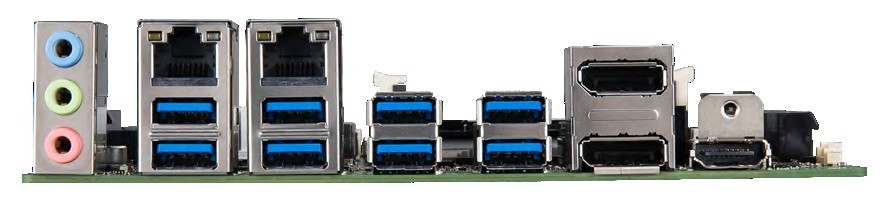

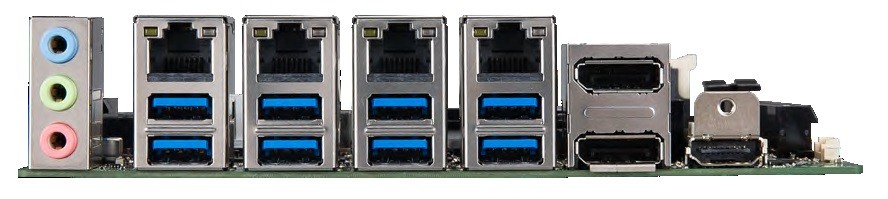

| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St, 4 St | ||
| USB | USB v2.0 | 4 St, - | ||
| USB v3.2 (Gen 1) | 4 St | |||
| USB v3.2 (Gen 2) | 4 St, - | |||
| Anzeige | HDMI | 1 St | ||
| Displayport | 2 St | |||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| USB v3.1 | Ports (2.00 mm Pitch) | 2 St | ||
| Seriell | RS-232 | Ports (Sonderanschluss) | 1 St, 3 St, 4 St | |
| RS-232 / 422 / 485 | Ports (Sonderanschluss) | 1 St, 2 St | ||
| Anzeige | LVDS | -, Dual Channel | ||
| LVDS Anschlüsse | 1 St, - | |||
| Digital I/O | Bits | 16-Bit | 1 St | |
| SMBus | 1 St | |||
| Audio | S/PDIF | verfügbar | ||
| Amplifier | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 3 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | -, wird unterstützt | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9665 TT 2.0, TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Unterstützte BS | Windows | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -10° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
| Lagerung | 10 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | Mini-ITX | ||
| Breite | 170 mm | |||
| Tiefe | 170 mm | |||
| Gewicht | 375 g, 390 g, 405 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | BSMI, RCM, VCCI | |||
