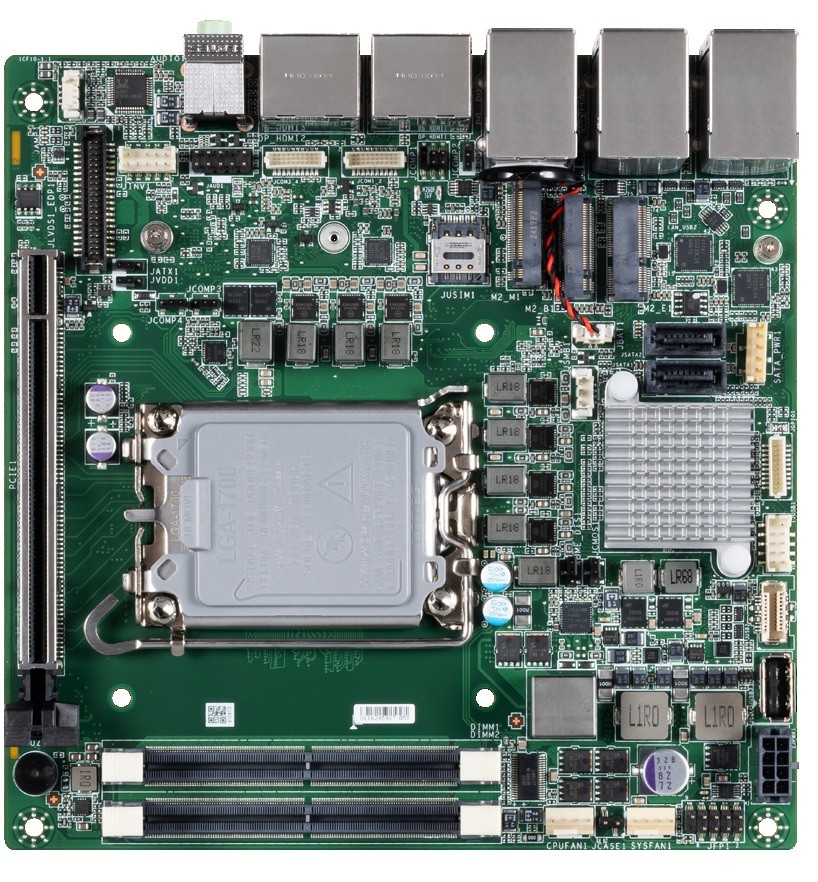

Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// LGA 1700 (H6)
// [Intel H610E | Intel Q670E | Intel R680E]
// 262 Pin SO-DIMM DDR5
// LVDS
// 3 x G-LAN (Back side)
// 6 x USB (Back side)
// [3 | 5] x USB (internal)
// 4 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x PCIe x16
// Power Supply DC 8~48V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: MSI MS-CF10
Allgemein | ||||
SKU / Artikelnummer | MS-CF10 | |||
Produktgrunddaten | ||||
Hersteller | MSI | |||
Produkt-ID | 911-CF10-001, 911-CF10-002, 911-CF10-003 | |||
System | ||||
Prozessor | Serie | Intel Alder Lake / Raptor Lake | ||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel H610E, Intel Q670E, Intel R680E | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 5200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird nicht unterstützt, wird unterstützt | |||
BIOS | AMI UEFI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81966AB-I | |
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays, 4 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.0 | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4a | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | Chrontel CH7513A-BF | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 4), SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | 5G / Storage Module, PCIe ×1 (Gen. 3), USB 2.0, USB 3.2 Gen2 | |||
Unterstütze Abmaße | 3042 | |||
M.2 Key IDs | E, M | |||
SIM | Anzahl | 1 St, - | ||
Formfaktor (Slot) | -, Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC897 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps), Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St, 3 St | |||
Controller | Chipsatz | -, Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 2 St, - | |||
Active Management Technology (AMT) Version | 16.0 | |||
Externe I/O (Rückseite) | ||||

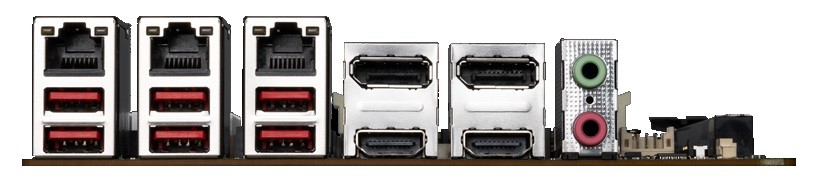

Anzeige | HDMI | 2 St | ||
Displayport | 2 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 3 St | ||
USB | USB v2.0 | 2 St, - | ||
USB v3.2 (Gen 1) | 2 St, - | |||
USB v3.2 (Gen 2) | 2 St, 6 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Ports (Typ-A-Buchse) | 1 St | |||
USB v3.2 | Key-A Header (20-Pin) | 2 St, - | ||
Seriell | RS-232 / 422 / 485 | Ports (Sonderanschluss) | 4 St | |
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
LVDS Anschlüsse | 1 St | |||
eDP (embedded Display Port) Lanes | 1 St | |||
Digital I/O | Bits | 16-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Amplifier | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1/5 | -, wird unterstützt | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9672 VU 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 8~48V | |||
Anschluss | ATX Anschlussstecker | |||
Stromversorgung - Eingang | DC: 8~48V | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Lagerung | 10 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Gewicht | 420 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | BSMI, RCM, UKCA, VCCI | |||
RoHS konform | Ja |
