Pico-ITX Mainboards
// Pico-ITX Industrie-Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// SoC (System-On-Chip)
// [4 GB | 8 GB]
// LVDS
// 2 x G-LAN (Rückseite)
// 2 x USB (Rückseite)
// 2 x USB (intern)
// 2 x Seriell I/O
// [32 GB | 64 GB] eMMC
// Digital I/O (16-Bit)
// 1 x Mini-PCIe
// Stromversorgung DC 12V / 24V (per Jumper)
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

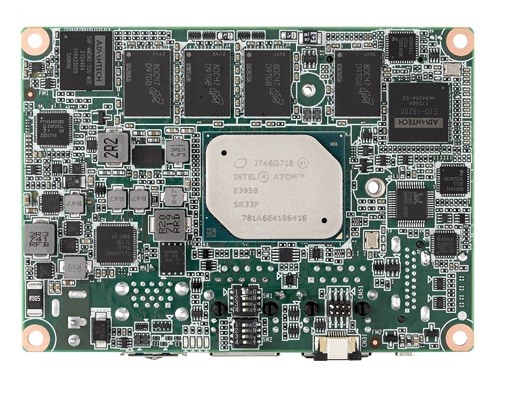

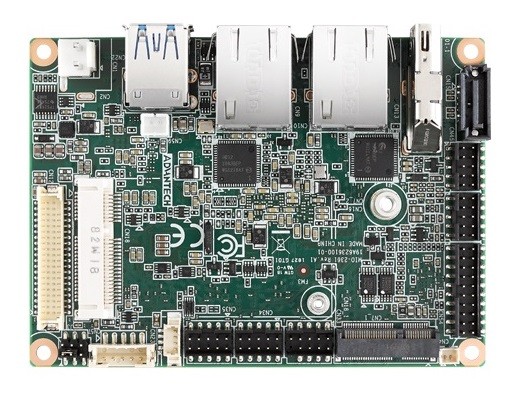

Basismodul: Advantech MIO-2361
Allgemein | ||||
SKU / Artikelnummer | MIO-2361 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Apollo Lake | |||
Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
Max. Turbo-Taktfrequenz | 1,8 GHz, 2 GHz, 2,4 GHz, 2,5 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Frequenz | 2400 MHz | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB, 8 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB, 64 GB | ||
BIOS | AMI UEFI 64 Mbit SPI | |||
Storage | Embedded MultiMedia Card (eMMC) 32 GB, Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
Version | 1.4b | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 48 Bit | |||
Bridge | NXP PTN3460 | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | -, Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

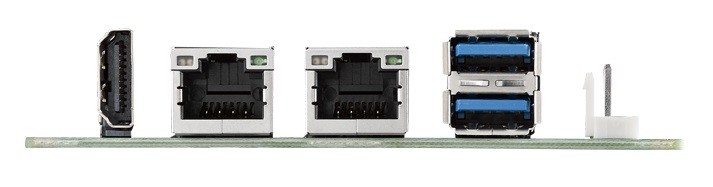

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | |
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 16-Bit | 1 St | |
SMBus | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V / 24V (per Jumper) | |||
Anschluss | 2 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 12V / 24V (per Jumper) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Pico-ITX | ||
Breite | 100 mm | |||
Tiefe | 72 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
