Pico-ITX Mainboards
// Pico-ITX Industrie-Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// 204 Pin SO-DIMM DDR3L
// LVDS
// 1 x G-LAN
// 2 x USB
// 2 x USB (internal)
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

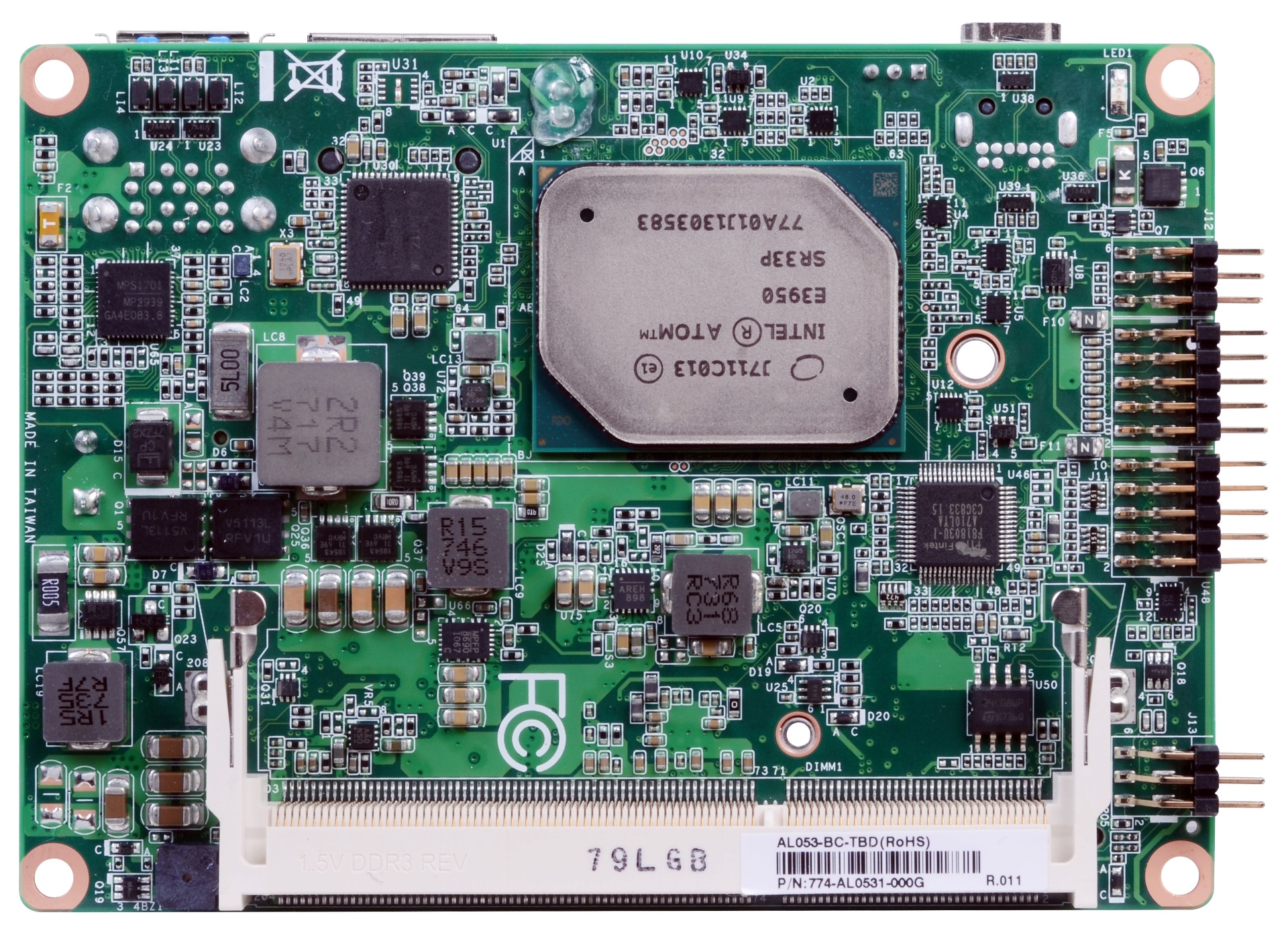

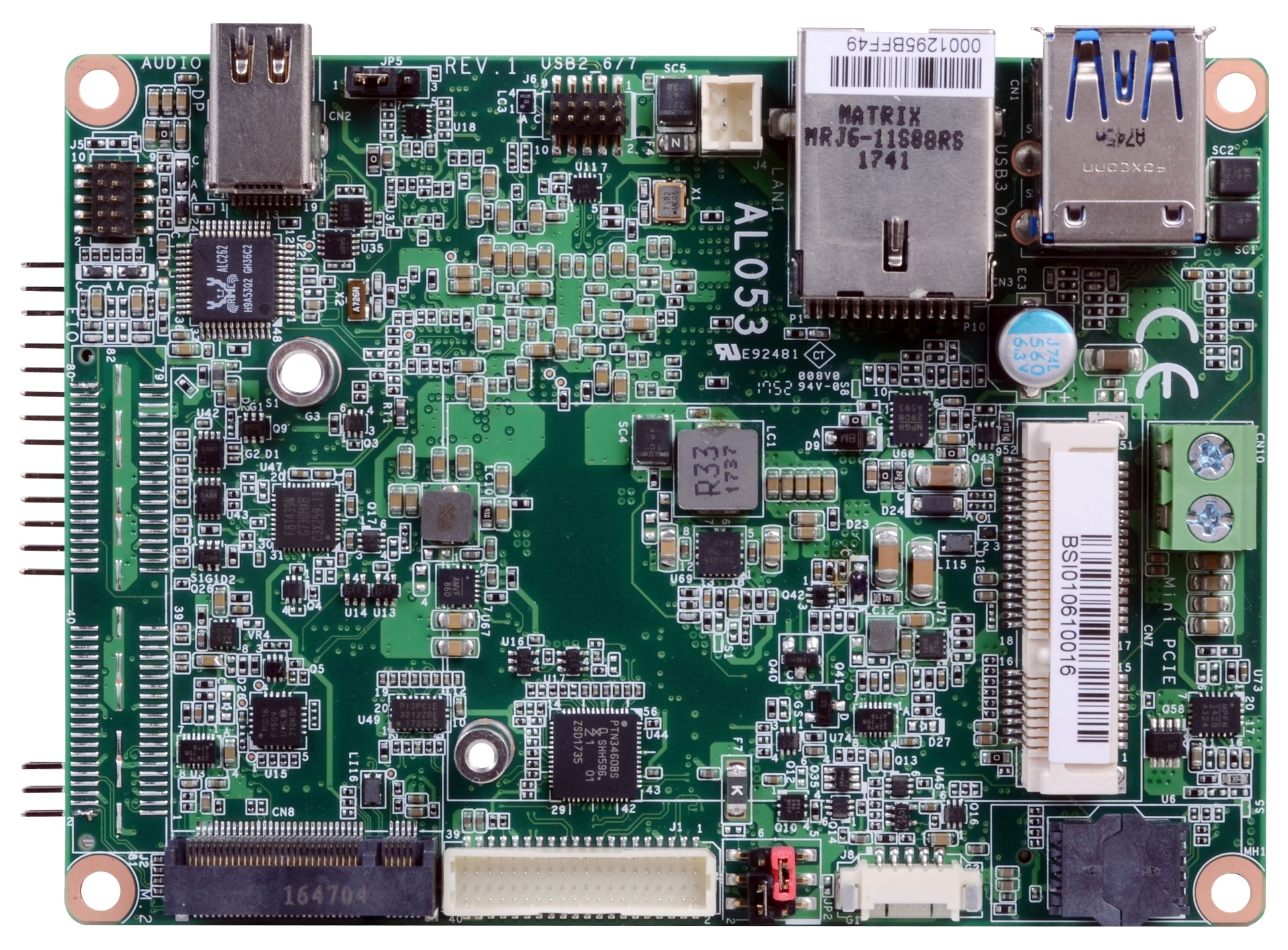

Basismodul: DFI AL053
Allgemein | ||||
SKU / Artikelnummer | AL053 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-AL0531-000G, 770-AL0531-100G, 770-AL0531-200G, 770-AL0531-300G, 770-AL0531-400G, 770-AL0531-500G, 770-AL0531-600G, 770-AL0531-700G, 770-AL0531-800G, 770-AL0531-900G, 770-AL0531-A00G | |||
System | ||||
Prozessor | Serie | Intel Apollo Lake | ||
Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
Max. Turbo-Taktfrequenz | 1,8 GHz, 2 GHz, 2,4 GHz, 2,5 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
DIMM Datarate | 1866 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
BIOS | Insyde SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Leistungsmerkmal | Unterstützung | DirectX 11.1, OpenCL 1.2, OpenGL 3.0, OpenGL 4.2 | ||
HW Decode | AVC / H.264, HEVC / H.265, MPEG2, MPEG4, VC1 / WMV9, VP 8 | |||
HW Encode | AVC / H.264, MPEG2, MPEG4 | |||
Bildschirme (Multidisplay) | 2 Displays | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×2, SATA III, USB 2.0 | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC262-VC2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Externe I/O | ||||
Ethernet | RJ-45 | 1 St | ||
USB | USB v3.0 | 2 St | ||
Anzeige | Mini-DP++ | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (1.27 mm Pitch) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 1 St | |
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows Embedded | WES7E | wird unterstützt | ||
WES7P | wird unterstützt | |||
WINCE7 | wird unterstützt | |||
Linux | Distribution | Ubuntu 16.04 | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -20° bis 70°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Pico-ITX | ||
Breite | 72 mm | |||
Tiefe | 100 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q1/2018 | |||
Voraussichtlich bis | Q4/2031 | |||
Herstellergarantie | ||||
Herstellergarantie | 3 Jahre |
