Pico-ITX Mainboards
// Pico-ITX Industrie-Mainboards
// [Intel Atom x6211E | Intel Atom x6214RE | Intel Atom x6413E | Intel Atom x6416RE | Intel Atom x6425E | Intel Atom x6425RE | Intel Celeron J6412 | Intel Celeron N6210]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

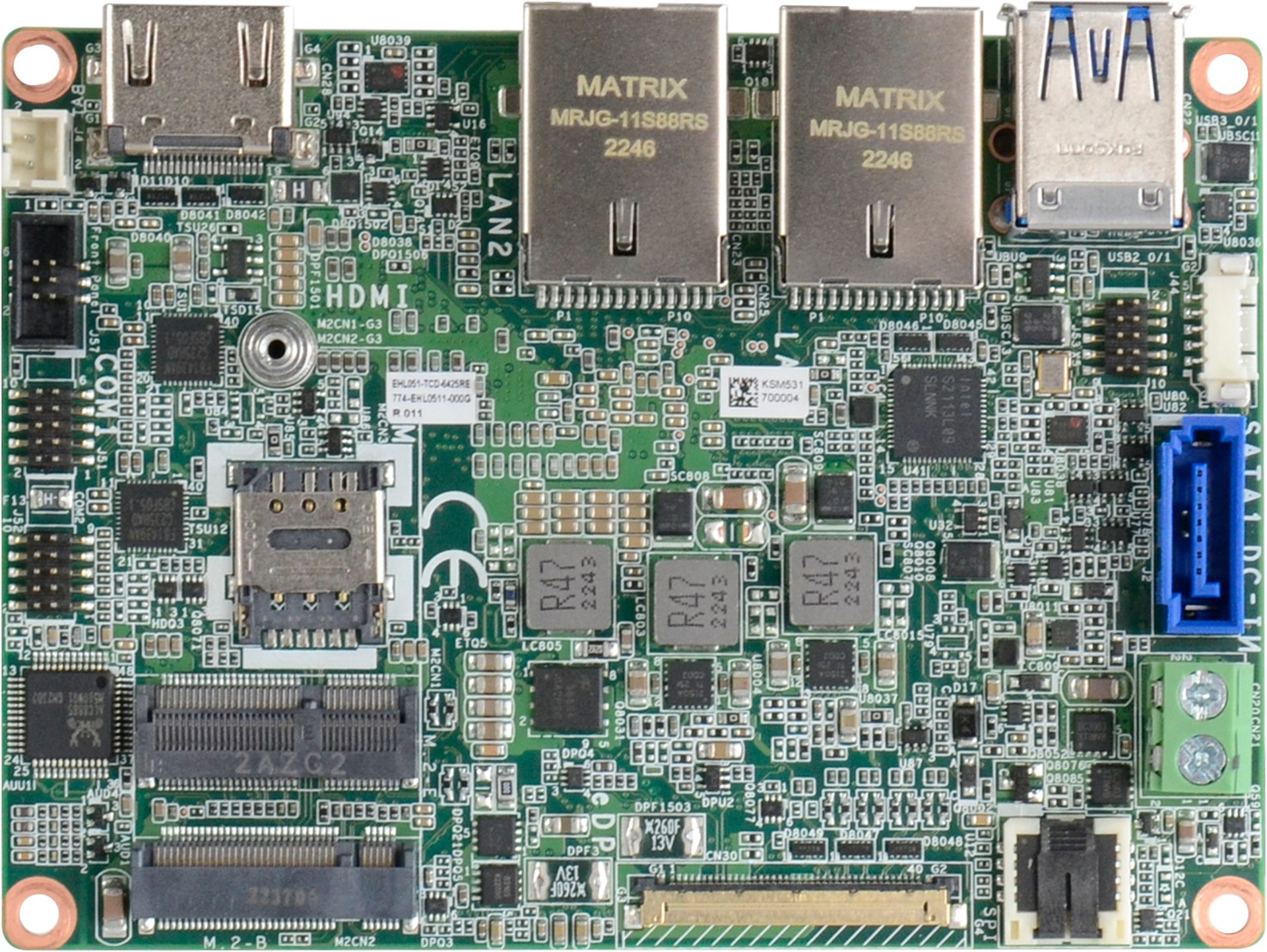

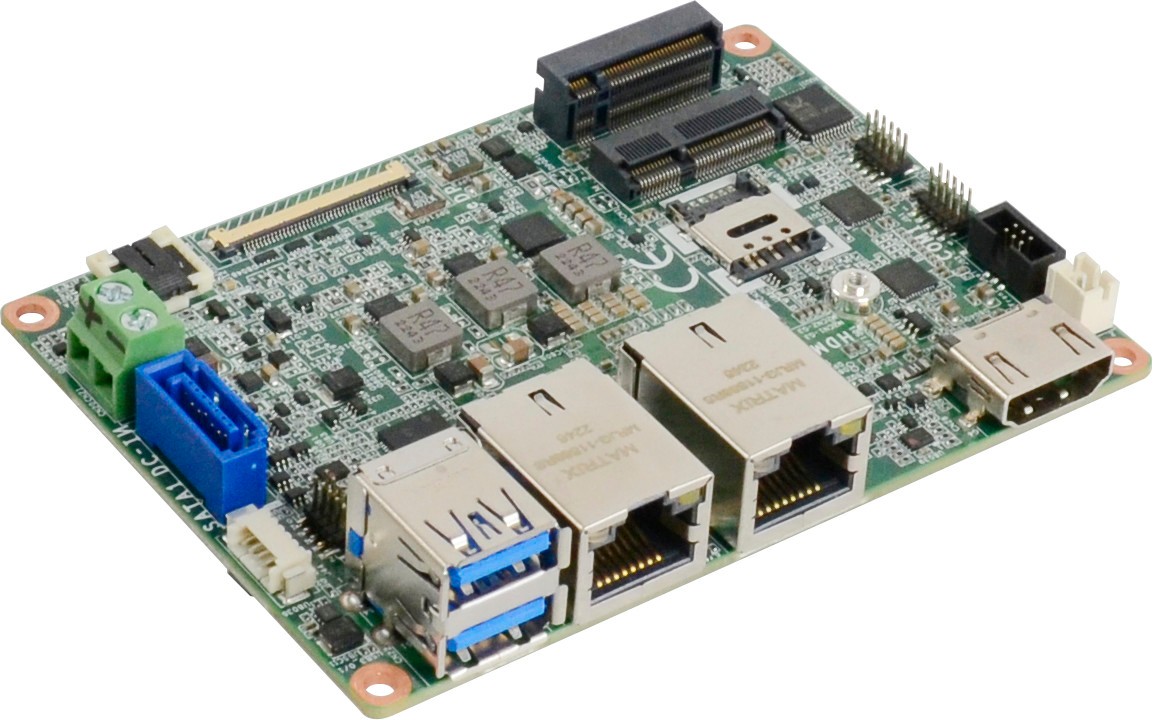

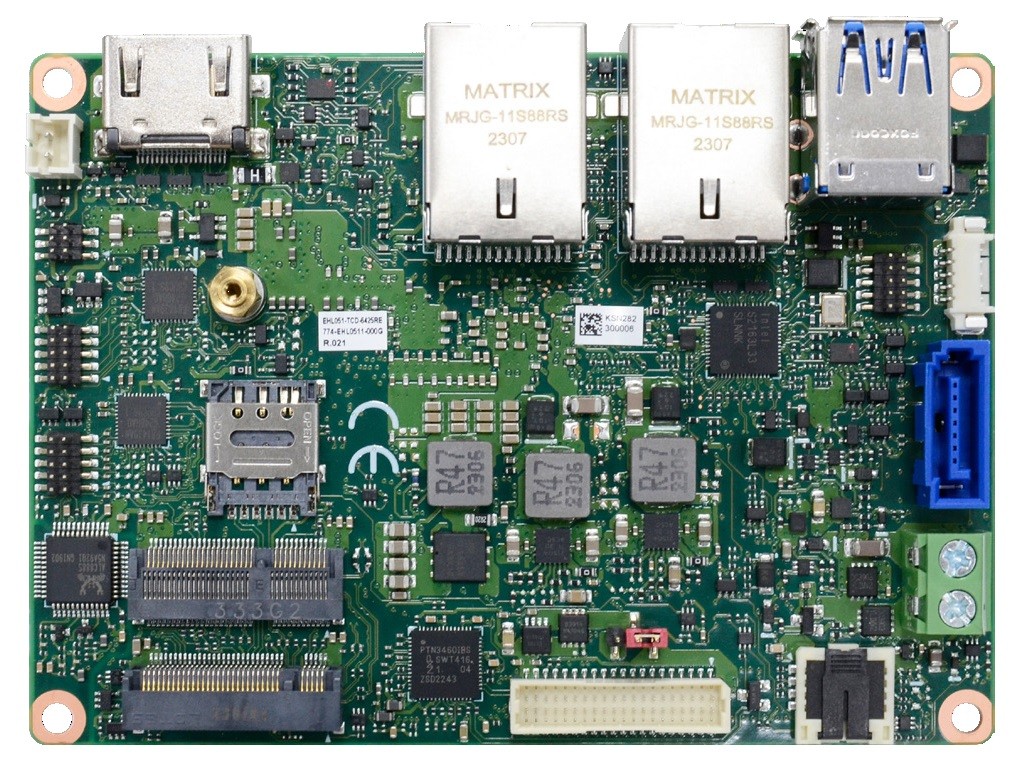

Basismodul: DFI EHL051
| Allgemein | ||||
| SKU / Artikelnummer | EHL051 | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 770-EHL0511-000G, 770-EHL0511-100G, 770-EHL0511-200G, 770-EHL0511-300G, 770-EHL0511-400G, 770-EHL0511-500G, 770-EHL0511-600G, 770-EHL0511-700G | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Elkhart Lake | |||
| Nummer | Intel Atom x6211E, Intel Atom x6214RE, Intel Atom x6413E, Intel Atom x6416RE, Intel Atom x6425E, Intel Atom x6425RE, Intel Celeron J6412, Intel Celeron N6210 | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St | |||
| Sockel | BGA 1493 | |||
| Basis Frequenz | 1,2 GHz, 1,3 GHz, 1,4 GHz, 1,5 GHz, 1,7 GHz, 1,9 GHz, 2 GHz | |||
| Max. Turbo-Taktfrequenz | 2,6 GHz, 3 GHz, - | |||
| Cache | 1,5 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9 W, 10 W, 12 W | |||
| Lithographie | 10 nm | |||
| Chipsatz | SoC (System-On-Chip) | |||

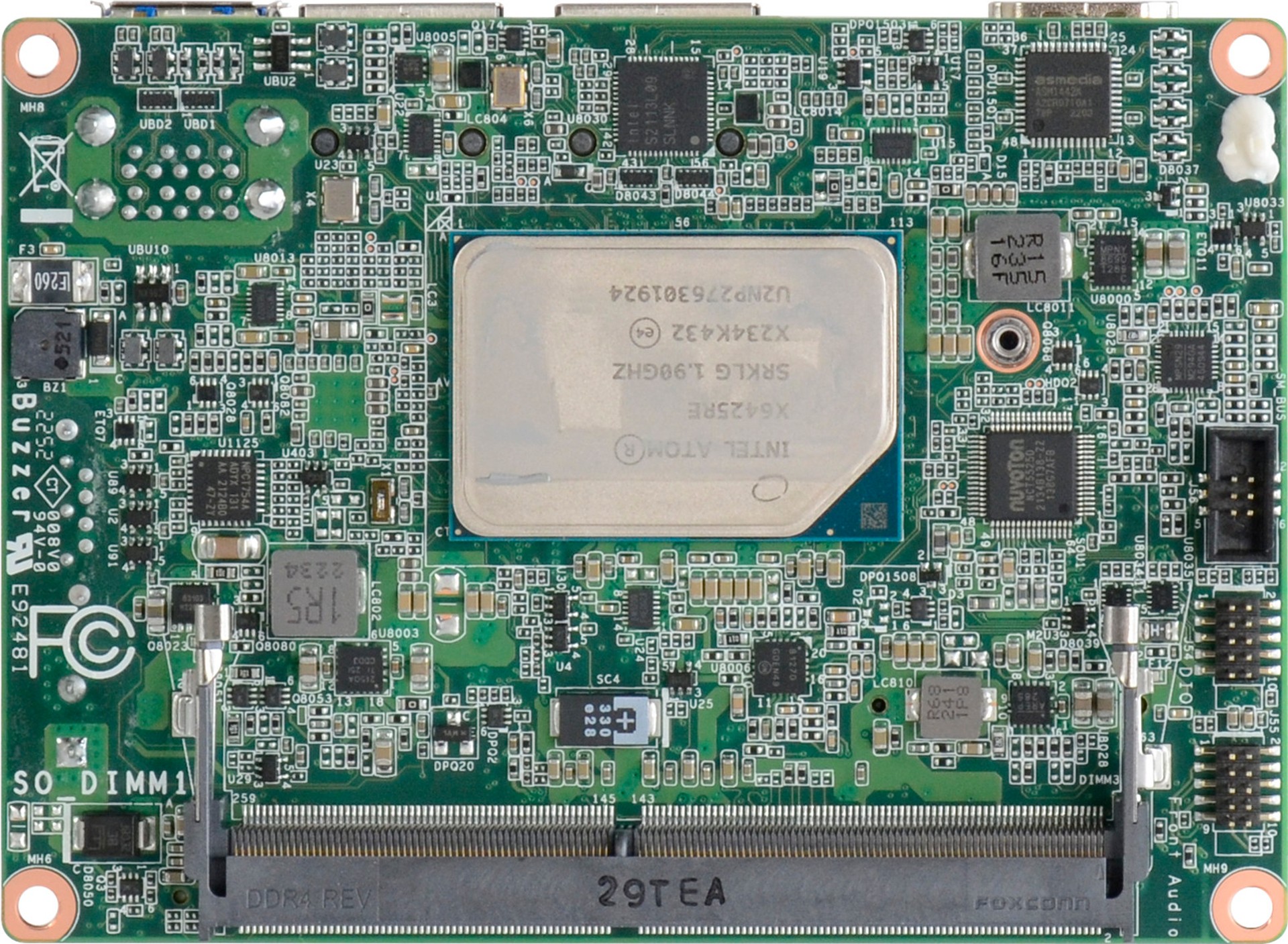

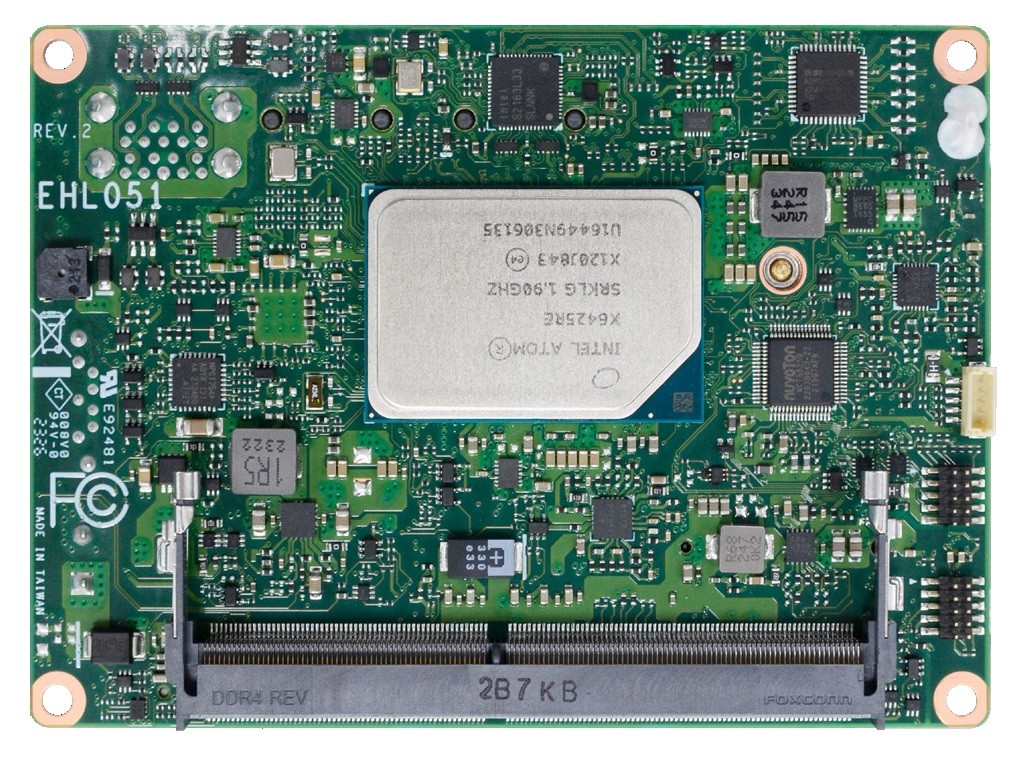

| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 3200 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 32 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT5525D | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 24 Hz | ||
| Version | 1.4 | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | NXP PTN3460 | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), SATA III, USB 2.0 | |||
| Unterstütze Abmaße | 2242, 3042 | |||
| M.2 Key IDs | B, E | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

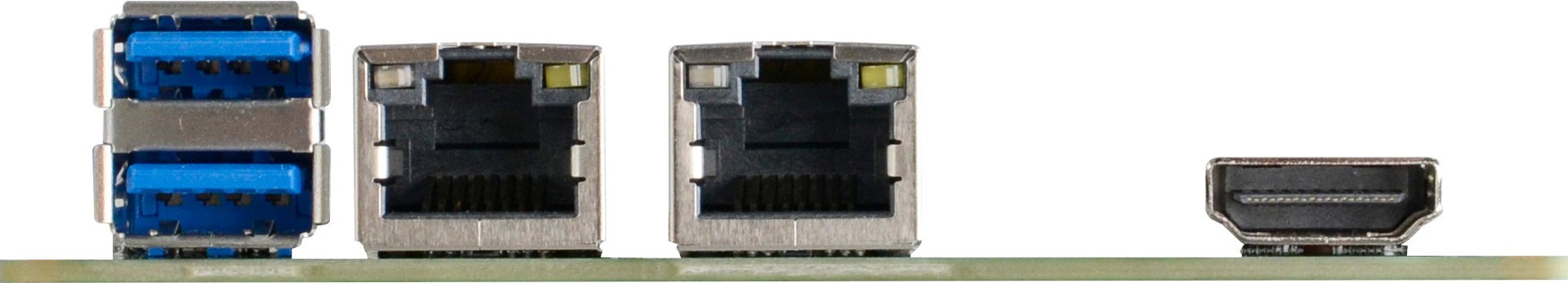

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.2 (Gen 2) | 2 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (1.27 mm Pitch) | 2 St | |
| Seriell | RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 1 St | |
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS | Dual Channel | |||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | 2 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -5° bis 65°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Lagerung | 5 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | Pico-ITX | ||
| Breite | 100 mm | |||
| Tiefe | 72 mm | |||
| Höhe | 24,6 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | KC, UKCA | |||
| RoHS konform | Ja | |||
