Pico-ITX Mainboards
// Pico-ITX Industrie-Mainboards
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 1 x HDMI
// 1 x DP++
// 2 x G-LAN
// 2 x USB
// 2 x USB (internal)
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

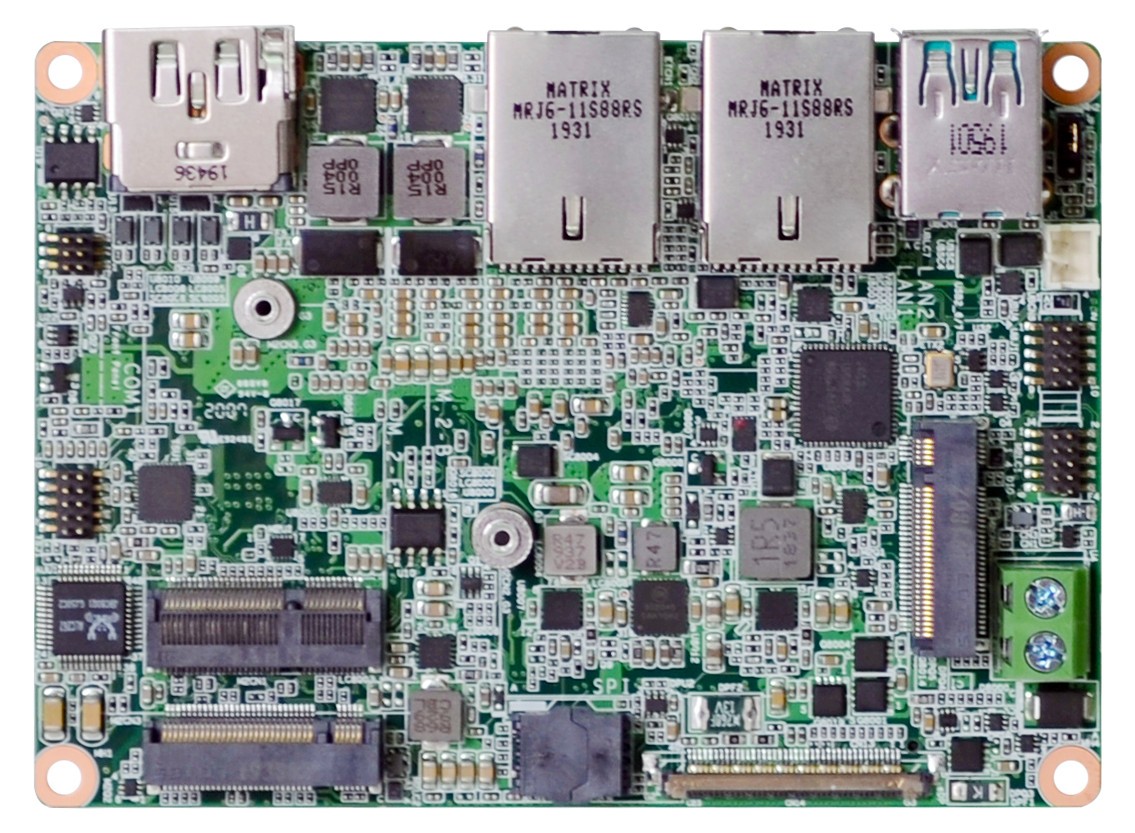

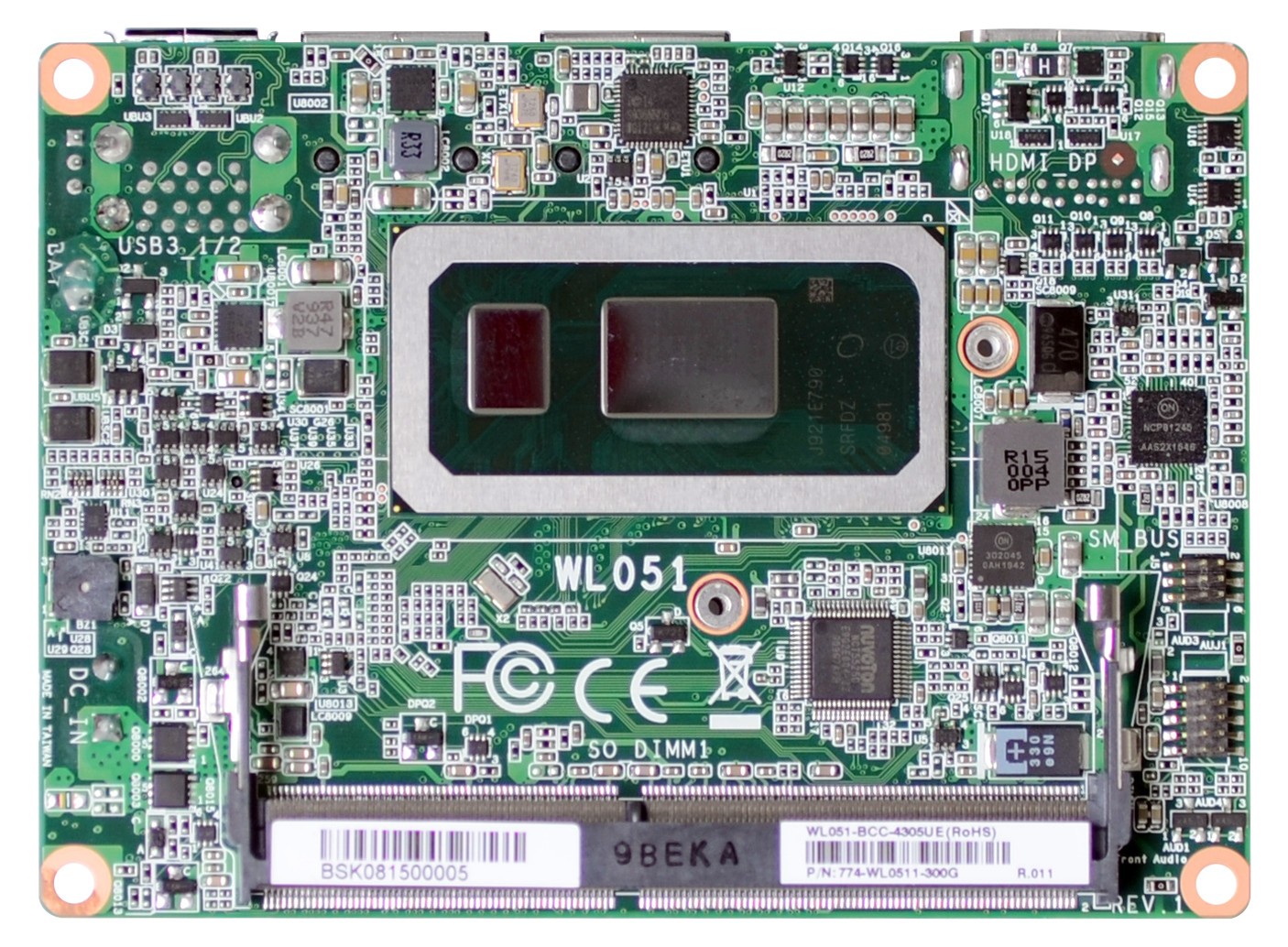

Basismodul: DFI WL051
Allgemein | ||||
SKU / Artikelnummer | WL051 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-WL0512-000G, 770-WL0512-100G, 770-WL0512-200G, 770-WL0512-300G, 770-WL0512-400G, 770-WL0512-500G, 770-WL0512-600G, 770-WL0512-700G | |||
System | ||||
Prozessor | Serie | Intel Whiskey Lake | ||
Nummer | Intel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St, 8 St | |||
Sockel | BGA 1528 | |||
Basis Frequenz | 1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz | |||
Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz, - | |||
Cache | 2 MB, 6 MB, 8 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Frequenz | 2133 / 2400 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
BIOS | AMI SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 620 | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 4.5 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
DDI (Digital Display Interfaces) | DP++ | Maximale Auflösung | 4096 x 2304 bei 60 Hz | |
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×2, USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 2), SATA III, USB 2.0, USB 3.1 Gen1 | |||
Unterstütze Abmaße | 2242, 3042 | |||
Slot 3 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 2), SATA III, USB 2.0, USB 3.1 Gen1 | |||
Unterstütze Abmaße | 2242, 3042 | |||
M.2 Key IDs | B, E | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

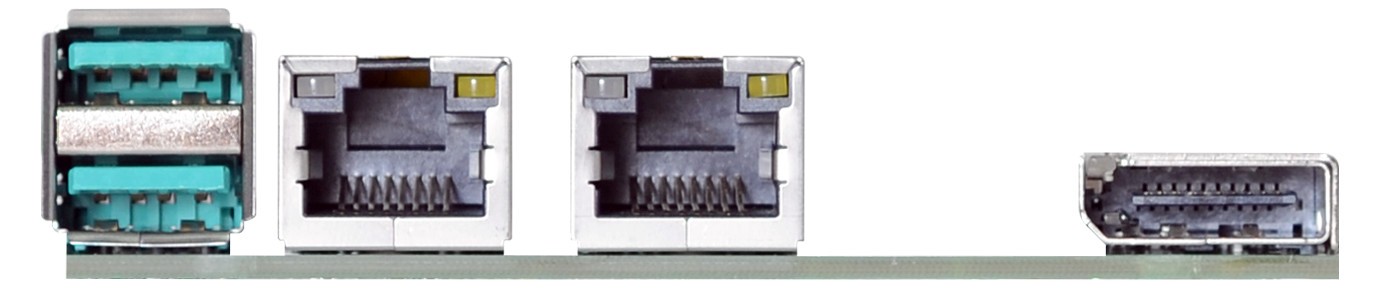

Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.1 Gen. 2 | 2 St | ||
Anzeige | HDMI | 1 St | ||
DP++ | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (1.27 mm Pitch) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 1 St | |
Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12V | |||
Stromaufnahme Typisch | 6,12 W | |||
Stromaufnahme Typisch | Intel Core i7-8665UE:12V (0,51A) | |||
Stromaufnahme Maximal | 27,12 W | |||
Stromaufnahme Maximal | Intel Core i7-8665UE:12V (2,26A) | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Unterstützte BS | Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -30° bis 80°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Pico-ITX | ||
Breite | 72 mm | |||
Tiefe | 100 mm | |||
MTBF | MTBF 25°C | 564.107 h | ||
MTBF 45°C | 402.731 h | |||
MTBF 60°C | 293.920 h | |||
Berechnungsmodell | Telcordia Issue 4 | |||
Umgebung | GB, GC – Ground Benign, Controlled | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
