Pico-ITX Mainboards
// Pico-ITX Industrie-Mainboards
// [NXP i.MX 8M Dual | NXP i.MX 8M Dual-I | NXP i.MX 8M Quad | NXP i.MX 8M Quad-I]
// [2 GB | 4 GB]
// 2 x G-LAN (Rückseite)
// 2 x USB (Rückseite)
// 1 x USB
// 1 x USB (intern)
// [8 GB | 16 GB] eMMC
// Digital I/O (8-Bit)
// Stromversorgung DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

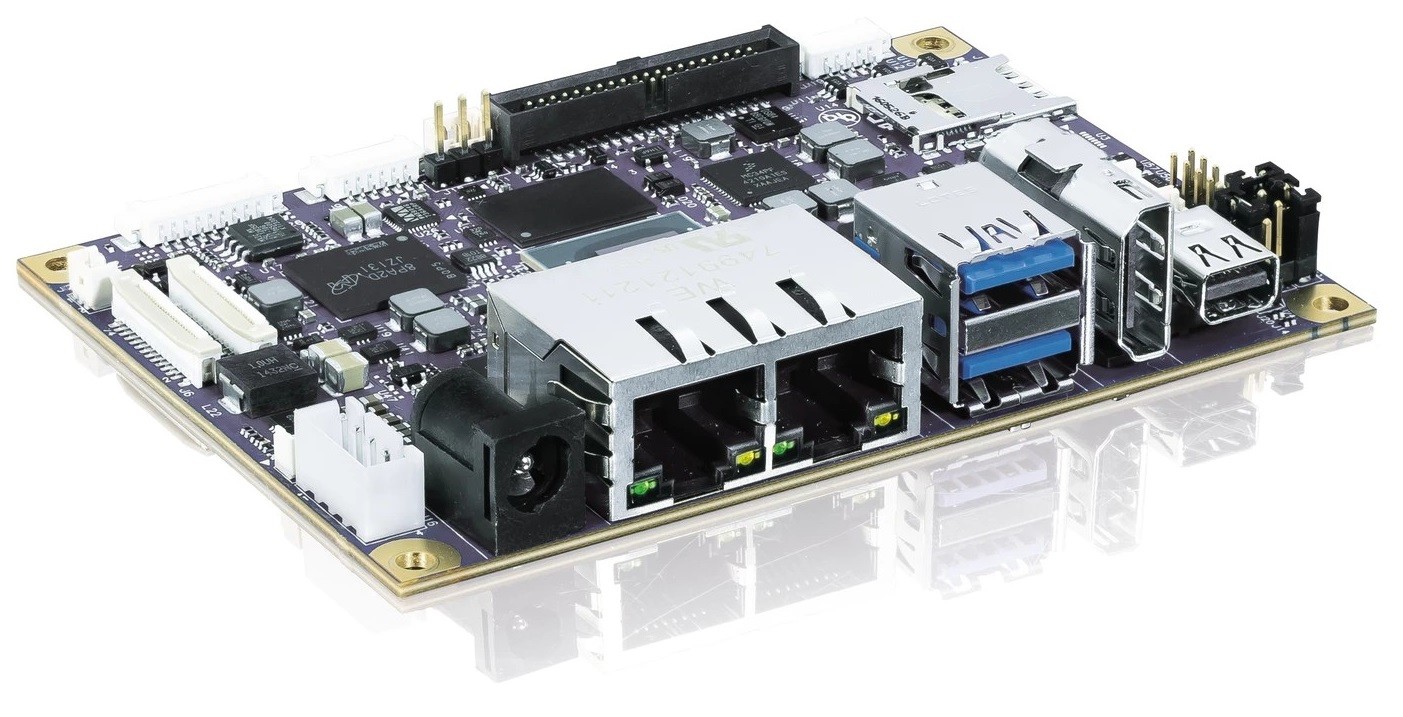

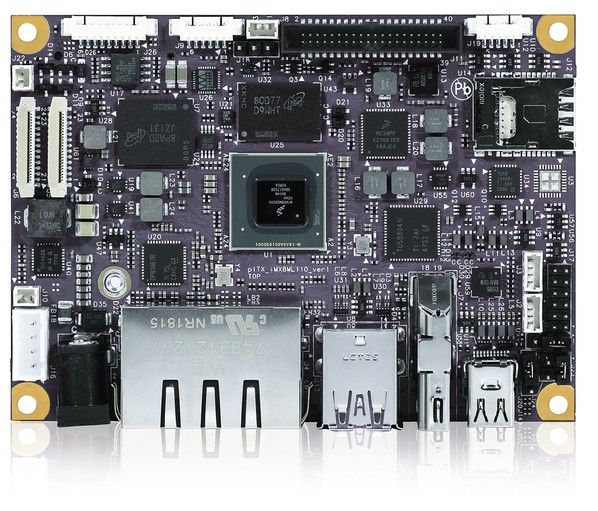

Basismodul: Kontron pITX-iMX8M
Allgemein | ||||
SKU / Artikelnummer | pITX-iMX8M | |||
Produktgrunddaten | ||||
Hersteller | Kontron | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | ARM Cortex-A53 | |||
Nummer | NXP i.MX 8M Dual, NXP i.MX 8M Dual-I, NXP i.MX 8M Quad, NXP i.MX 8M Quad-I | |||
CPU Kerne | 2 St, 4 St | |||
Basis Frequenz | 1,3 GHz, 1,5 GHz | |||
Cache | 1 MB | |||
Speicher | Memory Type | DDR4 | ||
Frequenz | 3200 MHz | |||
Speicher onBoard | 2 GB, 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 8 GB, 16 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 8 GB, Embedded MultiMedia Card (eMMC) 16 GB | |||
Grafik | ||||
Leistungsmerkmal | Unterstützung | OpenCL 1.2, OpenGL 3.0, OpenGL 3.1, Vulkan 1.0 | ||
Performance | TFLOPS (FP32) | 0,031 | ||
HDMI | Version | 2.0a | ||
LVDS | Bits | 24 Bit, - | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×1 (Gen. 2) | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | Micro-SD | |||
Audio | ||||
Chipsatz | Cirrus WM8904 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Integriert in i.MX8 | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O | ||||
USB | USBOTG (USB On-The-Go) | 1 St | ||
Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Mini DP | 1 St, - | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 1 St | |
Anzeige | LVDS | -, Dual Channel | ||
LVDS Anschlüsse | 1 St, - | |||
Digital I/O | Bits | 8-Bit | 1 St | |
LPC | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
I²C | 1 St | |||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
Anschluss | 24 Pin FCP 0.5 mm | |||
Anzahl | 1 St | |||
Lanes | 4 St | |||
Kamera Eingang 2 | MIPI-CSI (Camera Serial Interface) | 1 St | ||
Anschluss | 24 Pin FCP 0.5 mm | |||
Anzahl | 1 St | |||
Lanes | 4 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-In | 1 St | |||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
S/PDIF | verfügbar | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9670 VQ 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 12V | |
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | Lithium 3V (210 mAH) | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 IoT Core | wird unterstützt | ||
Linux | Distribution | Yocto 3.0 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Pico-ITX | ||
Breite | 100 mm | |||
Tiefe | 72 mm | |||
Höhe | 1,6 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | EN 55032, EN 61000-6-2, EN 62368-1, REACH | |||
RoHS konform | Ja |
