Pico-ITX Mainboards
// Pico-ITX Industrie-Mainboards
// [Intel Atom x7425E | Intel Atom X7433RE | Intel N97]
// SoC (System-On-Chip)
// [4 GB | 8 GB | 16 GB]
// LVDS
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

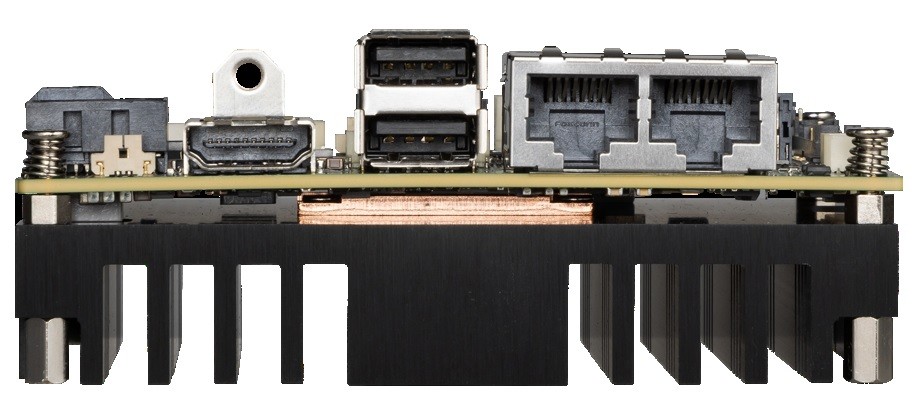

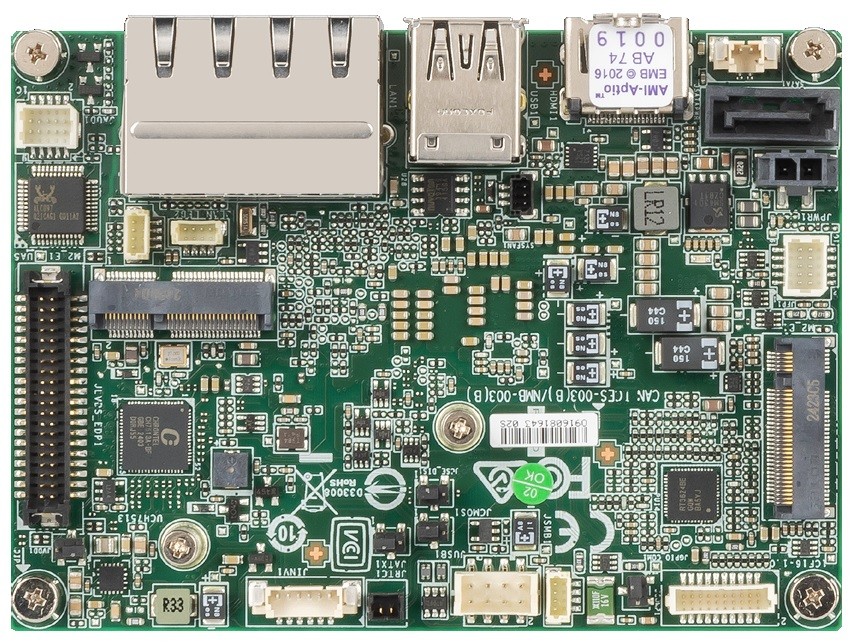

Basismodul: MSI MS-CF16
Allgemein | ||||
SKU / Artikelnummer | MS-CF16 | |||
Produktgrunddaten | ||||
Hersteller | MSI | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Alder Lake, Intel Amston Lake | |||
Nummer | Intel Atom x7425E, Intel Atom X7433RE, Intel N97 | |||
CPU Kerne | 4 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,4 GHz, 3,6 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 9 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR5 | ||
Frequenz | 4800 MHz | |||
Maximaler Ausbau | 16 GB | |||
Speicher onBoard | 4 GB, 8 GB, 16 GB | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81966AB-I | |
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
eDP (embedded Display Port) | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 3), SATA III, USB 2.0, USB 3.2 Gen2 | |||
Unterstütze Abmaße | 2242, 3042 | |||
M.2 Key IDs | B, E | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC897 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Realtek RTL8125BG-CG (10/100/1000/2500 Mbps), Realtek RTL8125BI-CG (10/100/1000/2500 Mbps) | |
Controller | Chipsatz | Realtek RTL8111K-CG (10/100/1000 Mbps), Realtek RTL8111KI-CG (10/100/1000 Mbps) | ||
Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 1 St | ||
USB v3.2 (Gen 2) | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | |
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS Anschlüsse | 1 St | |||
eDP (embedded Display Port) Lanes | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9672 VU 2.0, Infineon SLB 9672 XU 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 2 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 12V | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C, -40° bis 70°C | ||
Lagerung | -20° bis 80°C, -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Pico-ITX | ||
Breite | 101 mm | |||
Tiefe | 73 mm | |||
Gewicht | 300 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | BSMI, International Certificate (IC), RCM, UKCA, VCCI | |||
RoHS konform | Ja |
