Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Rückseite)
// 4 x USB (Rückseite)
// 4 x USB (intern)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// Stromversorgung DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

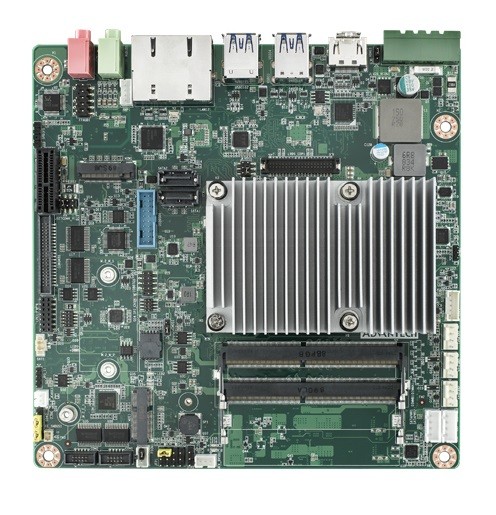

Basismodul: Advantech AIMB-233
Allgemein | ||||
SKU / Artikelnummer | AIMB-233 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Whiskey Lake | |||
Nummer | Intel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St, 8 St | |||
Sockel | BGA 1528 | |||
Basis Frequenz | 1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz | |||
Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz, - | |||
Cache | 2 MB, 4 MB, 6 MB, 8 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 2400 MT/s | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI UEFI 32 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT5121VG-I | |
Grafik | ||||
Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 620 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0a | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 48 Bit | |||
Bridge | Chrontel CH7511B | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4, SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

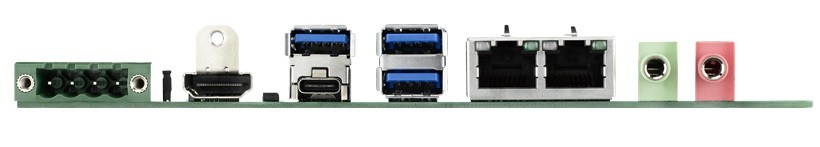

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DP USB-C | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.1 Gen. 2 | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
USB v3.0 | Ports (2.54 mm Pitch) | 2 St | ||
Seriell | RS-232 | Ports (Sonderanschluss) | 5 St | |
RS-232 / 422 / 485 | Ports (Sonderanschluss) | 1 St | ||
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
Audio | Anschluss | 2.00 mm Pitch | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Stromanschluss (onboard) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 4 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -20° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
