Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [- | Intel Core i3-12100E]
// Intel H610E
// 262 Pin SO-DIMM DDR5
// [512 GB | -] SSD (NVMe)
// 2 x G-LAN (Rückseite)
// 4 x USB (Rückseite)
// 2 x USB (intern)
// 2 x Seriell I/O
// Stromversorgung DC 19~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

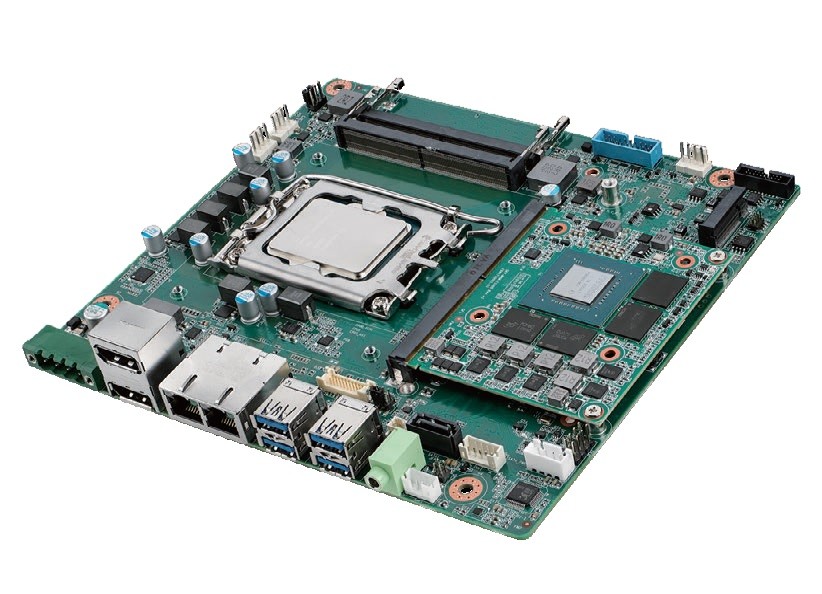

Basismodul: Advantech AIMB-288E
Allgemein | ||||
SKU / Artikelnummer | AIMB-288E | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Alder Lake / Raptor Lake | ||
Nummer | -, Intel Core i3-12100E | |||
CPU Kerne | 4 St, - | |||
Threads | 8 St, - | |||
Sockel | LGA 1700 (H6) | |||
Max. Turbo-Taktfrequenz | 4,2 GHz, - | |||
Performance-core Grundtaktfrequenz | 3,2 GHz, - | |||
Performance-core Max Turbo Frequenz | 4,2 GHz, - | |||
Cache | 12 MB, - | |||
Thermal Design Power (TDP) | 60 W, - | |||
Chipsatz | Intel H610E | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 5600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 96 GB | |||
ECC | wird nicht unterstützt | |||
Speicher onBoard | 32 GB, - | |||
Storage | Solid State Drive (NVMe SSD) | 512 GB, - | ||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
Grafik | ||||
Prozessor | Intel Arc A370M, Nvidia Quadro T1000, Nvidia RTX A500, Nvidia RTX A1000, Nvidia RTX A2000 | |||
Speicher | Speicherkapazität | 4 GB (GDDR6), 8 GB (GDDR6) | ||
Performance | TFLOPS (FP32) | 2,6, 4,198, 6,54, 8,25 | ||
Bildschirme (Multidisplay) | 3 Displays | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4a | |||
Dual Mode | Ja (DP++) | |||
eDP (embedded Display Port) | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4, SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, PCIe ×1 (Gen. 3), SATA III, USB 2.0, USB 3.0 | |||
Unterstütze Abmaße | 2242, 3042 | |||
M.2 Key IDs | B, M | |||
Mobile PCI Express Module (MXM) | wird unterstützt | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

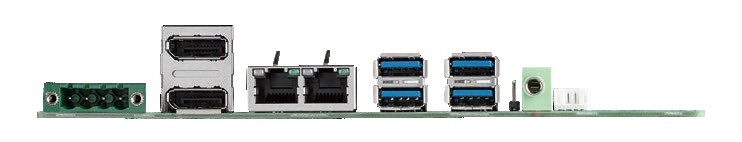

Externe I/O (Rückseite) | ||||
Anzeige | DP++ | 2 St | ||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 4 St | ||
Interne I/O | ||||
USB | USB v3.2 | Key-A Header (20-Pin) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 2 St | |
Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
SMBus | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 19~24V | |||
Anschluss | 4 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 19~24V | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux, Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 190 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
