Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// NXP i.MX 7Dual
// [1 GB | 2 GB]
// 1 x G-LAN (Rückseite)
// 3 x USB (Rückseite)
// 4 x USB (intern)
// 8 GB eMMC
// Digital I/O (8-Bit)
// Stromversorgung DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

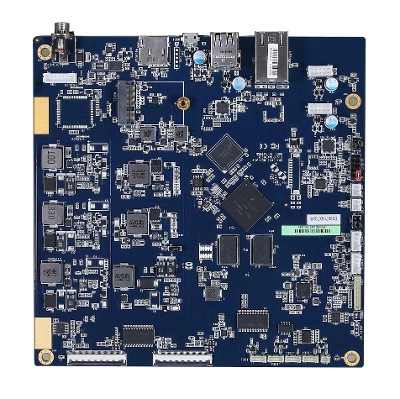

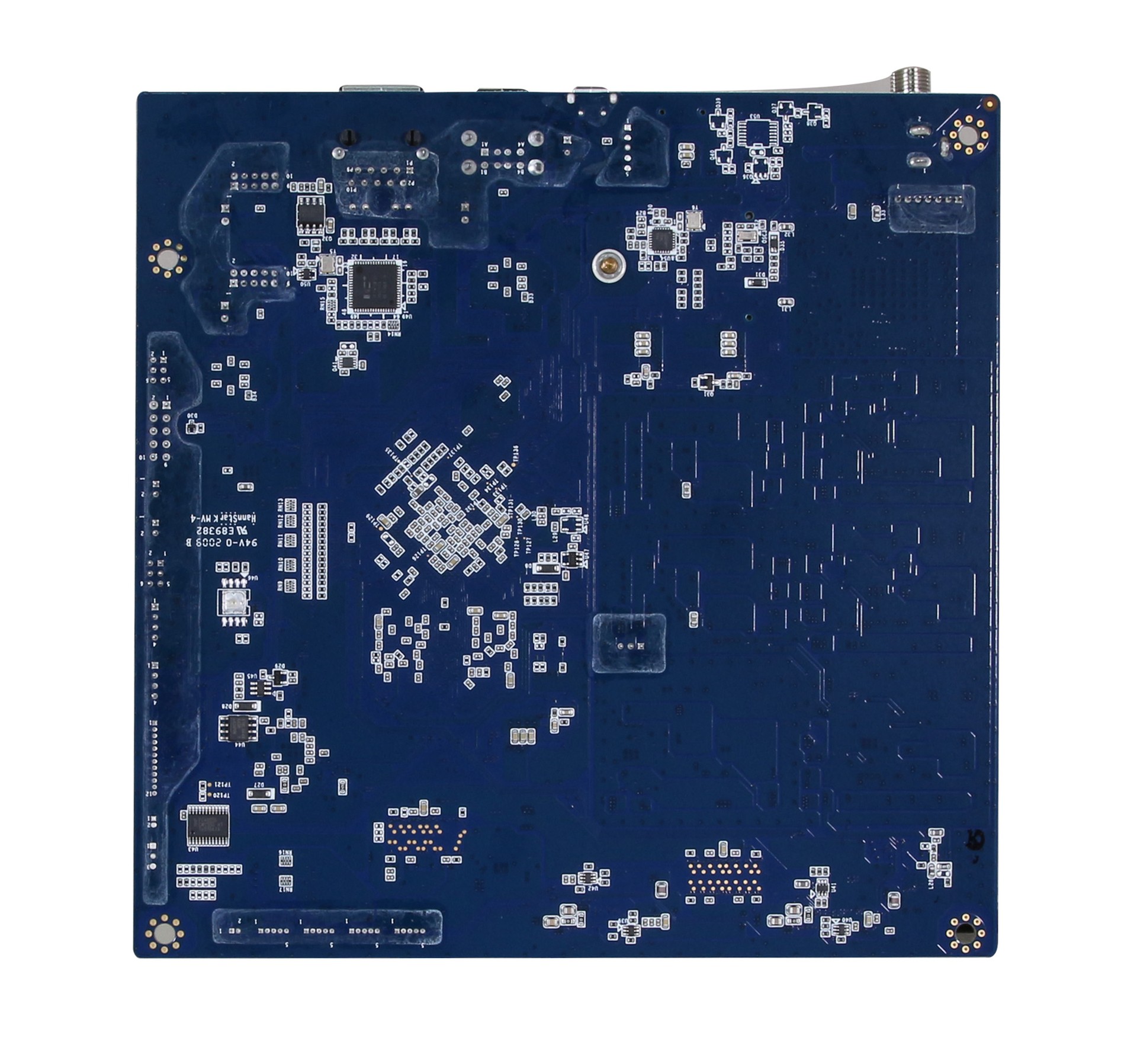

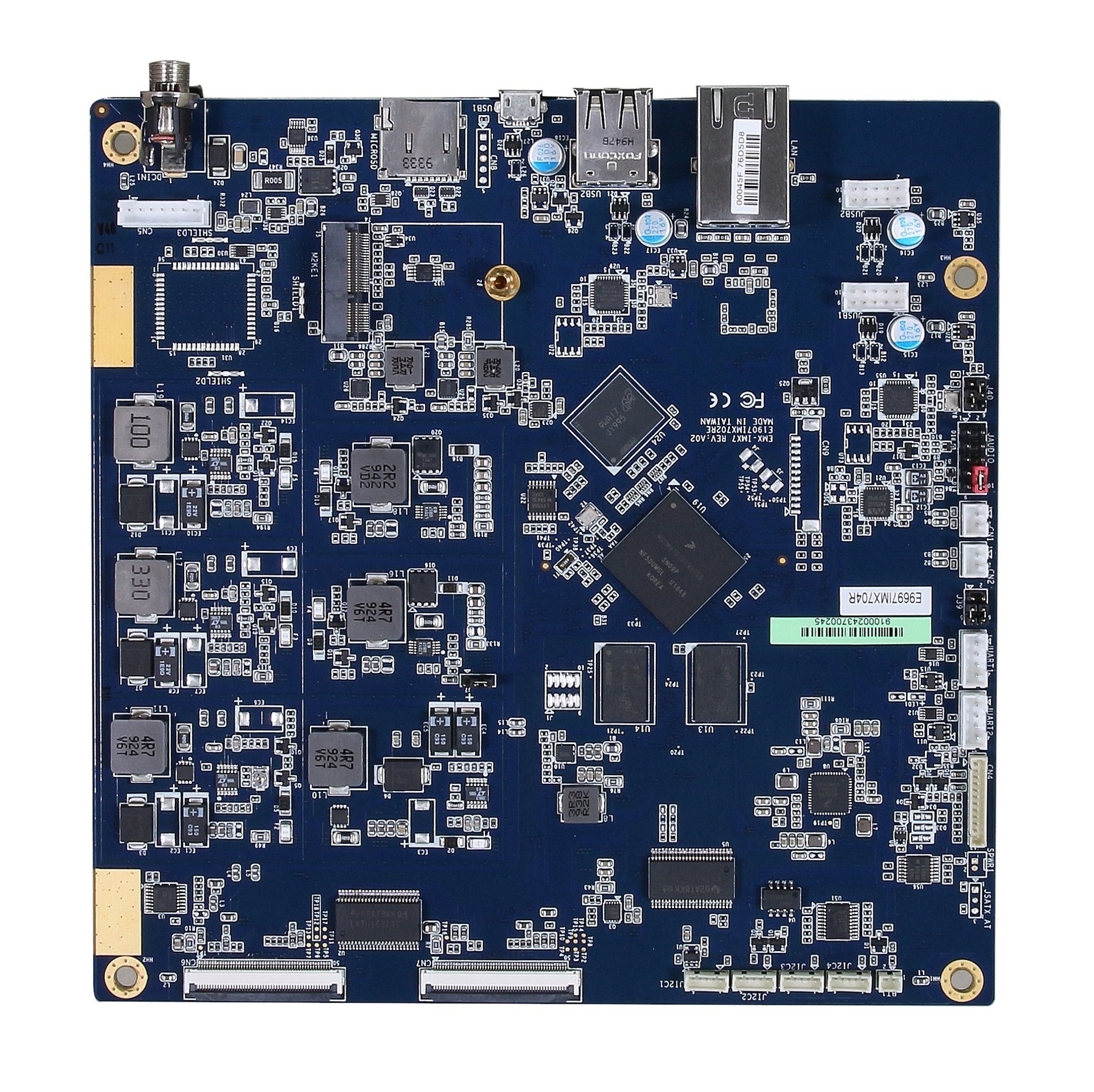

Basismodul: Avalue EMX-IMX7
Allgemein | ||||
SKU / Artikelnummer | EMX-IMX7 | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | ARM Cortex-A7 | |||
Nummer | NXP i.MX 7Dual | |||
CPU Kerne | 2 St | |||
Basis Frequenz | 1,2 GHz | |||
Prozessor 2 | Vertikales Segment | Embedded | ||
Serie | ARM Cortex-M4 | |||
Speicher | Memory Type | DDR3 | ||
Maximaler Ausbau | 2 GB | |||
Speicher onBoard | 1 GB, 2 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 8 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 8 GB | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E | |||
Storage | Micro-SD | |||

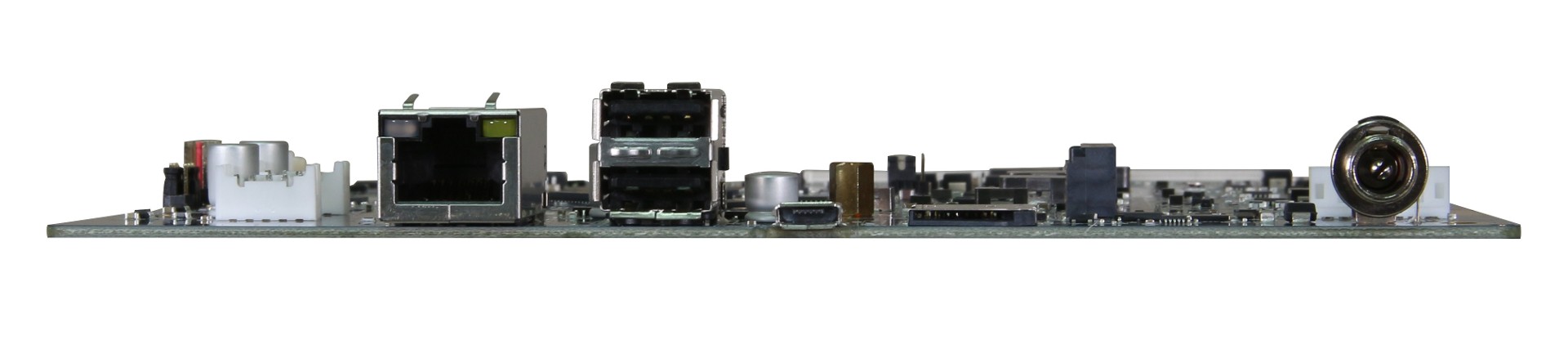

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 1 St | ||
USB | USB v2.0 | 2 St | ||
USBOTG (USB On-The-Go) | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
Anzeige | DDI Interface | 2 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
I²C | 1 St | |||
UART | Tx/Rx | 1 St | ||
Audio | Amplifier | 2 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 12V | |
Anschluss | Hohlstecker (verschraubt) | |||
Stromstärke | 5 A | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Yocto 3.0 | ||
Android | Release | 5.1 | ||
Unterstützte BS | Android, Linux | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C | ||
Lagerung | -20° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Gewicht | 350 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
