Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Celeron 3955U | Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Rückseite)
// 4 x USB (Rückseite)
// 4 x USB (intern)
// 6 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x PCIe x1
// Stromversorgung DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

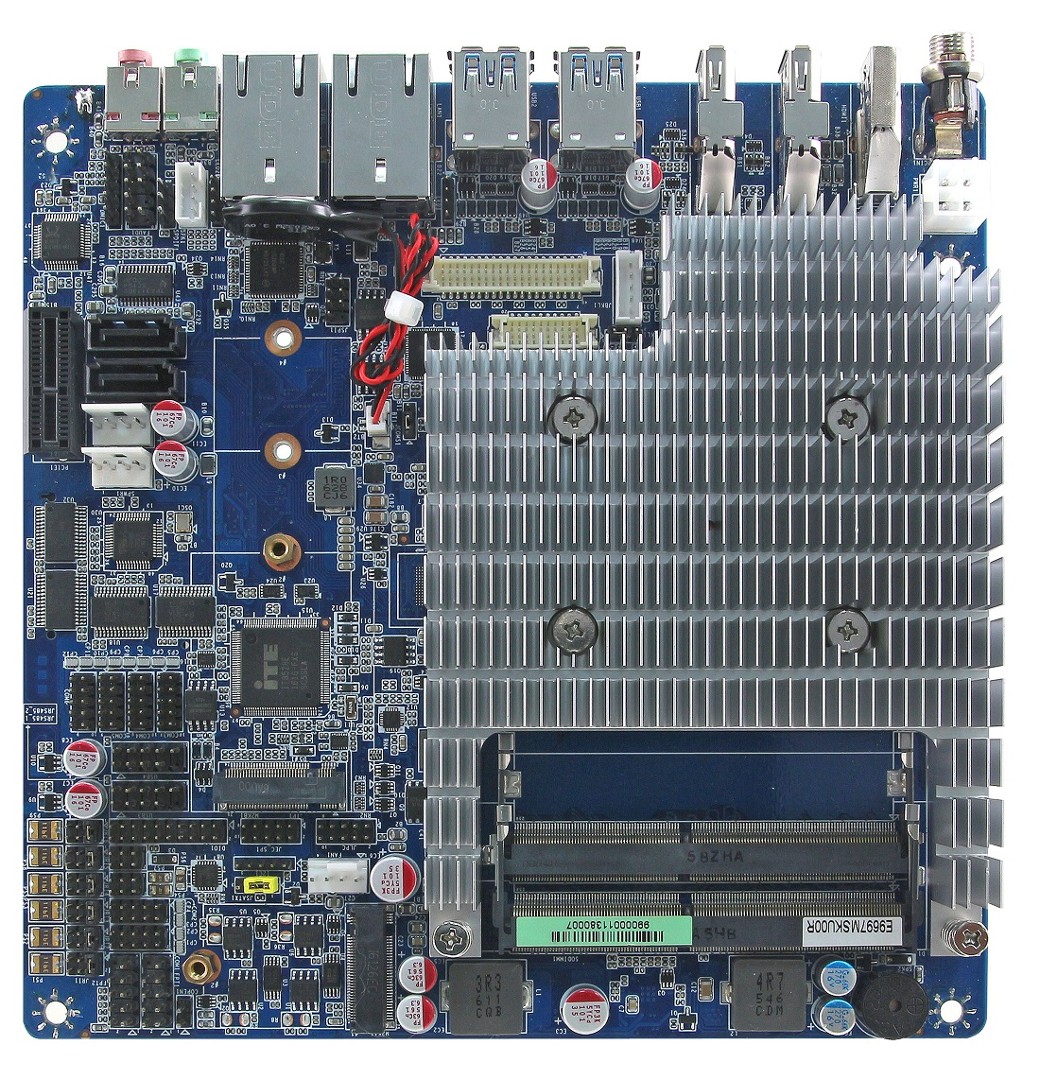

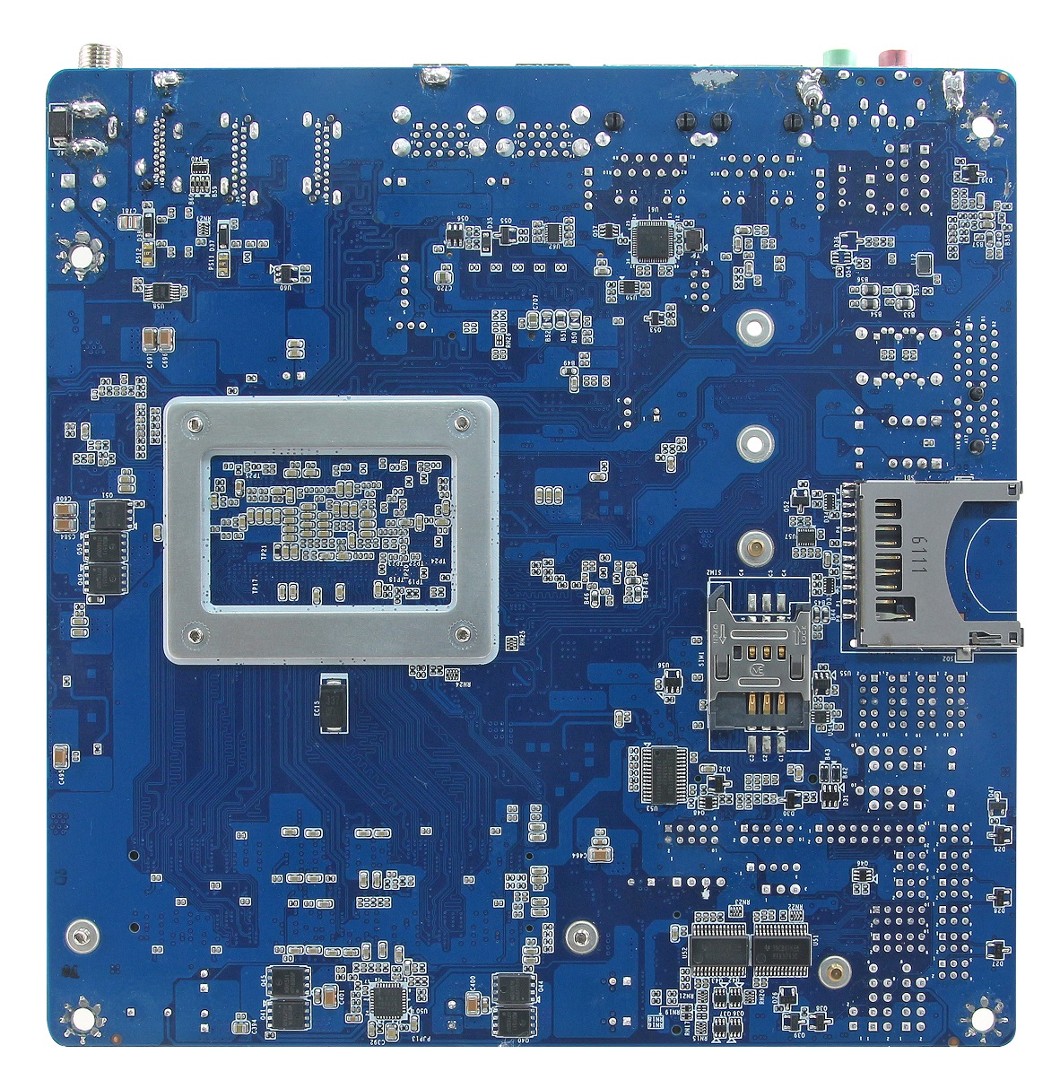

Basismodul: Avalue EMX-SKLUP
Allgemein | ||||
SKU / Artikelnummer | EMX-SKLUP | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Skylake | |||
Nummer | Intel Celeron 3955U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U | |||
CPU Kerne | 2 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz | |||
Max. Turbo-Taktfrequenz | 3 GHz, 3,4 GHz, - | |||
Cache | 2 MB, 3 MB, 4 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Lithographie | 14 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Frequenz | 2133 / 2400 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 32 GB | |||
BIOS | AMI SPI 128 Mbit | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8528E / FX | |
Grafik | ||||
Prozessor | Intel HD Graphics 510, Intel HD Graphics 520 | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | Chrontel CH7511B | |||
Erweiterung | ||||
PCIe x1 | x1 Signal | 1 St | ||
PCIe Schnittstellen | 1x PCIe x1 | |||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×2, SATA III, USB 2.0, USB 3.0 | |||
Unterstütze Abmaße | 2242, 2260, 2280, 3042 | |||
Slot 2 | Key ID | A | ||
Interface | PCIe ×1 (Gen. 2), USB 2.0, WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | A, B | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | SD / MMC-Karte | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

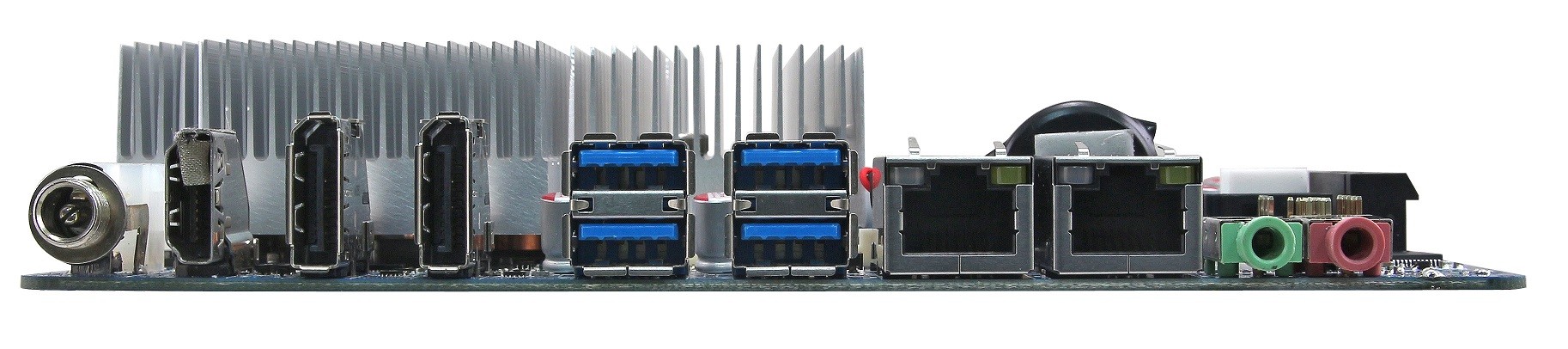

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Displayport | 1 St | |||
DP++ | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
Seriell | RS-232 | Ports (2.54 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 2 St | ||
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 16-Bit | 1 St | |
Audio | S/PDIF | verfügbar | ||
Amplifier | 2 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Stromanschluss (onboard) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9665 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (horizontal) | |||
DC | Weitbereich | Ja | ||
Bereich | 12~24V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12~24V,12~24V | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 75°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Gewicht | 400 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
