Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Core 3 Prozessor N355 | Intel N150 | Intel N250]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Rückseite)
// 4 x USB (Rückseite)
// 5 x USB (intern)
// 6 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x PCIe x1
// Stromversorgung DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

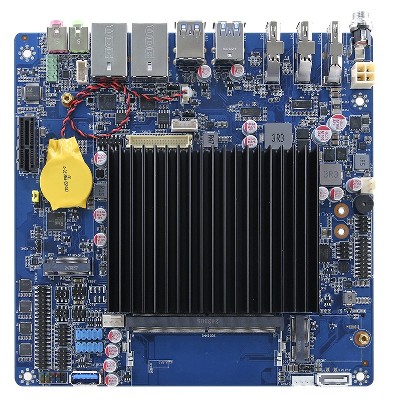

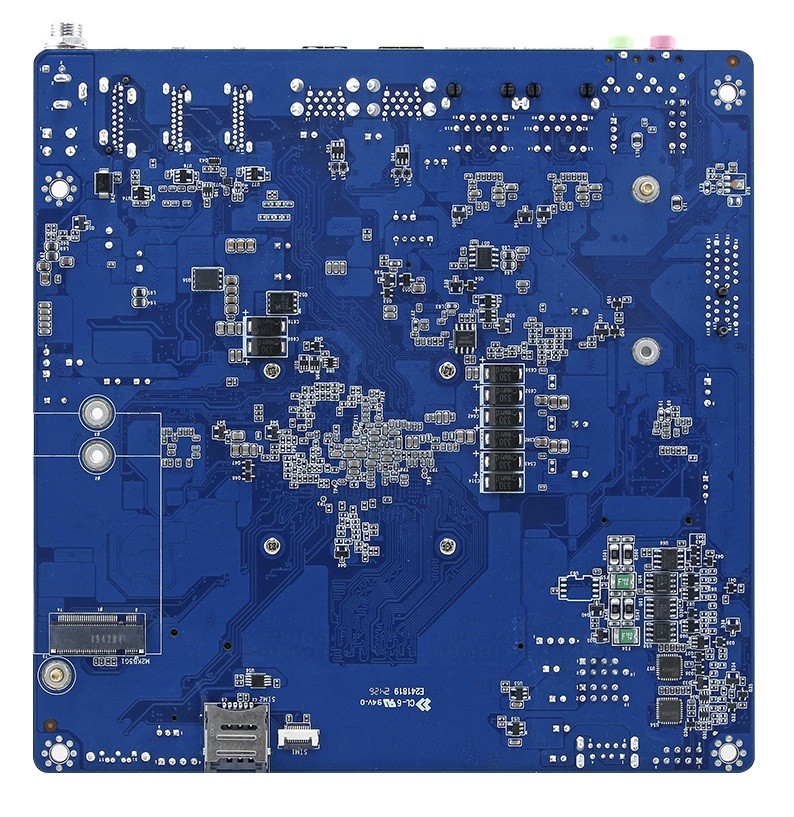

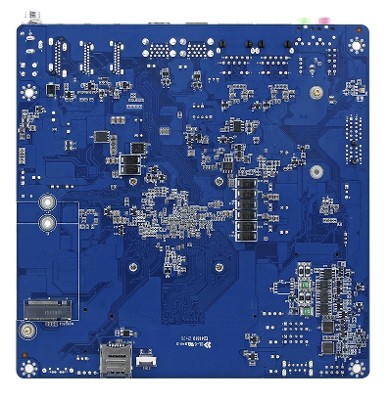

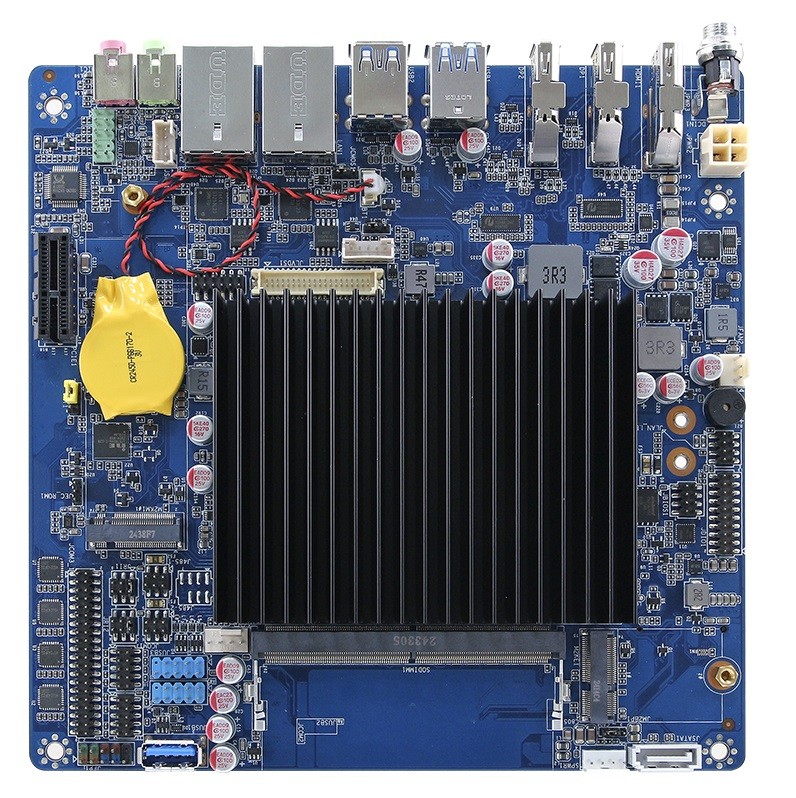

Basismodul: Avalue EMX-TWLP
Allgemein | ||||
SKU / Artikelnummer | EMX-TWLP | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Twin Lake | |||
Nummer | Intel Core 3 Prozessor N355, Intel N150, Intel N250 | |||
CPU Kerne | 4 St, 8 St | |||
Threads | 4 St, 8 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,6 GHz, 3,8 GHz, 3,9 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT5782VG | |
Grafik | ||||
Prozessor | Intel Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0b | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 1.4a | |||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | Chrontel CH7513A-BF | |||
eDP (embedded Display Port) | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | x1 Signal | 1 St | ||
PCIe Schnittstellen | 1x PCIe x1 | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, USB 2.0, USB 3.2 Gen1 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | M | ||
Interface | PCIe ×1 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

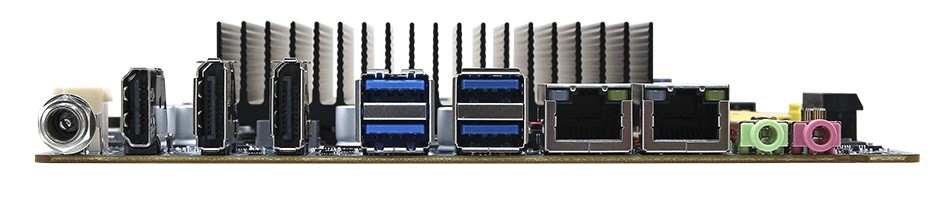

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Displayport | 1 St | |||
DP++ | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 2 St | ||
USB v3.2 (Gen 2) | 2 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
USB v3.2 | Ports (Typ-A-Buchse) | 1 St | ||
Generation | Gen. 1 | |||
Seriell | RS-232 | Ports (Sonderanschluss) | 4 St | |
RS-232 / 422 / 485 | Ports (Sonderanschluss) | 2 St | ||
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
eDP (embedded Display Port) Lanes | 2 St | |||
Digital I/O | Bits | 16-Bit | 1 St | |
Audio | Anschluss | 2.00 mm Pitch | ||
Amplifier | 2 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Nuvoton NPCT754AADYX | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | Hohlstecker (verschraubt) | |||
DC | Weitbereich | Ja | ||
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (horizontal) | |||
Stromversorgung - Eingang | DC: 12~24V,12~24V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 75°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Gewicht | 400 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
