Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// LGA 1851
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x16
// Power Supply DC Wide range 12~24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

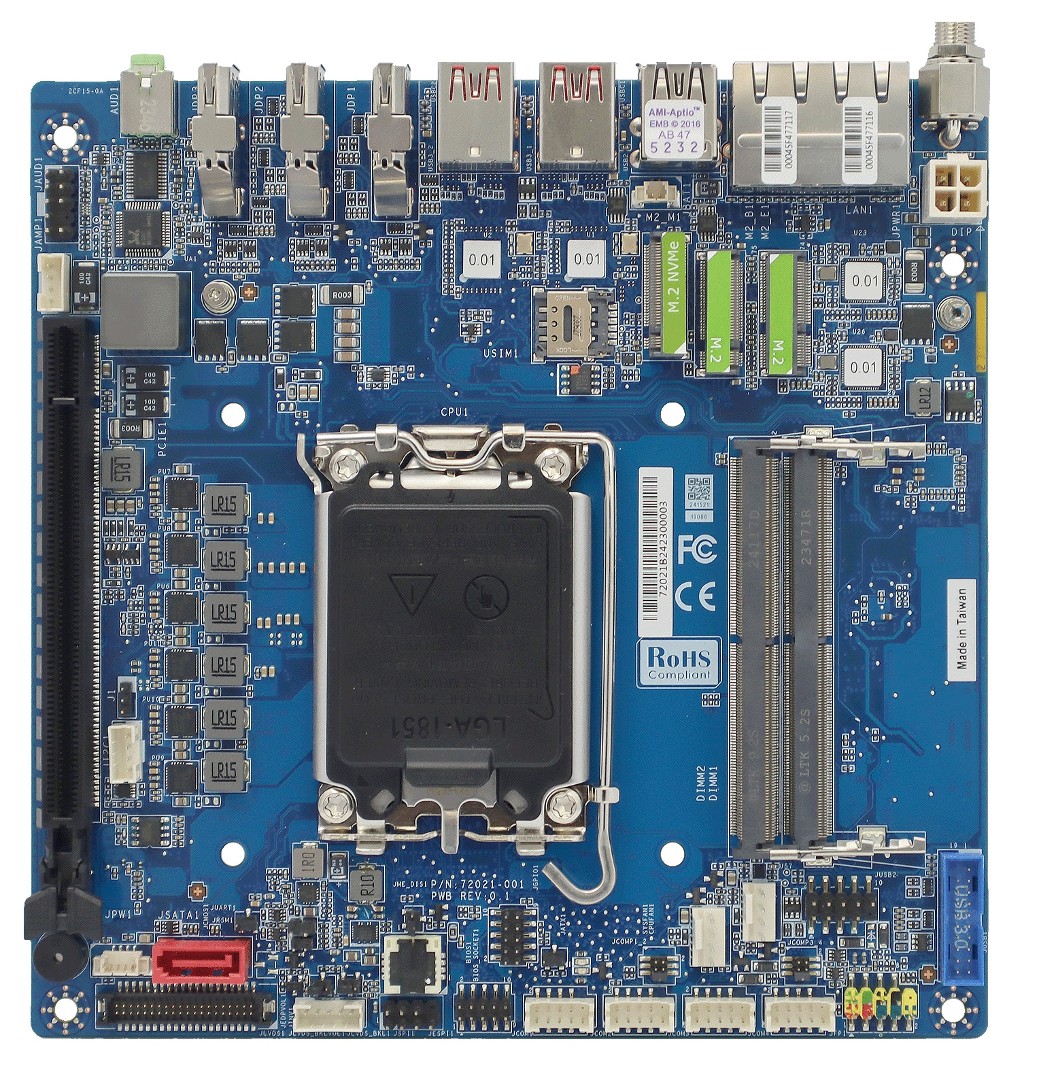

Basismodul: BCM MX-MTLPS
| Allgemein | ||||
| SKU / Artikelnummer | MX-MTLPS | |||
| Produktgrunddaten | ||||
| Hersteller | BCM | |||
| System | ||||
| Prozessor | Serie | Intel Meteor Lake | ||
| Sockel | LGA 1851 | |||
| Thermal Design Power (TDP) | 45 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| Frequenz | 5600 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 4 Displays | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Version | 1.4a | |||
| Dual Mode | Ja (DP++) | |||
| LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | Chrontel CH7513A-BF | |||
| Erweiterung | ||||
| PCIe x16 | x4 Signal | Generation | 4 | |
| Anzahl | 1 St | |||
| PCIe Schnittstellen | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | CNVi, PCIe ×1 (Gen. 4), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 4) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 3 | Key ID | B | ||
| Interface | PCIe ×1 (Gen. 4), SATA III, USB 2.0, USB 3.2 Gen1 | |||
| Unterstütze Abmaße | 3042 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

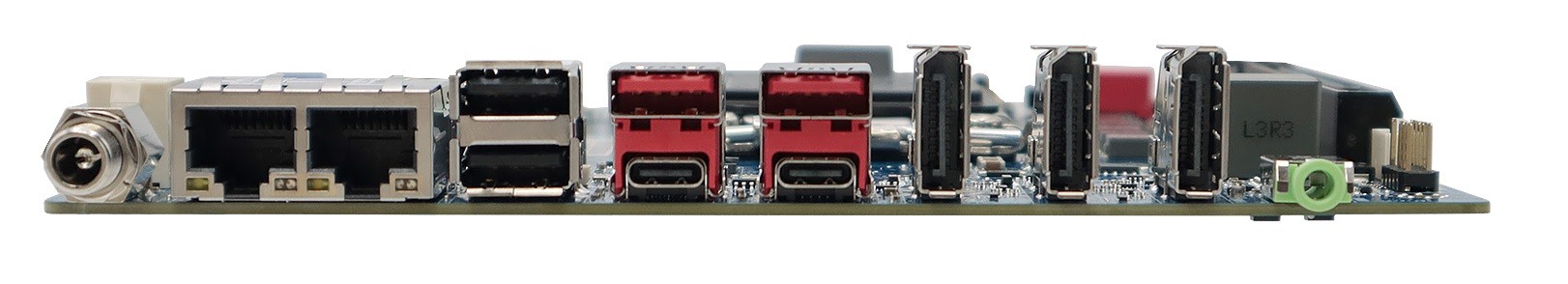

| Externe I/O (Rückseite) | ||||
| Anzeige | DP++ | 3 St | ||
| Audio | Line-Out | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| Thunderbolt | Thunderbolt 4 USB Type C | |||
| USB | USB v2.0 | 2 St | ||
| USB v3.2 (Gen 2) | 2 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| USB v3.2 | Key-A Header (20-Pin) | 2 St | ||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| Serial Peripheral Interface (SPI) | 1 St | |||
| I²C | 1 St | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | DC Jack | |||
| DC | Weitbereich | Ja | ||
| Bereich | 12~24V | |||
| Anschluss | 4 Pin Anschluss (horizontal) | |||
| Stromversorgung - Eingang | DC: 12~24V,12~24V | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Windows 11 | Wird unterstützt | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Unterstützte BS | Windows, Linux | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | Thin Mini-ITX | ||
| Breite | 170 mm | |||
| Tiefe | 170 mm | |||
| Gewicht | 400 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| UL | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
