Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Atom x5-E3930 | Intel Atom x7-E3950 | Intel Pentium N4200]
// 204 Pin SO-DIMM DDR3L
// 1 x VGA
// 1 x DP++
// LVDS
// 2 x G-LAN
// 4 x USB
// 5 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x1
// 1 x Mini-PCIe
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

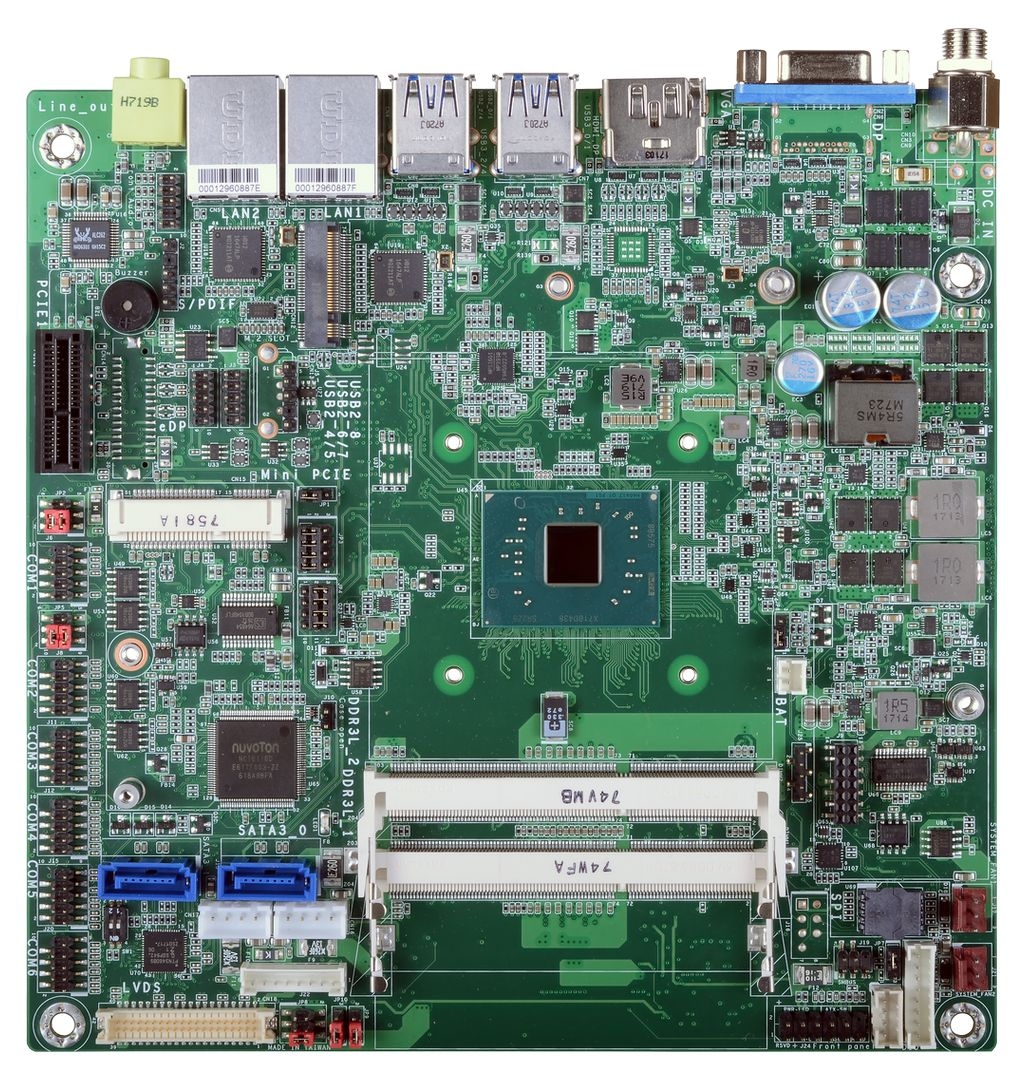

Basismodul: DFI AL171
Allgemein | ||||
SKU / Artikelnummer | AL171 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-AL1713-000G, 770-AL1713-100G, 770-AL1713-300G, 770-AL1713-800G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Apollo Lake | |||
Nummer | Intel Atom x5-E3930, Intel Atom x7-E3950, Intel Pentium N4200 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
Max. Turbo-Taktfrequenz | 1,8 GHz, 2 GHz, 2,5 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W, 6,5 W, 12 W | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
Frequenz | 1600 / 1866 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 8 GB | |||
BIOS | Insyde SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 5.0 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, MVC, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 48 Bit | |||
Bridge | NXP PTN3460 | |||
eDP (embedded Display Port) | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | Generation | 2 | ||
x1 Signal | 1 St | |||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe, 1x PCIe x1 | |||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×1 (Gen. 2), SATA III, USB 2.0 | |||
Unterstütze Abmaße | 2242, 2280 | |||
M.2 Key IDs | B | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

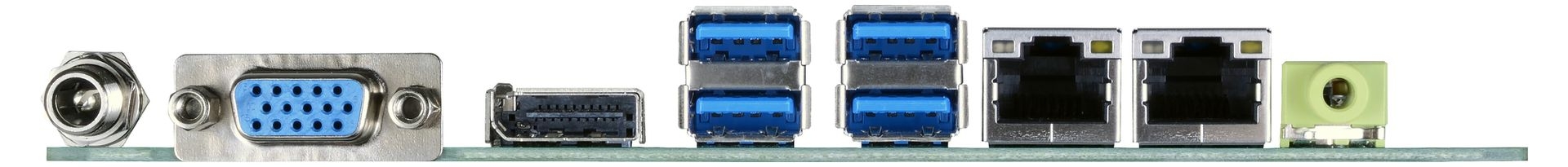

Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 4 St | ||
Anzeige | VGA | 1 St | ||
DP++ | 1 St | |||
Audio | Line-Out | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
Ports (2.54 mm Pitch) | 1 St | |||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
eDP (embedded Display Port) Lanes | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
S/PDIF | verfügbar | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Stromanschluss (onboard) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | Hohlstecker | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q1/2018 | |||
Voraussichtlich bis | Q4/2031 | |||
Herstellergarantie | ||||
Herstellergarantie | 3 Jahre |
