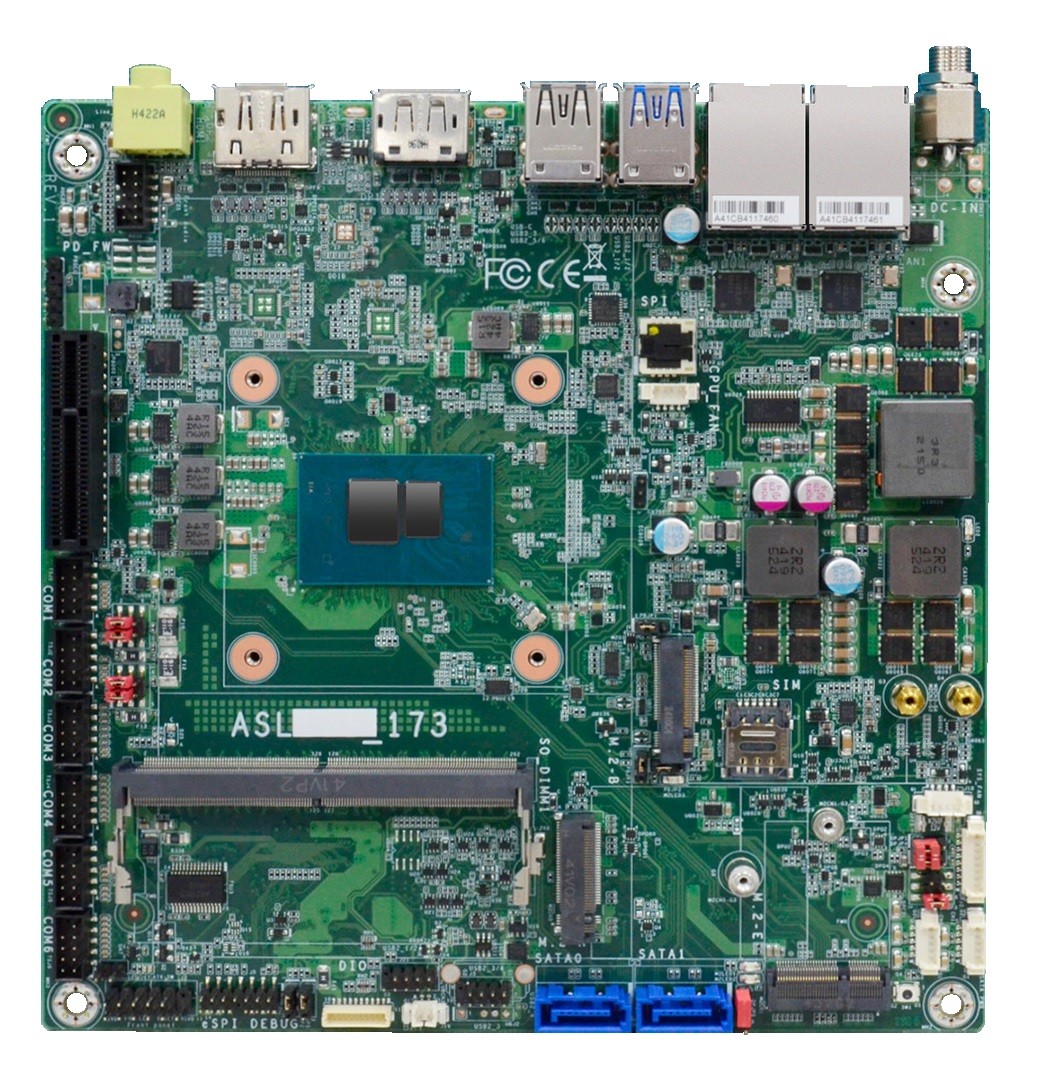

Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Atom X7211RE | Intel Atom x7213RE | Intel Atom X7433RE | Intel Atom x7835RE]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI ASL171
Allgemein | ||||
SKU / Artikelnummer | ASL171 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-ASL1711-000G, 770-ASL1711-100G, 770-ASL1711-200G, 770-ASL1711-300G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Amston Lake | |||
Nummer | Intel Atom X7211RE, Intel Atom x7213RE, Intel Atom X7433RE, Intel Atom x7835RE | |||
CPU Kerne | 1 St, 2 St, 4 St, 8 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 9 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
BIOS | AMI SPI 256 Mbit | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8786E | |
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 2048 x 1536 bei 60 Hz | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 24 Hz | ||
Version | 2.0 | |||
Displayport | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x2 Signal | 1 St | |||
PCIe Schnittstellen | 1x PCIe x4 | |||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×1 (Gen. 3) | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | A | ||
Interface | OOB | |||
Unterstütze Abmaße | 3060 | |||
M.2 Key IDs | A, B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St, - | ||
HDMI | 1 St, - | |||
DP++ | 1 St, 2 St | |||
DP USB-C | 1 St, - | |||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 1 St, - | ||
USB v3.2 (Gen 2) | 3 St, 4 St | |||
USB v3.2 (Gen 2, Type C) | 1 St, - | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-In | 1 St | |||
Mic-In | 1 St | |||
S/PDIF | verfügbar | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Nuvoton NPCT750AADYX | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Höhe | 24,6 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | UKCA | |||
RoHS konform | Ja |
