Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Atom E3815 | Intel Atom E3825 | Intel Atom E3845 | Intel Celeron J1900]
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 3 x USB (Back side)
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x1
// 1 x Mini-PCIe
// Power Supply DC 19~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

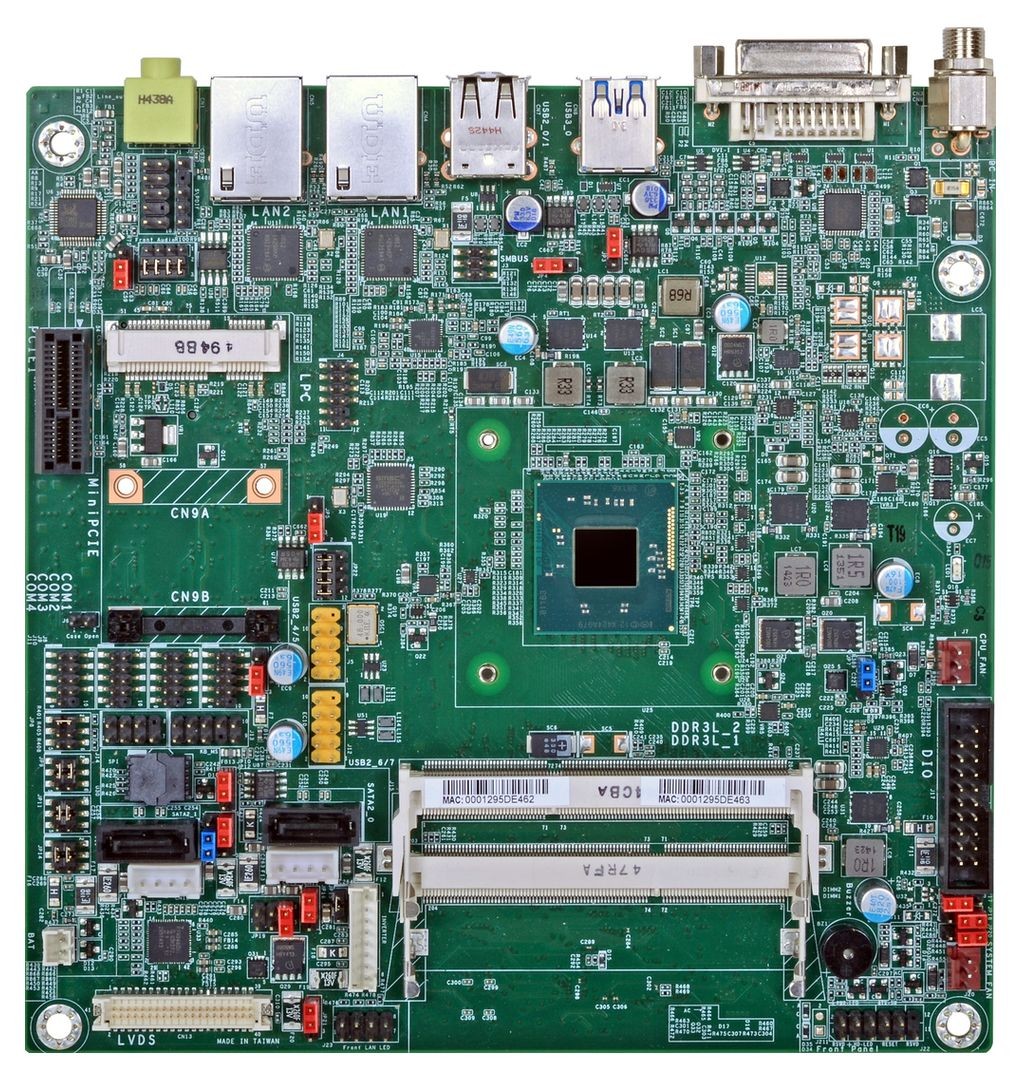

Basismodul: DFI BT103
Allgemein | ||||
SKU / Artikelnummer | BT103 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-BT1031-900G, 770-BT1031-A00G, 770-BT1031-C00G, 770-BT1031-D00G, 770-BT1031-E00G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Bay Trail | |||
Nummer | Intel Atom E3815, Intel Atom E3825, Intel Atom E3845, Intel Celeron J1900 | |||
CPU Kerne | 1 St, 2 St, 4 St | |||
Threads | 1 St, 2 St, 4 St | |||
Sockel | BGA 1170 | |||
Basis Frequenz | 1,33 GHz, 1,46 GHz, 1,91 GHz, 2 GHz | |||
Max. Turbo-Taktfrequenz | 2,42 GHz, - | |||
Cache | 0,5 MB, 1 MB, 2 MB | |||
Thermal Design Power (TDP) | 5 W, 6 W, 10 W | |||
Lithographie | 22 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
Frequenz | 800 / 1066 MHz, 1066 / 1333 MHz | |||
Steckplätze | 1 St, 2 St | |||
Maximaler Ausbau | 4 GB, 8 GB | |||
BIOS | AMI SPI 64 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
DVI | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | NXP PTN3460 | |||
Erweiterung | ||||
PCIe x1 | x1 Signal | 1 St | ||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe, 1x PCIe x1 | |||
Audio | ||||
Chipsatz | Realtek ALC888 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

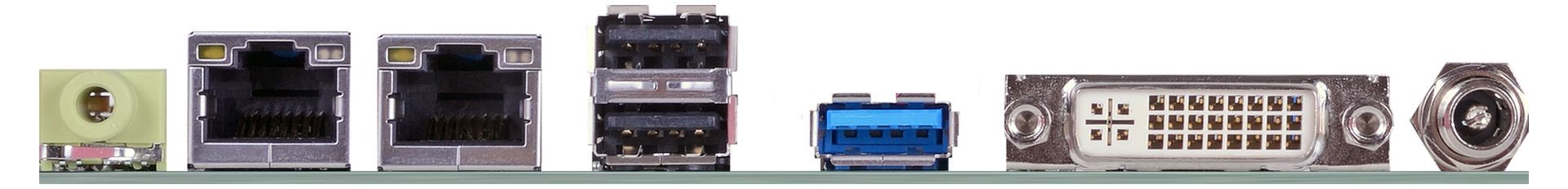

Externe I/O (Rückseite) | ||||
Anzeige | DVI | DVI-I Signal | 1 St | |
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.0 | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
PS/2 | Stiftleiste | 1 St | ||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 3 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
DIO Power | 4-Pin (2 mm Pitch) | |||
SMBus | 1 St | |||
LPC | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
S/PDIF | verfügbar | |||
Serial-ATA | S-ATA R2.0 (3 Gbit/s, 300 MB/s) | 2 St | ||
Stromanschluss (onboard) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 19~24V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 19~24V | |||
Betriebssysteme / Software | ||||
Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
Windows 8.1 (32-bit) | wird unterstützt | |||
Windows 8.1 (64-bit) | wird unterstützt | |||
Windows Embedded | WE8S | wird unterstützt | ||
WE8P | wird unterstützt | |||
Unterstützte BS | Windows, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
