Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// LGA 1200 (H5)
// 260 Pin SO-DIMM DDR4
// LVDS
// 3 x G-LAN (Rückseite)
// 4 x USB (Rückseite)
// 4 x USB (intern)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x16
// Stromversorgung DC 15~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

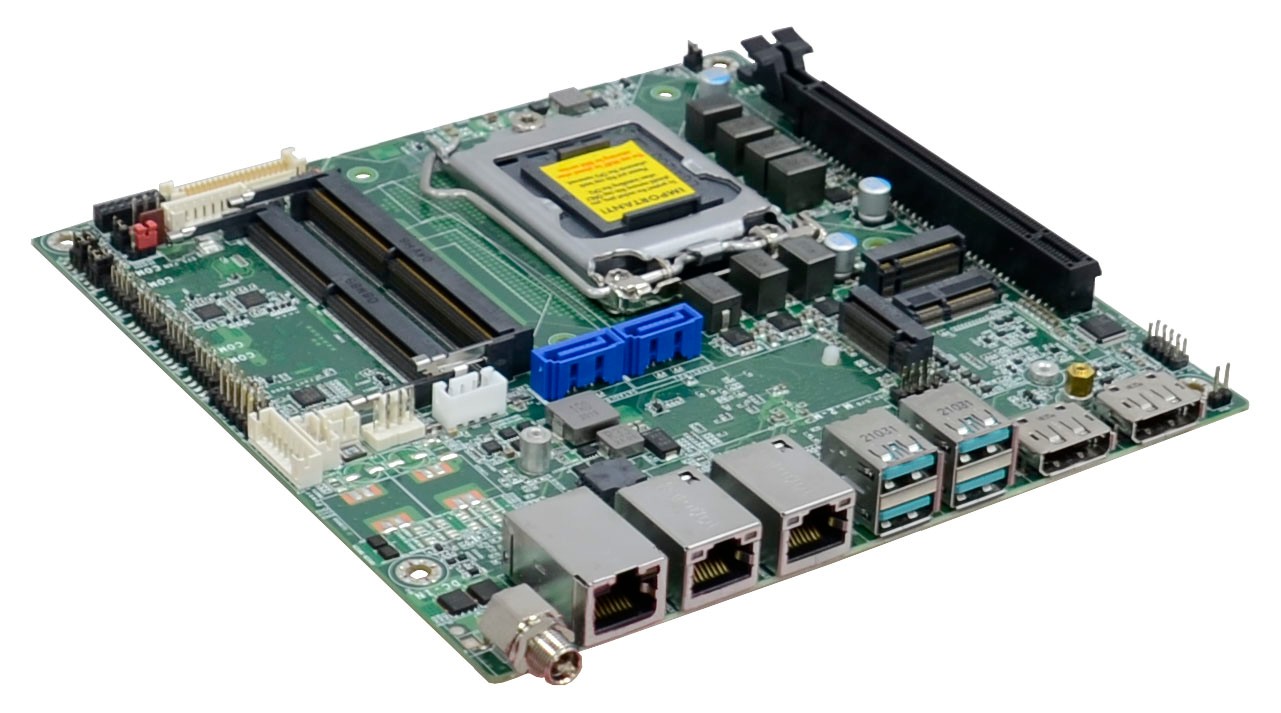

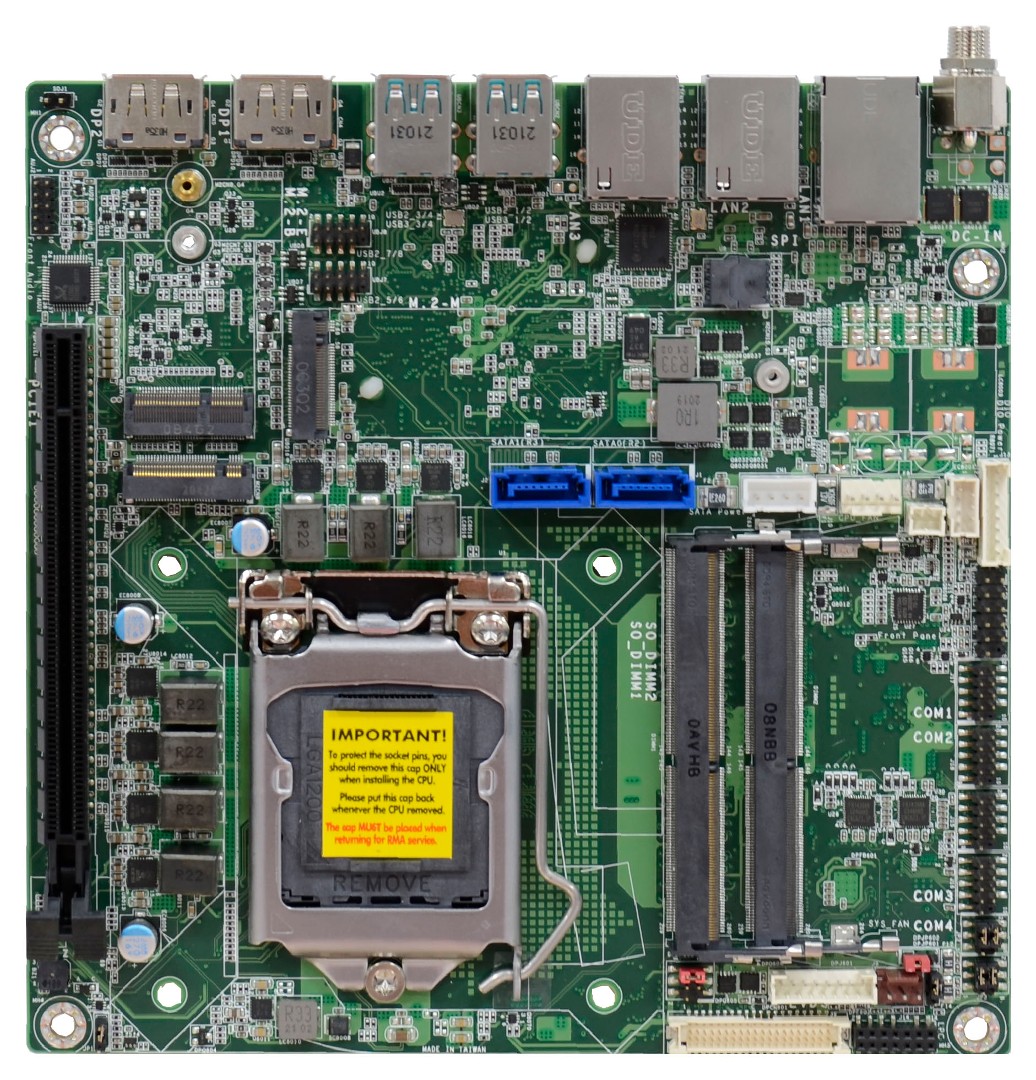

Basismodul: DFI CMS103
Allgemein | ||||
SKU / Artikelnummer | CMS103 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-CMS1031-000G, 770-CMS1031-100G, 770-CMS1031-200G | |||
System | ||||
Prozessor | Serie | Intel Comet Lake-S | ||
Sockel | LGA 1200 (H5) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2933 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI SPI 256 Mbit | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 4.5 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 2), USB 3.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | M | ||
Interface | PCIe ×1 (Gen. 3), PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 3), SATA III, USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
M.2 Key IDs | B, E, M | |||
SIM | Formfaktor (Slot) | Nano SIM | ||
Audio | ||||
Chipsatz | Realtek ALC888 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Active Management Technology (AMT) Version | 14.0 | |||
Netzwerk | 3x G-LAN | |||

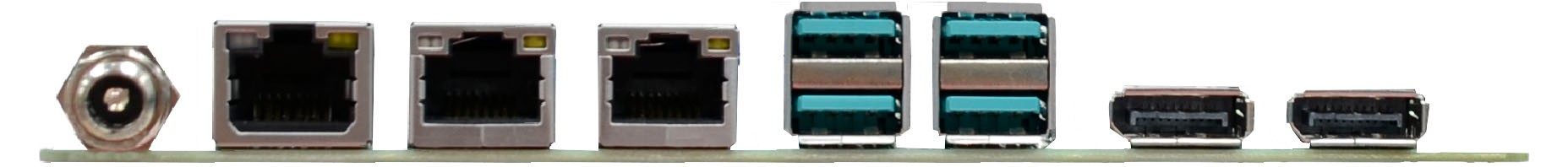

Externe I/O (Rückseite) | ||||
Anzeige | DP++ | 2 St | ||
Ethernet | RJ-45 | 3 St | ||
USB | USB v3.2 (Gen 1) | 4 St, - | ||
USB v3.2 (Gen 2) | 4 St, - | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Anzeige | LVDS Anschlüsse | 1 St | ||
eDP (embedded Display Port) Lanes | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
DIO Power | 4-Pin (2 mm Pitch) | |||
SMBus | 1 St | |||
LPC | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird nicht unterstützt, wird unterstützt | ||
Stromanschluss (onboard) | 1 St | |||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 15~36V | |||
Anschluss | 4 Pin Anschluss (horizontal) | |||
Stromversorgung - Eingang | DC: 15~36V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Ubuntu 18.04 LTS | ||
Unterstützte BS | Linux, Windows | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -5° bis 65°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Höhe | 22,3 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | CB | |||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q2/2021 | |||
Voraussichtlich bis | Q2/2034 | |||
Herstellergarantie | ||||
Herstellergarantie | 3 Jahre |
