Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// LGA 1151 (H4)
// [Intel C246 | Intel H310 | Intel Q370]
// 260 Pin SO-DIMM DDR4
// 1 x HDMI
// 2 x DP++
// LVDS
// 2 x G-LAN
// 4 x USB (Back side)
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x4
// 1 x Mini-PCIe
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

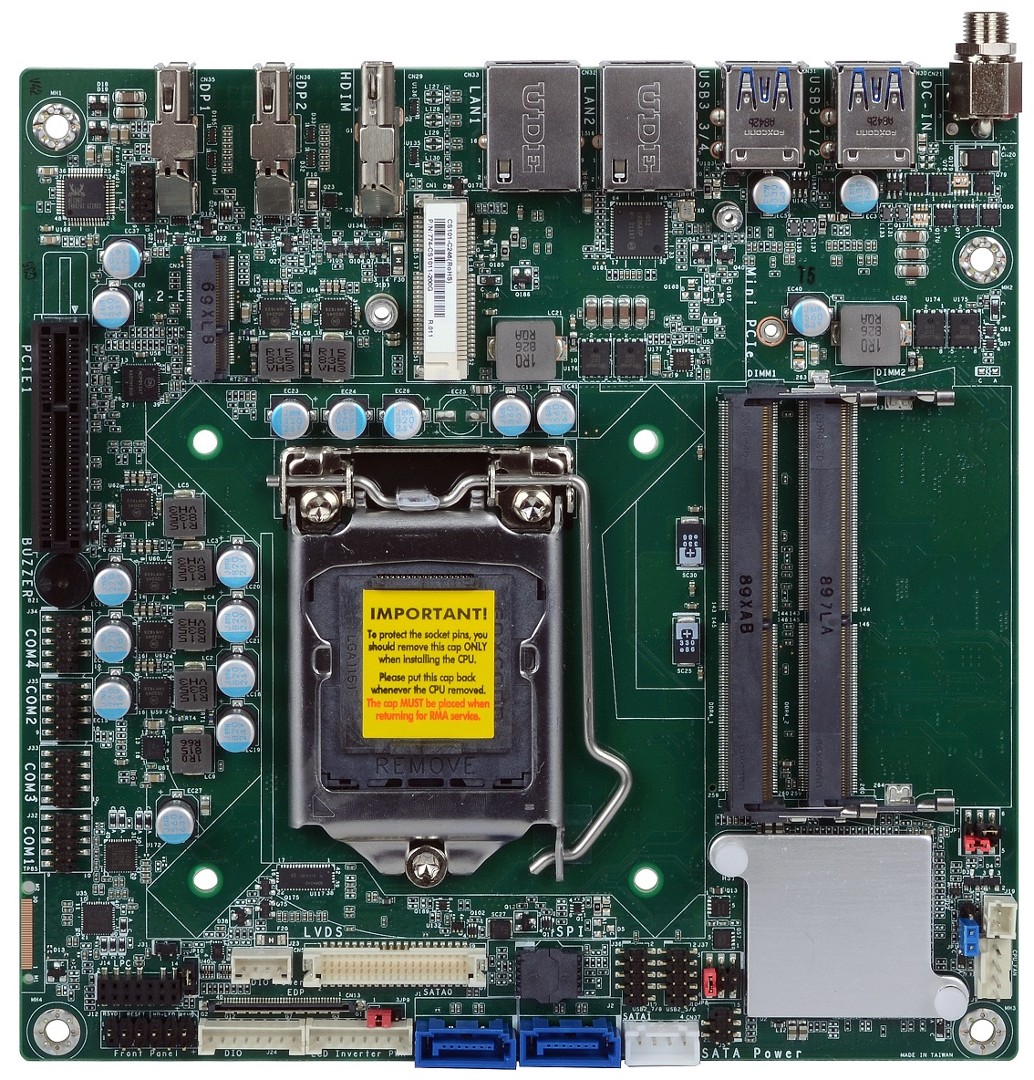

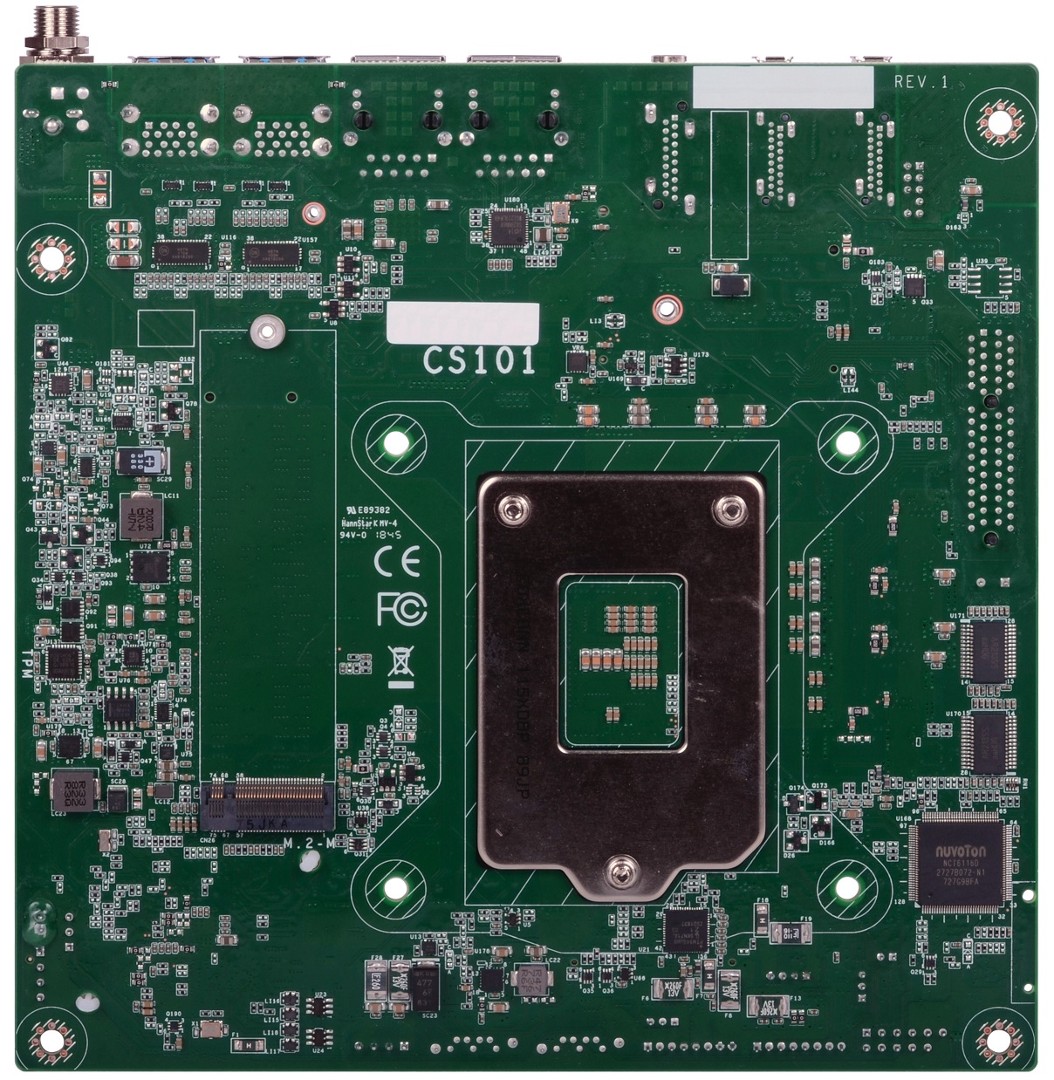

Basismodul: DFI CS101
Allgemein | ||||
SKU / Artikelnummer | CS101 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-CS1012-000G, 770-CS1012-100G, 770-CS1012-200G, 770-CS1012-300G, 770-CS1012-400G, 770-CS1012-500G, 770-CS1012-600G, 770-CS1012-900G | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Sockel | LGA 1151 (H4) | |||
Chipsatz | Intel C246, Intel H310, Intel Q370 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 32 GB | |||
ECC | wird nicht unterstützt, wird unterstützt | |||
BIOS | AMI SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 4.4 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 2 Displays, 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.2 | |||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | NXP PTN3460 | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x4 Signal | 1 St | |||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe, 1x PCIe x4 | |||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, Optane Memory, PCIe ×1 (Gen. 2), PCIe ×4, SATA III | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | E, M | |||
Storage | M.2, mSATA | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps), Intel I219V PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

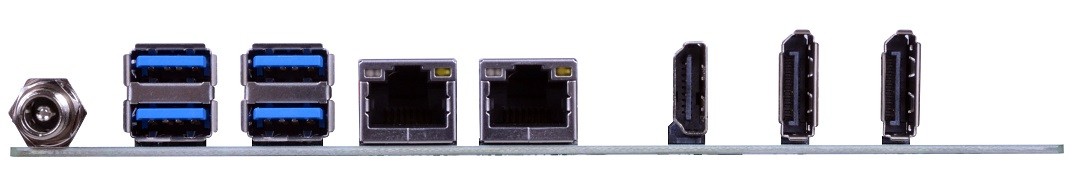

Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
Anzeige | HDMI | 1 St | ||
DP++ | 2 St | |||
Externe I/O (Rückseite) | ||||
USB | USB v3.1 Gen. 1 | 4 St, - | ||
USB v3.1 Gen. 2 | 4 St, - | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Anzeige | LVDS Anschlüsse | 1 St | ||
eDP (embedded Display Port) Lanes | 1 St, - | |||
Digital I/O | Bits | 8-Bit | 1 St | |
DIO Power | 4-Pin (2 mm Pitch) | |||
SMBus | 1 St | |||
LPC | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1/5 | -, wird unterstützt | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | -, dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 4 Pin Anschluss (vertikal), Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Höhe | 24,6 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q4/2019 | |||
Voraussichtlich bis | Q3/2032 | |||
Herstellergarantie | ||||
Herstellergarantie | 3 Jahre |
