Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Celeron 3965U | Intel Core i3-7100U | Intel Core i5-7300U | Intel Core i7-7600U]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x DP++
// LVDS
// 2 x G-LAN
// 4 x USB
// 4 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x4
// 1 x Mini-PCIe
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

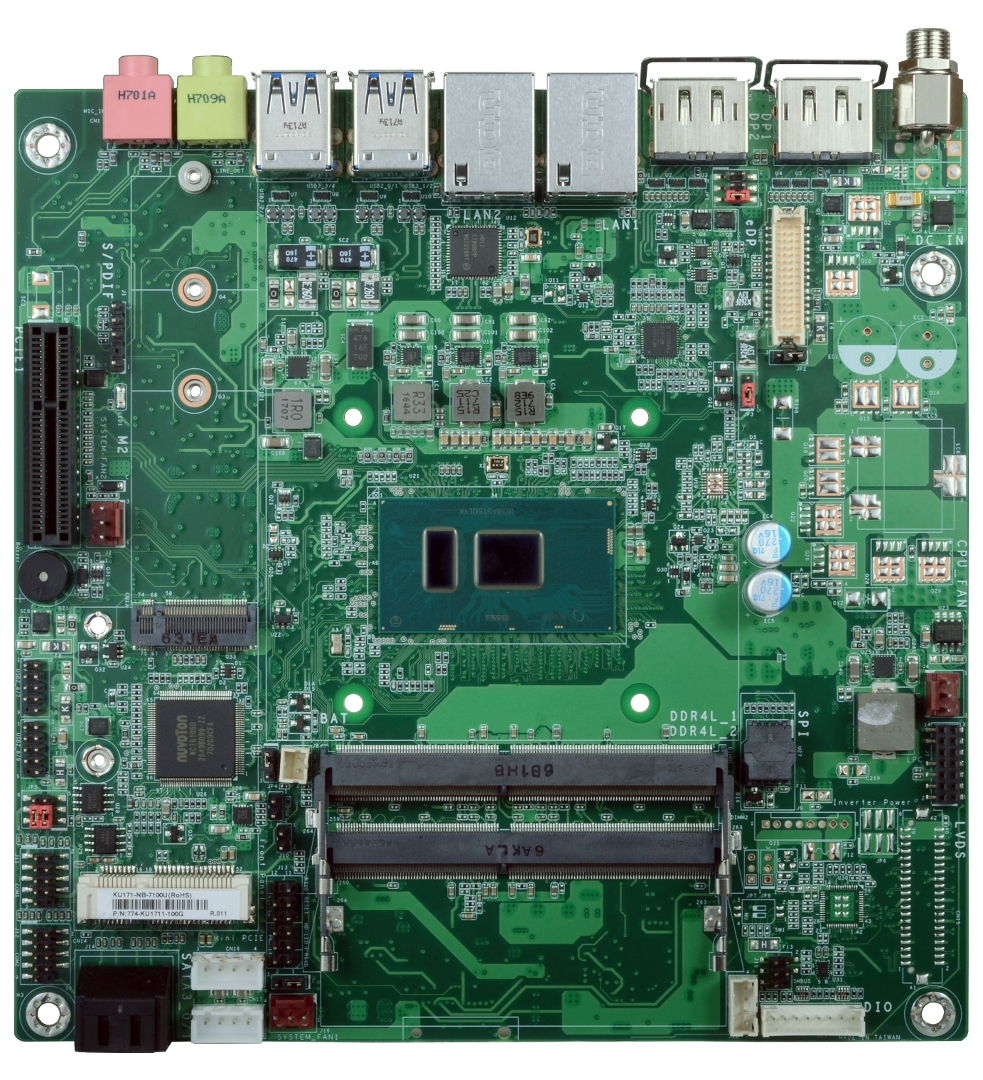

Basismodul: DFI KU171
Allgemein | ||||
SKU / Artikelnummer | KU171 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-KU1711-000G, 770-KU1711-200G, 770-KU1711-300G, 770-KU1711-400G | |||
System | ||||
Prozessor | Serie | Intel Kaby Lake | ||
Nummer | Intel Celeron 3965U, Intel Core i3-7100U, Intel Core i5-7300U, Intel Core i7-7600U | |||
CPU Kerne | 2 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2,2 GHz, 2,6 GHz, 2,8 GHz | |||
Cache | 2 MB, 3 MB, 4 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Frequenz | 1866 / 2133 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 32 GB | |||
BIOS | Insyde SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics GT | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 4.4 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x4 Signal | 1 St | |||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe, 1x PCIe x4 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×2 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

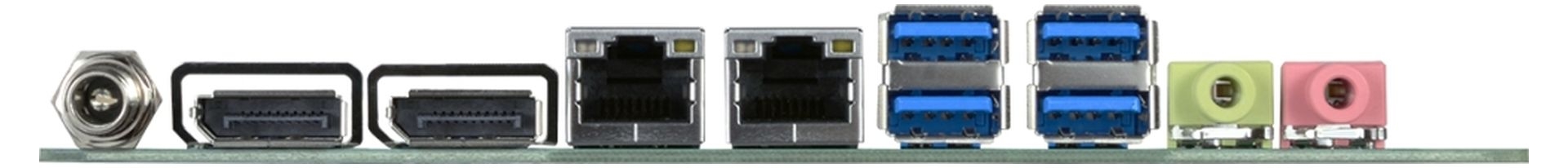

Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 4 St | ||
Anzeige | DP++ | 2 St | ||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Audio | S/PDIF | verfügbar | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1/5 | wird unterstützt | ||
Stromanschluss (onboard) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | Hohlstecker | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | CentOS 7, Debian 8 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -20° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q4/2018 | |||
Voraussichtlich bis | Q2/2031 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
