Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Atom x7425E | Intel Core i3-N305 | Intel N97]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

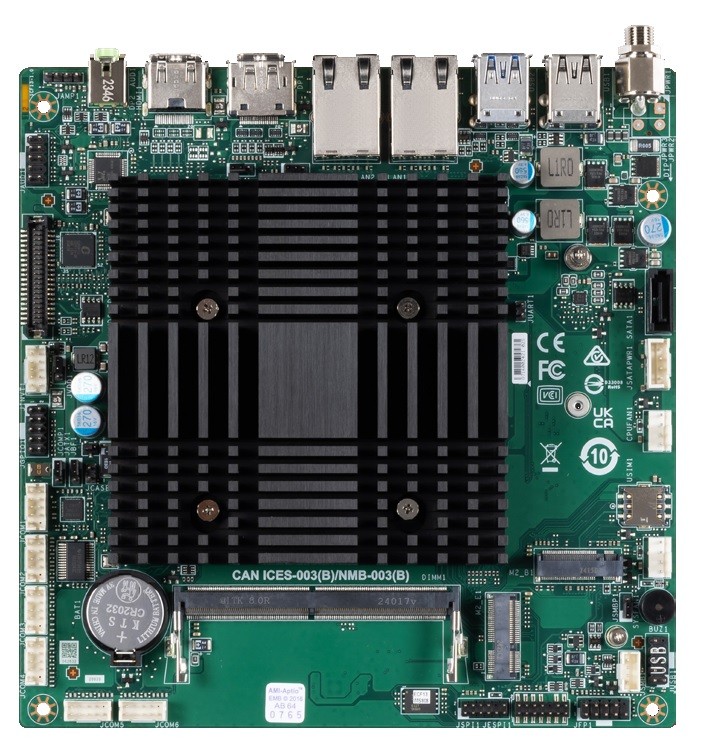

Basismodul: MSI MS-CF13
| Allgemein | ||||
| SKU / Artikelnummer | MS-CF13 | |||
| Produktgrunddaten | ||||
| Hersteller | MSI | |||
| Produkt-ID | 911-CF13-101, 911-CF13-102, 911-CF13-103, 911-CF13-104 | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Alder Lake | |||
| Nummer | Intel Atom x7425E, Intel Core i3-N305, Intel N97 | |||
| CPU Kerne | 4 St, 8 St | |||
| Threads | 8 St, - | |||
| Sockel | BGA 1264 | |||
| Max. Turbo-Taktfrequenz | 3,4 GHz, 3,6 GHz, 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 12 W, 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 16 GB | |||
| BIOS | AMI UEFI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81966AB-I | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| eDP (embedded Display Port) | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), SATA III, USB 2.0, USB 3.2 Gen1 | |||
| Unterstütze Abmaße | 2242, 2280, 3042 | |||
| M.2 Key IDs | B, E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC897 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

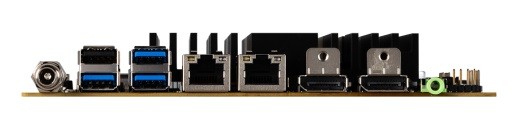

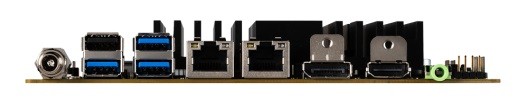

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St, - | ||
| Displayport | 1 St, 2 St | |||
| Audio | Line-Out | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 1 St | ||
| USB v3.2 (Gen 1) | 1 St | |||
| USB v3.2 (Gen 2) | 2 St | |||
| Interne I/O | ||||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 5 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS Anschlüsse | 1 St | |||
| eDP (embedded Display Port) Lanes | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| DIO Power | 4-Pin (2 mm Pitch) | |||
| SMBus | 1 St | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Amplifier | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9672 VU 2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
| Windows 11 IoT | wird unterstützt | |||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
| Lagerung | 10 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | Thin Mini-ITX | ||
| Breite | 170 mm | |||
| Tiefe | 170 mm | |||
| Gewicht | 510 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | BSMI, RCM, UKCA, VCCI | |||
| RoHS konform | Ja | |||
