1,8" Mainboards
// 1,8" Industrie-Mainboards
// NXP i.MX 8M Mini
// NXP i.MX 8M Mini
// 4 GB
// 1 x G-LAN (Back side)
// 5 x USB (Back side)
// 1 x USB (internal)
// 32 GB eMMC
// Digital I/O (8-Bit)
// Power Supply DC 5V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

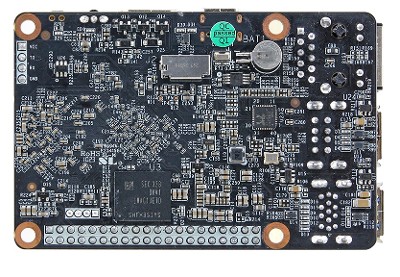

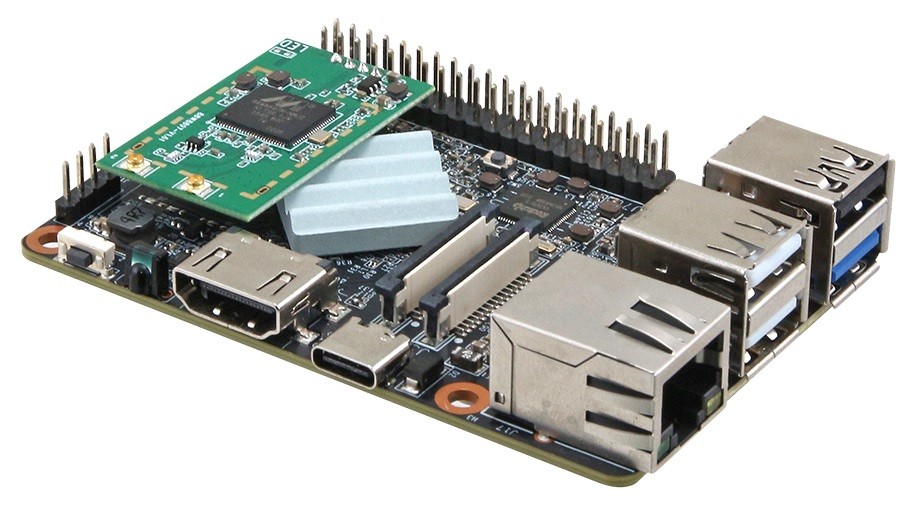

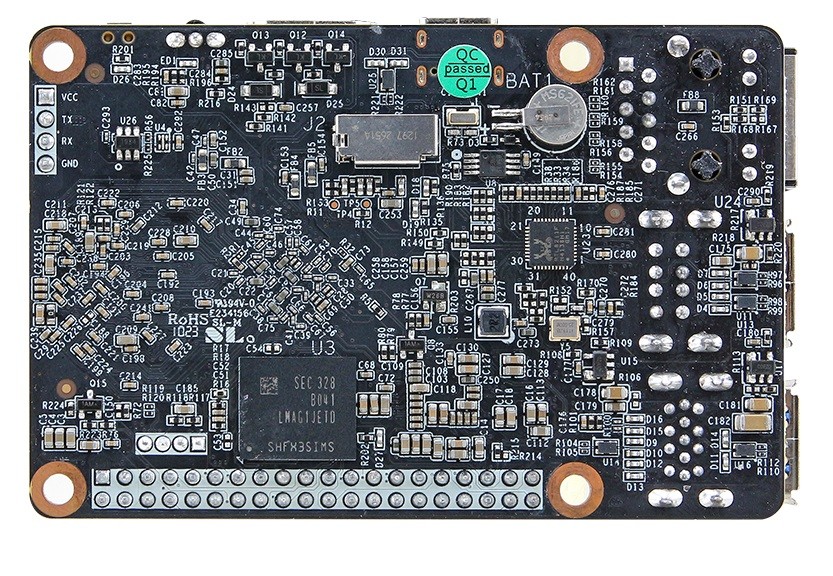

Basismodul: Avalue ACP-IMX8-PI
| Allgemein | ||||
| SKU / Artikelnummer | ACP-IMX8-PI | |||
| Produktgrunddaten | ||||
| Hersteller | Avalue | |||
| Produkt-ID | ACP-IMX8-PI-A1-1R | |||
| System | ||||
| Prozessor | Serie | ARM Cortex-A53 | ||
| Nummer | NXP i.MX 8M Mini | |||
| CPU Kerne | 4 St | |||
| Max. Turbo-Taktfrequenz | 1,8 GHz | |||
| Prozessor 2 | Serie | ARM Cortex-M4 | ||
| Nummer | NXP i.MX 8M Mini | |||
| CPU Kerne | 1 St | |||
| Max. Turbo-Taktfrequenz | 0,4 GHz | |||
| Speicher | Memory Type | DDR4 | ||
| Speicher onBoard | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
| eMMC Version | 5.1 | |||
| Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
| Erweiterung | ||||
| Storage | Micro-SD | |||
| Netzwerk | ||||
| G-LAN | Controller | Anzahl | 1 St | |
| Netzwerk | 1x G-LAN | |||

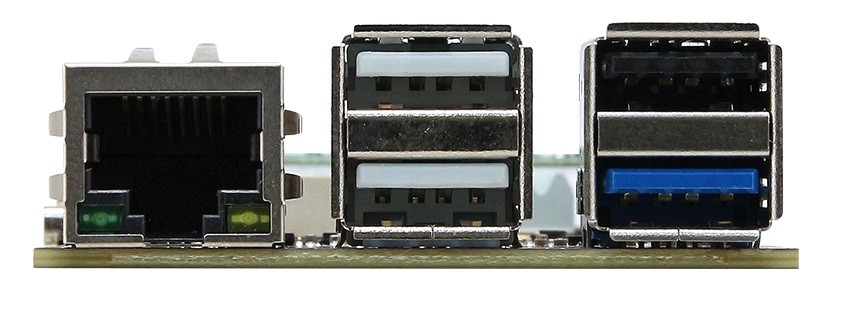

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Audio | Speaker-Out | 1 St | ||
| Ethernet | RJ-45 | 1 St | ||
| USB | USB v2.0 | 4 St | ||
| USBOTG (USB On-The-Go) | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 1 St | |
| Digital I/O | Bits | 8-Bit | 1 St | |
| Image Capture Interfaces | Kamera Eingang 1 | Anzahl | 1 St | |
| Lanes | 2 St | |||
| MIPI-DSI (Display Serial Interface) | 1 St | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 5V | |||
| Anschluss | USB Type C | |||
| Stromstärke | 3 A | |||
| Stromversorgung - Eingang | DC: 5V | |||
| Betriebssysteme / Software | ||||
| Linux | Distribution | Yocto 4.0 | ||
| Unterstützte BS | Linux | |||
| Mechanik / Umgebung | ||||
| Abmaße | Formfaktor | 1,8" | ||
| Breite | 85 mm | |||
| Tiefe | 56 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| RoHS konform | Ja | |||
