2.5" Mainboards
// 2,5" Industrie-Mainboards
// Qualcomm QCS6490
// SoC (System-On-Chip)
// 8 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 3 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (16-Bit)
// Power Supply DC 12V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

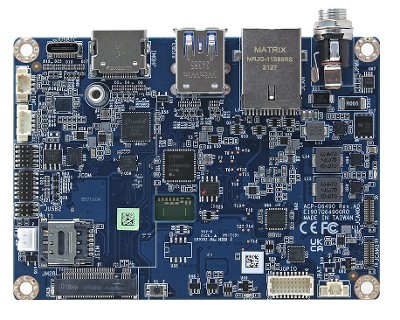

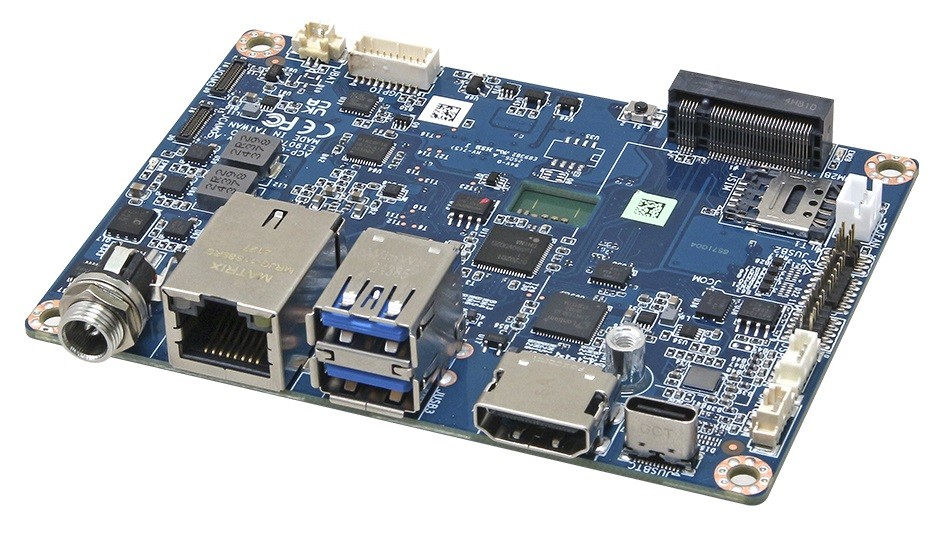

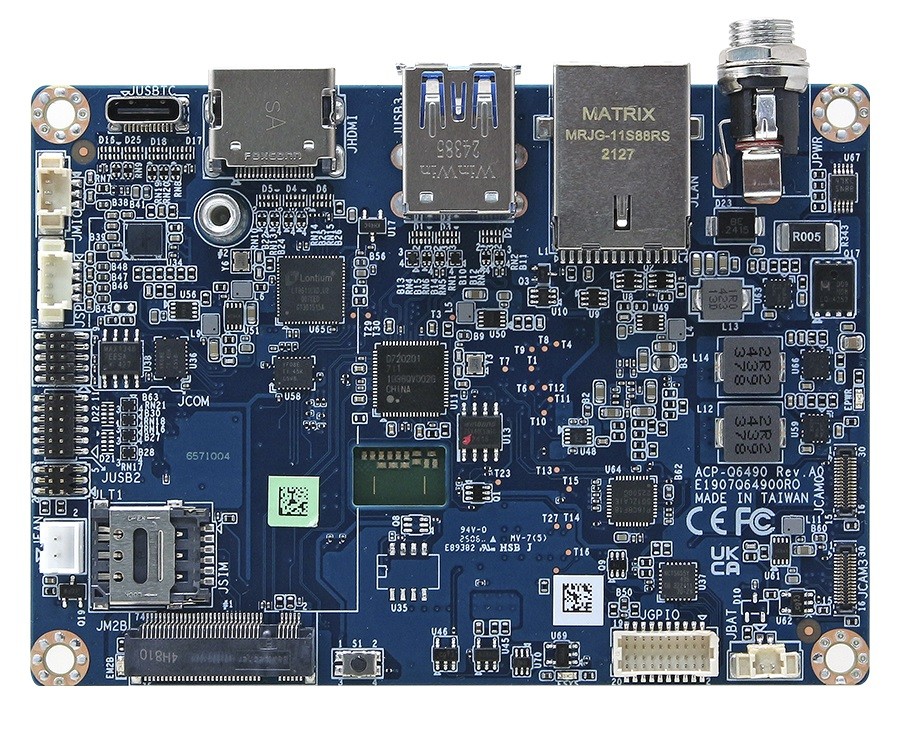

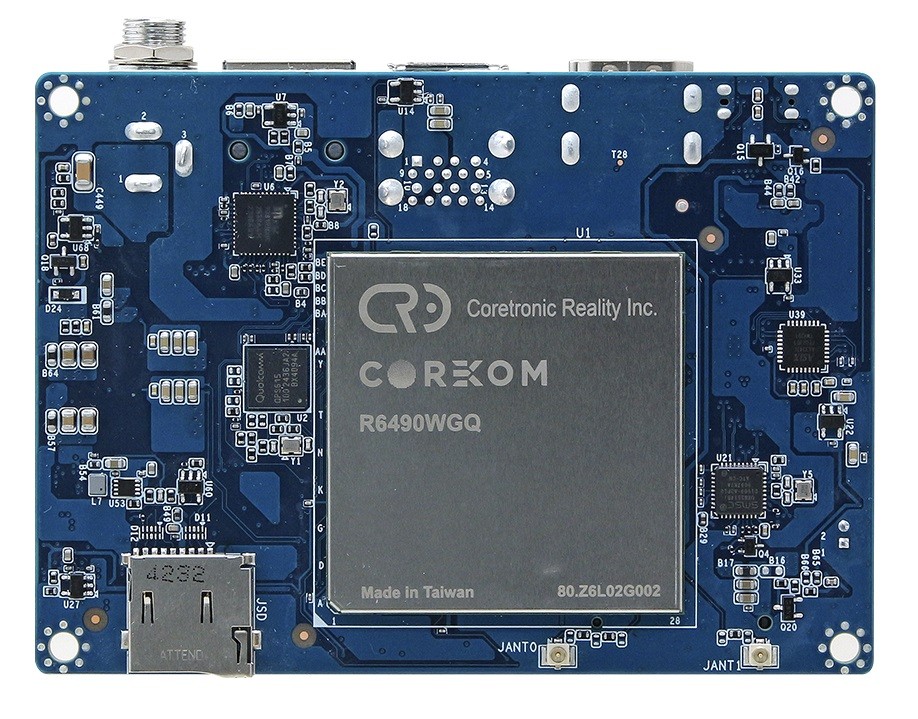

Basismodul: Avalue ACP-Q6490
| Allgemein | ||||
| SKU / Artikelnummer | ACP-Q6490 | |||
| Produktgrunddaten | ||||
| Hersteller | Avalue | |||
| System | ||||
| Prozessor | Nummer | Qualcomm QCS6490 | ||
| CPU Kerne | 8 St | |||
| Max. Turbo-Taktfrequenz | 2,7 GHz | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Memory Type | DDR4 | ||
| Maximaler Ausbau | 16 GB | |||
| Speicher onBoard | 8 GB | |||
| Storage | Universal Flash Storage (UFS) | Speicher | 128 GB | |
| Version | 3.1 | |||
| Grafik | ||||
| Performance | TOPS (INT8) | 12 | ||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module, USB 3.1 Gen2 | |||
| Unterstütze Abmaße | 3052 | |||
| M.2 Key IDs | B | |||
| Storage | Micro-SD (extern) | |||
| Netzwerk | ||||
| Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac/ax | |
| Bluetooth | Versions / Features | v5.2 | ||
| Netzwerk | Wi-Fi, Bluetooth | |||
| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Ethernet | RJ-45 | 1 St | ||
| USB | USB v3.0 | 2 St | ||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 3 St | |
| USB v3.2 | Ports (Typ-C-Buchse) | 1 St | ||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
| Digital I/O | Bits | 16-Bit | 1 St | |
| UART | Tx/Rx | 1 St | ||
| Image Capture Interfaces | Kamera Eingang 1 | Anzahl | 1 St | |
| Lanes | 4 St | |||
| Standard | MIPI CSI-2 | |||
| Kamera Eingang 2 | Anzahl | 1 St | ||
| Lanes | 4 St | |||
| Standard | MIPI CSI-2 | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -20° bis 70°C | ||
| Lagerung | -40° bis 85°C | |||
| Abmaße | Formfaktor | 2,5" | ||
| Breite | 100 mm | |||
| Tiefe | 72 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
Gerne beraten wir Sie persönlich.
