2.5" Mainboards
// 2,5" Industrie-Mainboards
// [Intel Atom X7211RE | Intel Atom X7433RE | Intel Atom x7835RE]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

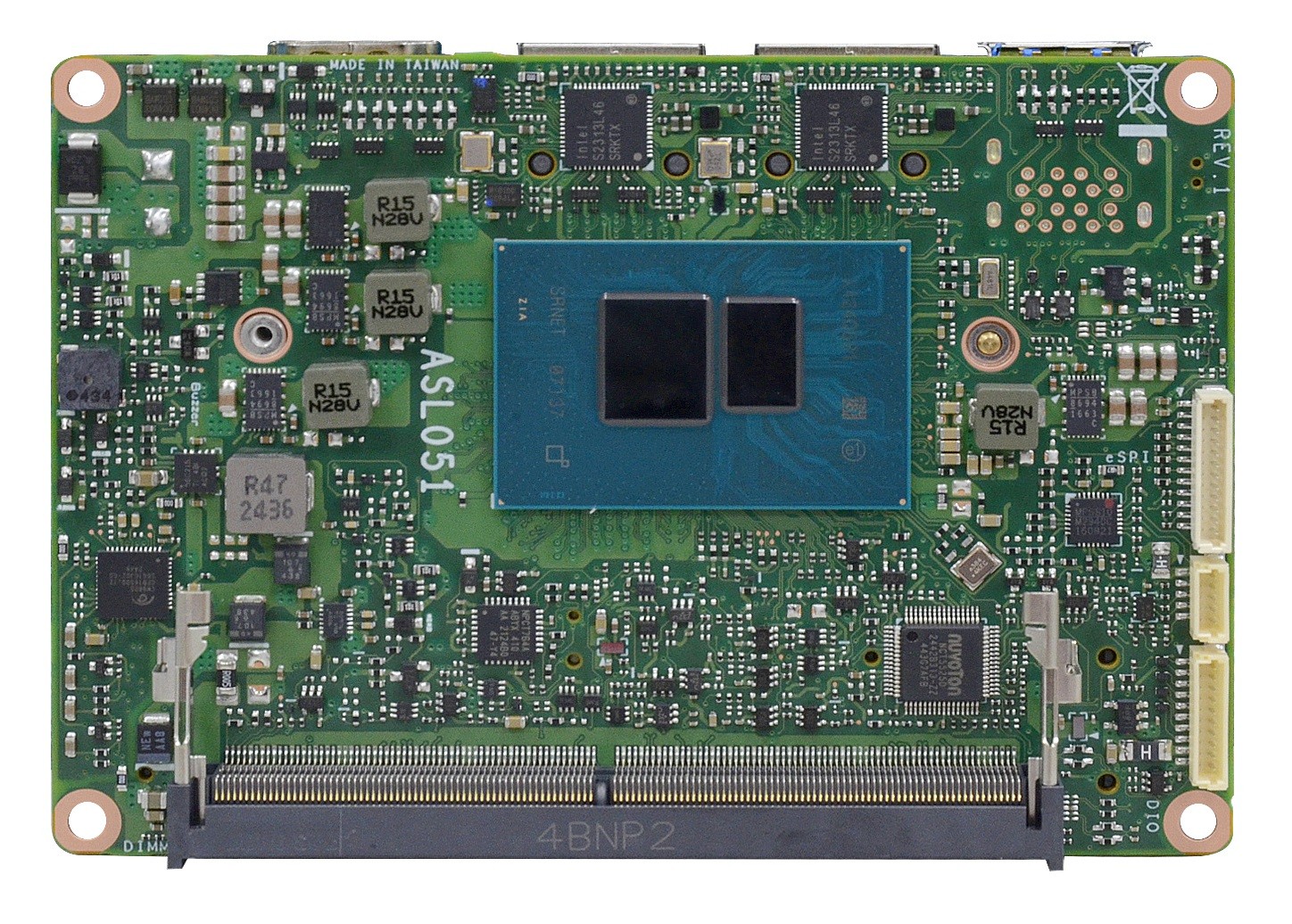

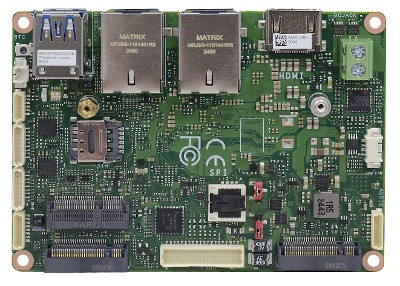

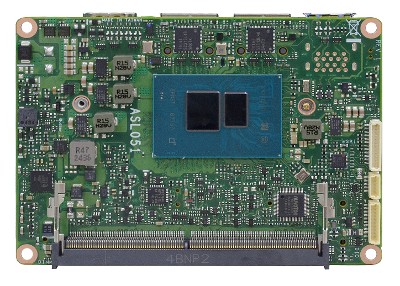

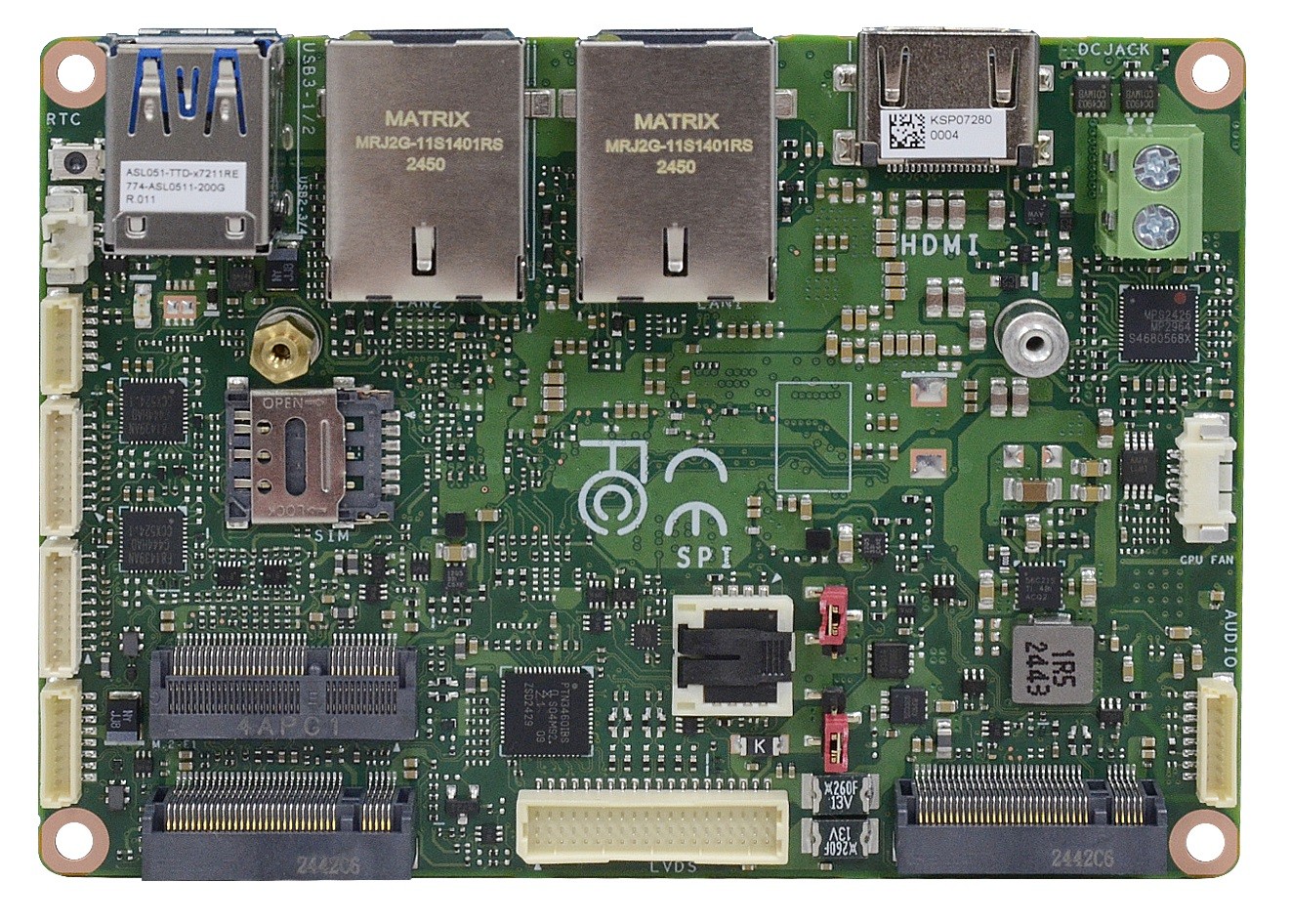

Basismodul: DFI ASL051
Allgemein | ||||
SKU / Artikelnummer | ASL051 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Amston Lake | |||
Nummer | Intel Atom X7211RE, Intel Atom X7433RE, Intel Atom x7835RE | |||
CPU Kerne | 2 St, 4 St, 8 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 9 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 4800 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI SPI 256 Mbit | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 24 Hz | ||
Version | 1.4b | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | NXP PTN3460 | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), SATA III, USB 3.2 Gen1 | |||
Unterstütze Abmaße | 2242, 3042 | |||
Slot 3 | Key ID | B | ||
Interface | PCIe ×2 (Gen. 3), SATA III, USB 2.0 | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

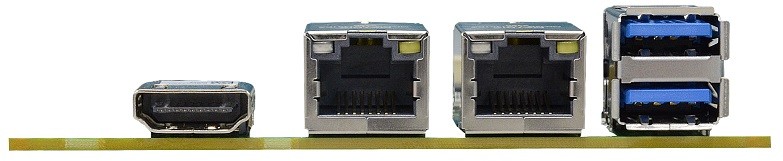

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 2) | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (1.27 mm Pitch) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 2 St | |
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
I²C | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | 2,5" | ||
Breite | 100 mm | |||
Tiefe | 72 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | UKCA | |||
RoHS konform | Ja |
