2.5" Mainboards
// 2,5" Industrie-Mainboards
// 2 x USB (internal)
// 1 x Seriell I/O
// 1 x Mini-PCIe
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

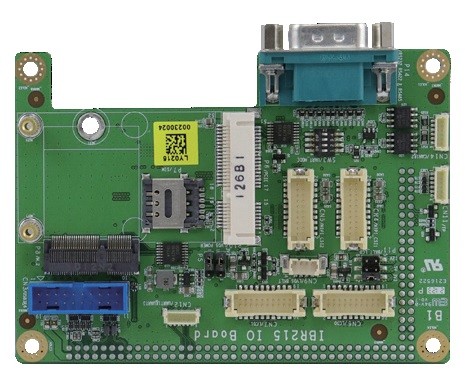

Basismodul: IBASE IBR215-IO
| Allgemein | ||||
| SKU / Artikelnummer | IBR215-IO | |||
| Produktgrunddaten | ||||
| Hersteller | IBASE | |||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | SDIO, UART, WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | Formfaktor (Slot) | Nano SIM | ||
| Externe I/O | ||||
| CAN Bus | Stück | 2 St | ||
| Protokoll | CAN FD | |||
| Externe I/O (Rückseite) | ||||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| Interne I/O | ||||
| USB | USB v3.0 | Ports (2.54 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| I²C | 1 St | |||
| Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 2 St | |
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -40° bis 65°C | ||
| Lagerung | -40° bis 65°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
| Lagerung | 10 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | 2,5" | ||
| Breite | 72 mm | |||
| Tiefe | 100 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
Gerne beraten wir Sie persönlich.
