3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U | Intel Core i7-7600U]
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

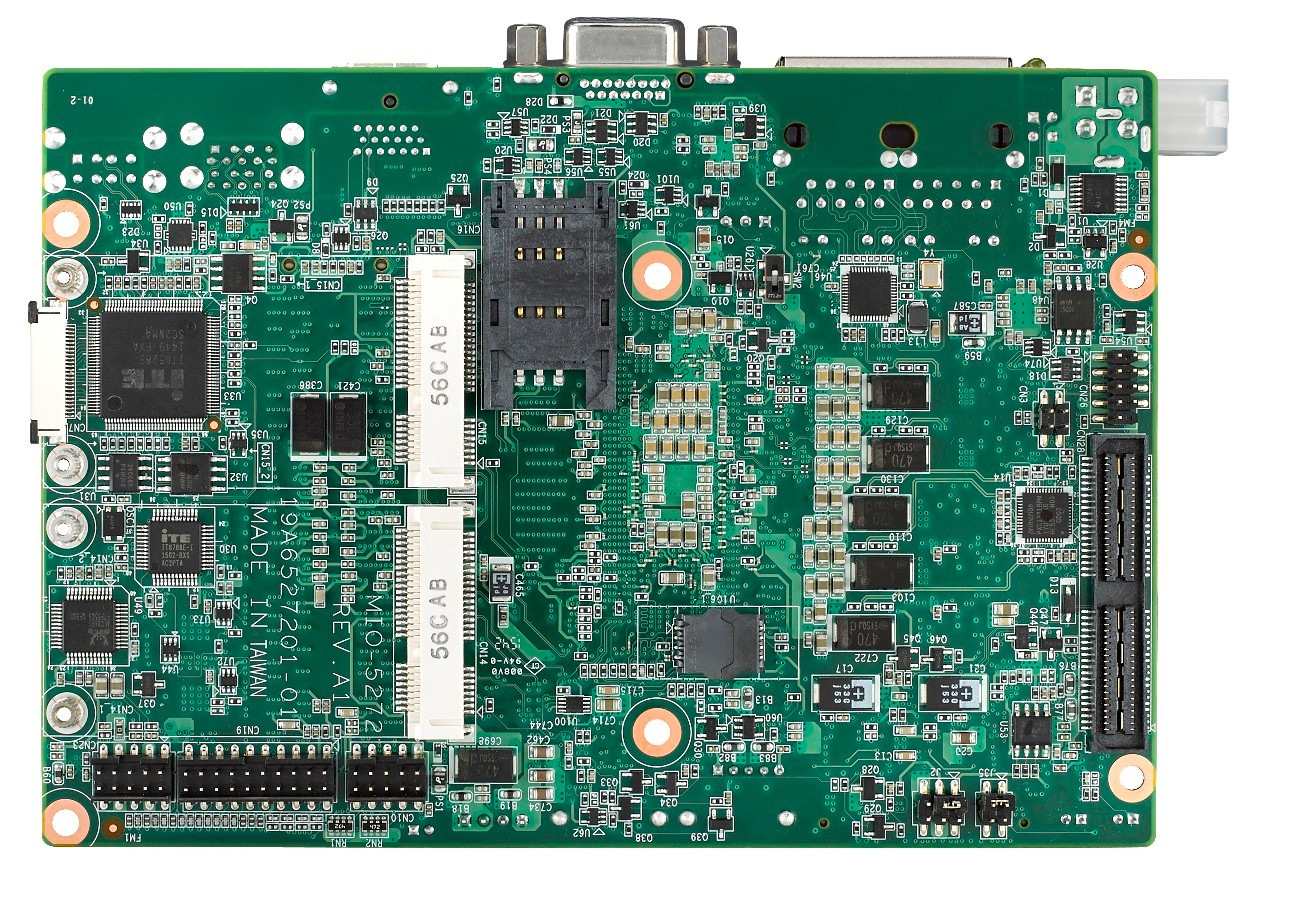

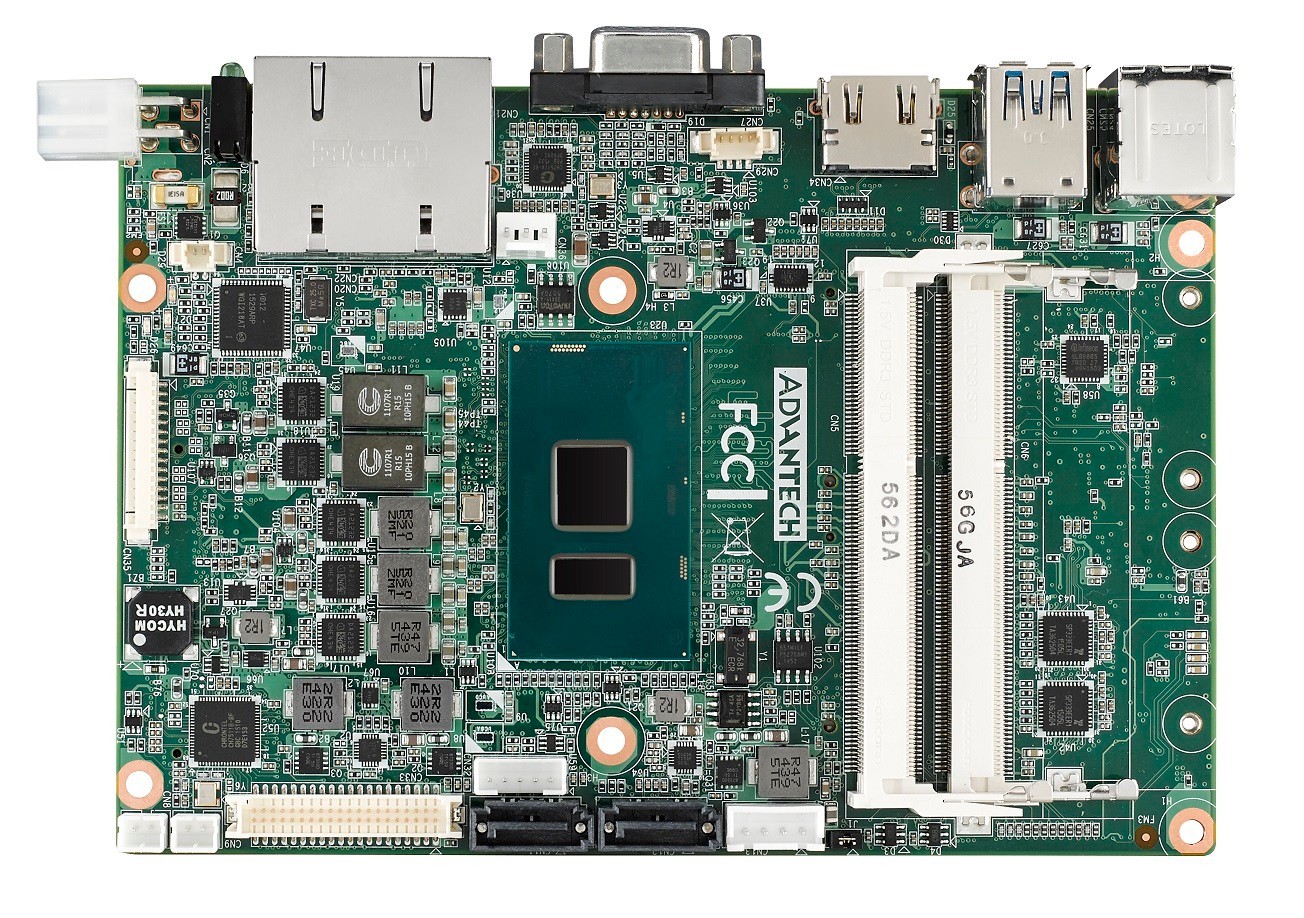

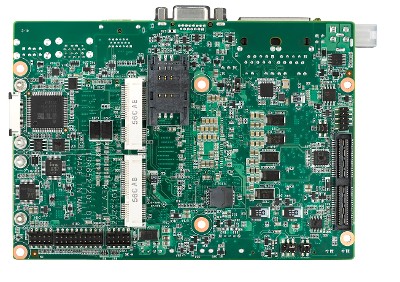

Basismodul: Advantech MIO-5272
| Allgemein | ||||
| SKU / Artikelnummer | MIO-5272 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Mobile | ||
| Serie | Intel Kaby Lake, Intel Skylake | |||
| Nummer | Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U, Intel Core i7-7600U | |||
| CPU Kerne | 2 St | |||
| Threads | 4 St | |||
| Sockel | BGA 1356 | |||
| Basis Frequenz | 2 GHz, 2,3 GHz, 2,6 GHz, 2,8 GHz | |||
| Max. Turbo-Taktfrequenz | 3 GHz, 3,4 GHz, 3,9 GHz, - | |||
| Cache | 3 MB, 4 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM Datarate | 1600 MT/s | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 16 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel HD Graphics 520, Intel HD Graphics 620 | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 24 Hz | ||
| Version | 1.4 | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 48 Bit | |||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 2 St | |
| mSATA Unterstützung | Ja | |||
| PCIe Schnittstellen | 2x Mini-PCIe | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Storage | mSATA | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219 PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210 PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

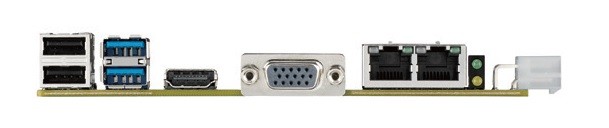

| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| HDMI | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 2 St | ||
| USB v3.0 | 2 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 / 422 / 485 | Ports (Sonderanschluss) | 2 St | |
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS | Dual Channel | |||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| I²C | 1 St | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Auf Anfrage | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | 4 Pin Anschluss (vertikal) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
| Linux | Distribution | Ubuntu 20.04 | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C, -20° bis 80°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 102 mm | |||
| Höhe | 26,3 mm | |||
| Gewicht | 670 g | |||
| Statusanzeigen | Storage | 1 St | ||
| Power | 1 St | |||
| Zubehör | mit Heatsink (H: 24 mm) Part No.1960068763T011, mit Heatsink (H: 34 mm) Part No.1960072272T001 | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
