3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Atom X7211RE | Intel Atom X7433RE | Intel Atom x7835RE | Intel Core i3-N305 | Intel N97]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

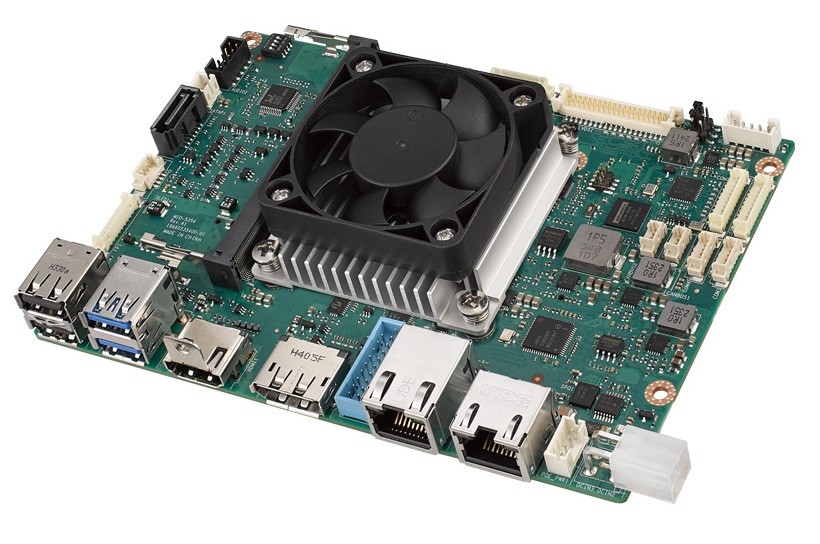

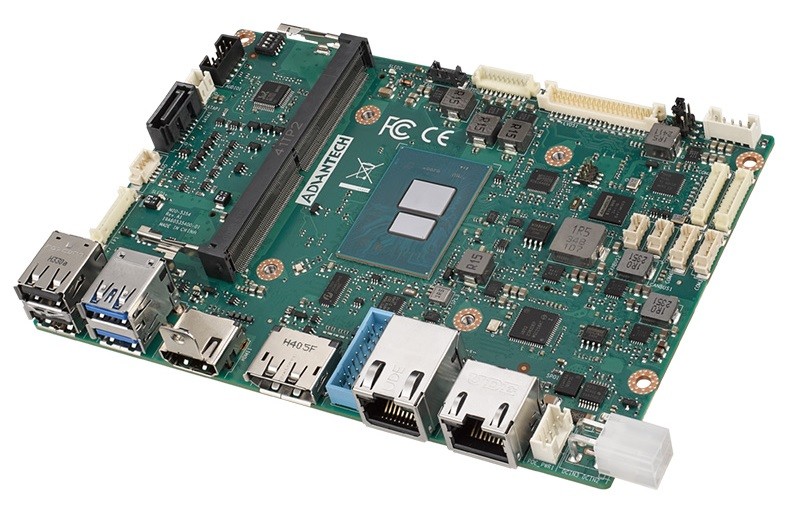

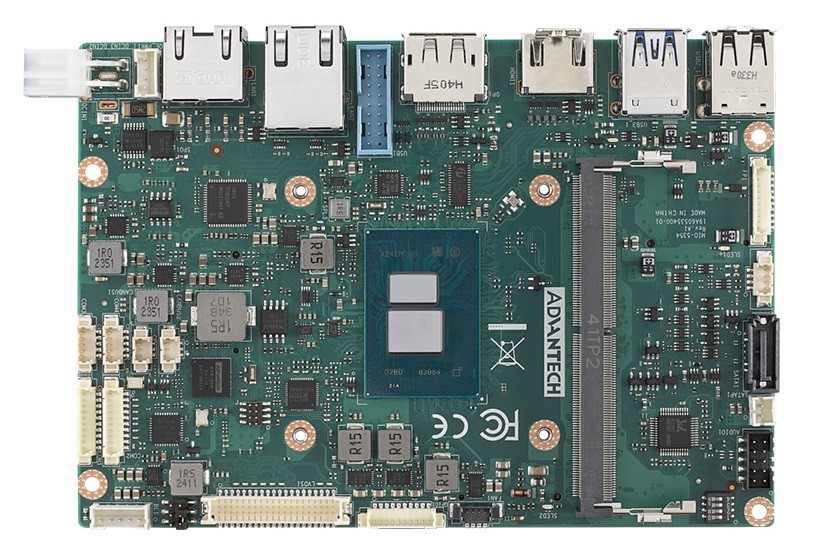

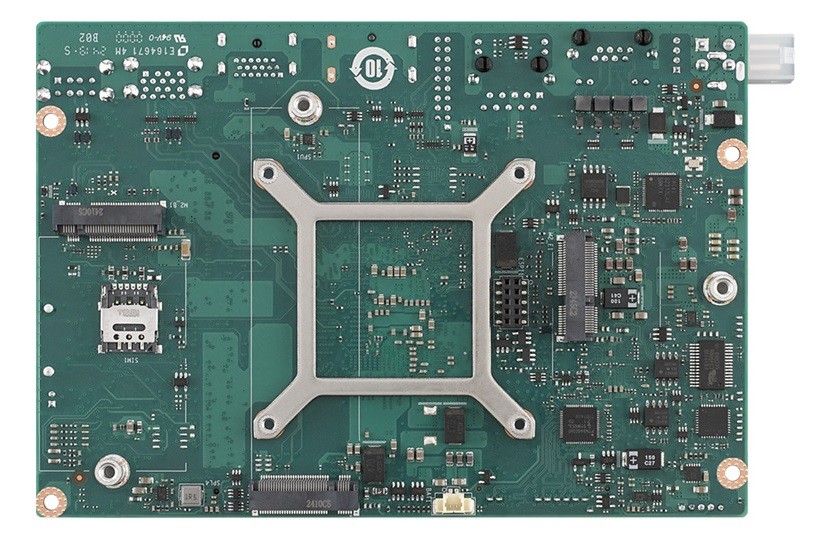

Basismodul: Advantech MIO-5354
| Allgemein | ||||
| SKU / Artikelnummer | MIO-5354 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Alder Lake, Intel Amston Lake | |||
| Nummer | Intel Atom X7211RE, Intel Atom X7433RE, Intel Atom x7835RE, Intel Core i3-N305, Intel N97 | |||
| CPU Kerne | 2 St, 4 St, 8 St | |||
| Threads | 8 St, - | |||
| Sockel | BGA 1264 | |||
| Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz, 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 9 W, 12 W, 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 16 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 2.0 | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Version | 1.4a | |||
| LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | NXP PTN3460 | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen. 3), SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, USB 2.0, USB 3.0 | |||
| Unterstütze Abmaße | 3052 | |||
| M.2 Key IDs | B, E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

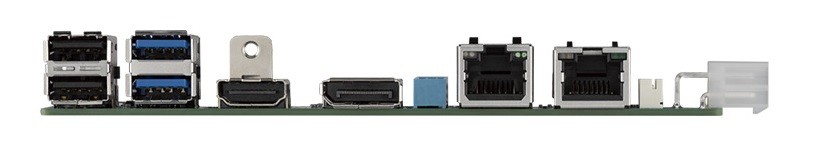

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Displayport | 1 St | |||
| Ethernet | RJ-45 | 1 St | ||
| RJ-45 mit OOB | 1 St | |||
| USB | USB v2.0 | 2 St | ||
| USB v3.2 (Gen 1) | 2 St | |||
| Interne I/O | ||||
| USB | USB v3.0 | Ports (Typ-A-Buchse) | 2 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| I²C | 1 St | |||
| CAN Bus | Channel | 2 St | ||
| Protokoll | CAN-FD | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | 2 Pin Anschluss (vertikal) | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung), Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 102 mm | |||
| Vibration | Vibration | 3G, 10~500 Hz | ||
| Gewicht | 145 g | |||
| Zubehör | mit Active CPU Cooler Part No.1970005931T001, mit Passive CPU Heatsink Part No.1970005854T001 | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | EN 61000-4-2 (ESD) | |||
| RoHS konform | Ja | |||
