3,5" Mainboards
// 3,5" Industrie-Mainboards
// Qualcomm QCS6490
// Qualcomm QCS6490
// 8 GB
// LVDS
// 2 x G-LAN (Back side)
// 1 x USB (Front page)
// 4 x USB (Back side)
// 1 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

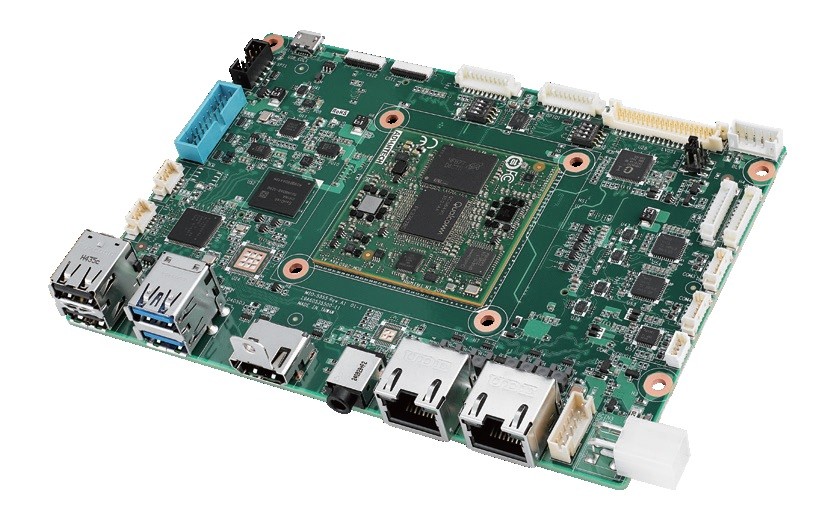

Basismodul: Advantech MIO-5355
Allgemein | ||||
SKU / Artikelnummer | MIO-5355 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | ARM Cortex-A78 | ||
Nummer | Qualcomm QCS6490 | |||
CPU Kerne | 4 St | |||
Max. Turbo-Taktfrequenz | 2,7 GHz | |||
Prozessor 2 | Serie | ARM Cortex-A55 | ||
Nummer | Qualcomm QCS6490 | |||
CPU Kerne | 4 St | |||
Max. Turbo-Taktfrequenz | 1,9 GHz | |||
Speicher | Memory Type | DDR5 | ||
Speicher onBoard | 8 GB | |||
Storage | Universal Flash Storage (UFS) | Speicher | 128 GB | |
Version | 3.1 | |||
Grafik | ||||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0 | |||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bridge | Chrontel CH7513A-BF | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | PCIe ×2 | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 3052 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2, Micro-SD | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Realtek RTL8211FSI (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Frontseite) | ||||
USB | USBOTG (USB On-The-Go) | 1 St | ||

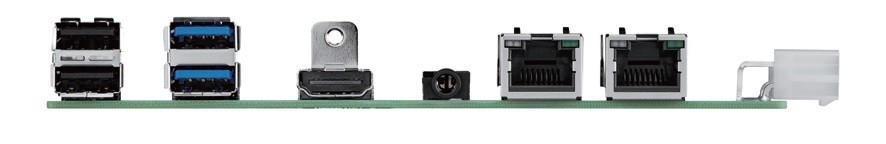

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 mit OOB | 2 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.0 | 2 St | |||
Interne I/O | ||||
USB | USB v3.1 | Key-A Header (20-Pin) | 1 St | |
Seriell | RS-232 | Ports (Sonderanschluss) | 2 St | |
RS-232 / 422 / 485 | Ports (Sonderanschluss) | 2 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
I²C | 2 St | |||
Image Capture Interfaces | Kamera Eingang 1 | Anzahl | 2 St | |
Lanes | 4 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 4-Pin ATX (12V DC) | |
Stromversorgung - Eingang | ATX: 4-Pin ATX (12V DC) | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 11 IoT | wird unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -20° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Lagerung | 5 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | 3,5" | ||
Breite | 146 mm | |||
Tiefe | 102 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | EN 61000-4-2 (ESD) | |||
RoHS konform | Ja |
