3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Core i3-1215UE | Intel Core i5-1245UE | Intel Core i7-1265UE | Intel Core i7-1270PE]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 5 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

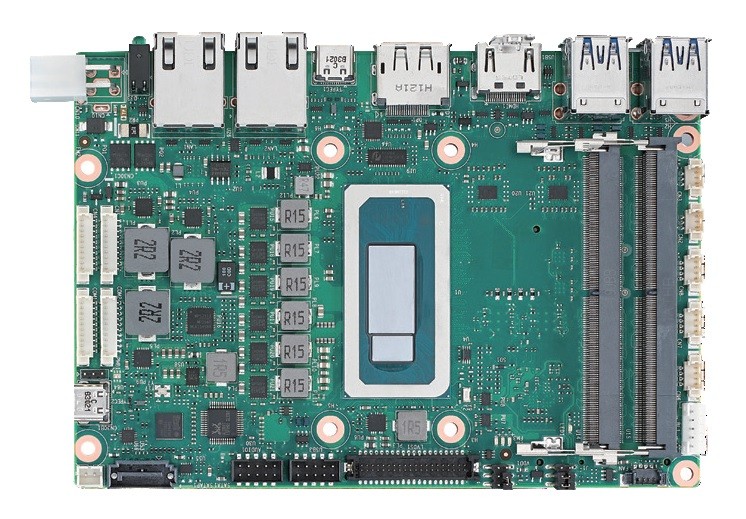

Basismodul: Advantech MIO-5377
| Allgemein | ||||
| SKU / Artikelnummer | MIO-5377 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Serie | Intel Alder Lake | ||
| Nummer | Intel Core i3-1215UE, Intel Core i5-1245UE, Intel Core i7-1265UE, Intel Core i7-1270PE | |||
| CPU Kerne | 6 St, 10 St, 12 St | |||
| Threads | 8 St, 12 St, 16 St | |||
| Performance-core Max Turbo Frequenz | 4,4 GHz, 4,5 GHz, 4,7 GHz | |||
| Efficient-core Max Turbo Frequenz | 3,3 GHz, 3,5 GHz | |||
| Cache | 10 MB, 12 MB, 18 MB | |||
| Grundleistungsaufnahme des Prozessors | 15 W, 28 W | |||
| Maximale Turbo-Leistungsaufnahme | 55 W, 64 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 4 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 2.0b | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Version | 1.4a | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | NXP PTN3460 | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, PCIe ×1 (Gen. 3), SATA III, USB 2.0 | |||
| Unterstütze Abmaße | 3042 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 4) | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||
| Externe I/O (Rückseite) | ||||

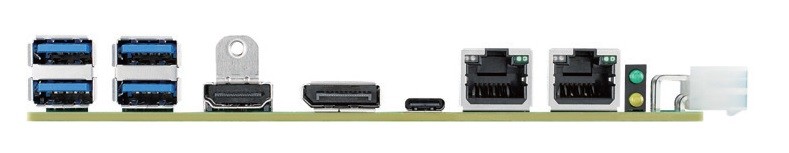

| Anzeige | HDMI | 1 St | ||
| Displayport | 1 St | |||
| DP USB-C | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.2 (Gen 2) | 4 St | ||
| USB v3.2 (Gen 2, Type C) | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| USB v3.2 | Ports (Typ-C-Buchse) | 1 St | ||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
| RS-232 / 422 / 485 | Ports (Sonderanschluss) | 2 St | ||
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS | Dual Channel | |||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| I²C | 3 St | |||
| CAN Bus | Version 2.0B (Interface) | 2 St | ||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | 4 Pin Anschluss (vertikal) | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung), Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 102 mm | |||
| Vibration | Vibration | 3G, 10~500 Hz | ||
| Statusanzeigen | Storage | 1 St | ||
| Power | 1 St | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
