3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Core i3-7102E | Intel Core i5-7442EQ | Intel Core i7-7820EQ | Intel Xeon E3-1505M v6]
// [Intel CM238 | Intel QM175]
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

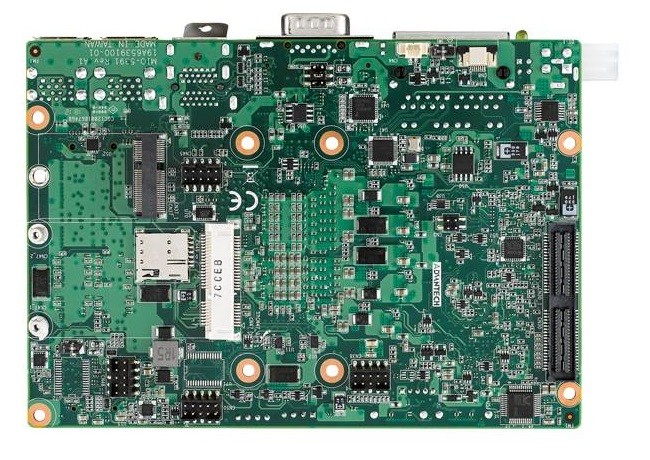

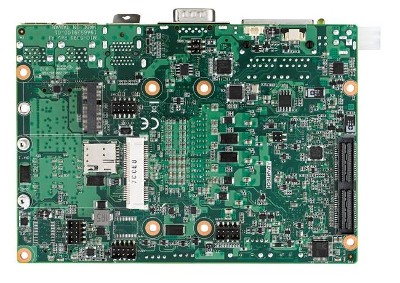

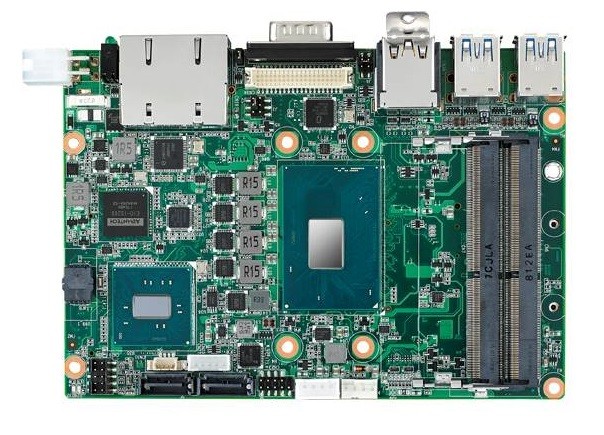

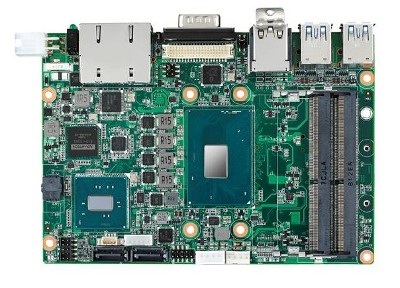

Basismodul: Advantech MIO-5391
| Allgemein | ||||
| SKU / Artikelnummer | MIO-5391 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Kaby Lake | |||
| Nummer | Intel Core i3-7102E, Intel Core i5-7442EQ, Intel Core i7-7820EQ, Intel Xeon E3-1505M v6 | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 4 St, 8 St | |||
| Sockel | BGA 1440 | |||
| Basis Frequenz | 2,1 GHz, 3 GHz | |||
| Max. Turbo-Taktfrequenz | 2,9 GHz, 3,7 GHz, 4 GHz, - | |||
| Cache | 3 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 25 W, 45 W | |||
| Chipsatz | Intel CM238, Intel QM175 | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 2400 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 32 GB | |||
| ECC | wird nicht unterstützt, wird unterstützt | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel HD Graphics 630, Intel HD Graphics P630 | |||
| HDMI | Maximale Auflösung | 4096 x 2304 bei 30 Hz | ||
| Version | 1.4 | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 48 Bit | |||
| Bridge | Chrontel CH7511B | |||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| mSATA Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Storage | mSATA | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

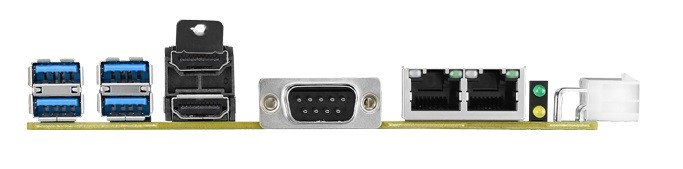

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 2 St | ||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| USB | USB v3.0 | 4 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | |
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 16-Bit | 1 St | |
| CAN Bus | Version 2.0B (mit Isolation) | 1 St | ||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Auf Anfrage | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | 4 Pin Anschluss (vertikal) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung), Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 102 mm | |||
| Statusanzeigen | Storage | 1 St | ||
| Power | 1 St | |||
| Zubehör | mit Active Cooler Part No.1960089060T001, mit Passive Heatsink Part No.1960089142T001 | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
