3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Core i5-8400H | Intel Core i7-9850HE | Intel Core i7-9850HL | Intel Xeon E-2276ME]
// [Intel CM246 | Intel QM370]
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

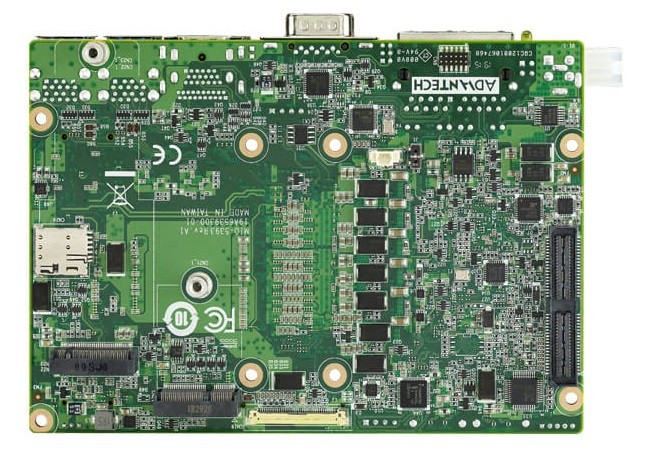

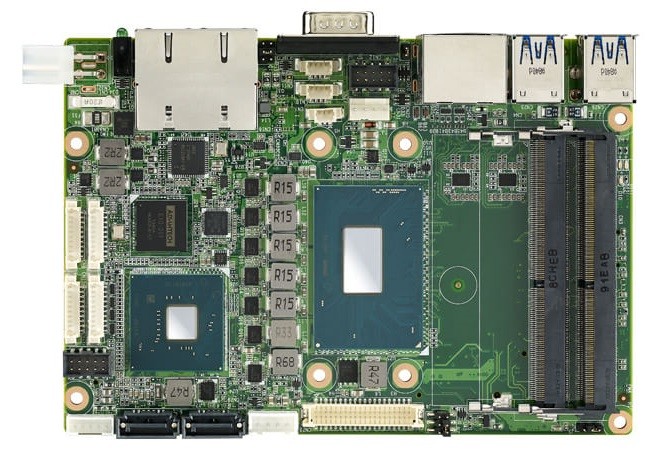

Basismodul: Advantech MIO-5393
| Allgemein | ||||
| SKU / Artikelnummer | MIO-5393 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Coffee Lake | |||
| Nummer | Intel Core i5-8400H, Intel Core i7-9850HE, Intel Core i7-9850HL, Intel Xeon E-2276ME | |||
| CPU Kerne | 4 St, 6 St | |||
| Threads | 8 St, 12 St | |||
| Sockel | BGA 1440 | |||
| Basis Frequenz | 1,9 GHz, 2,5 GHz, 2,7 GHz, 2,8 GHz | |||
| Max. Turbo-Taktfrequenz | 4,1 GHz, 4,2 GHz, 4,4 GHz, 4,5 GHz | |||
| Cache | 8 MB, 9 MB, 12 MB | |||
| Thermal Design Power (TDP) | 25 W, 45 W | |||
| Chipsatz | Intel CM246, Intel QM370 | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 2400 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | wird nicht unterstützt, wird unterstützt | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics 630, Intel UHD Graphics P630 | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
| Version | 1.4a | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Version | 1.2 | |||
| Dual Mode | Ja (DP++) | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 48 Bit | |||
| Bridge | NXP PTN3460 | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×2 (Gen. 3), SATA III, USB 2.0 | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | B, E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219 PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

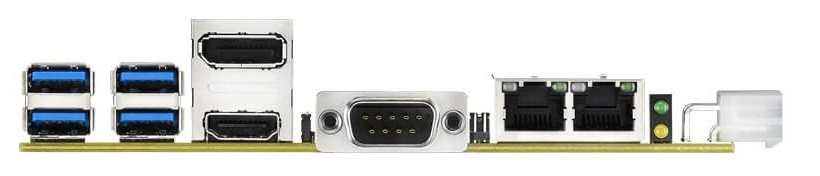

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| DP++ | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| USB | USB v3.1 Gen. 2 | 4 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| Seriell | RS-232 / 422 / 485 | Ports (Sonderanschluss) | 1 St | |
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 2 St | |
| SMBus | 1 St | |||
| LPC | 1 St | |||
| I²C | 1 St | |||
| CAN Bus | Version 2.0B (mit Isolation) | 1 St | ||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | 4 Pin Anschluss (vertikal) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung), Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 102 mm | |||
| Vibration | Vibration | 3G, 10~500 Hz | ||
| Statusanzeigen | Storage | 1 St | ||
| Power | 1 St | |||
| Zubehör | mit Active Cooler (43mm height) Part No.1970004482T000, mit Passive Heatsink Part No.1960094210N000 | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
