3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Rockchip RK3399 | Rockchip RK3399K]
// SoC (System-On-Chip)
// [2 GB | 4 GB]
// LVDS
// [1 | 2] x G-LAN (Back side)
// 3 x USB (Back side)
// 3 x USB (internal)
// [2 | 4] x Seriell I/O
// [16 GB | 32 GB] eMMC
// 1 x Mini-PCIe
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

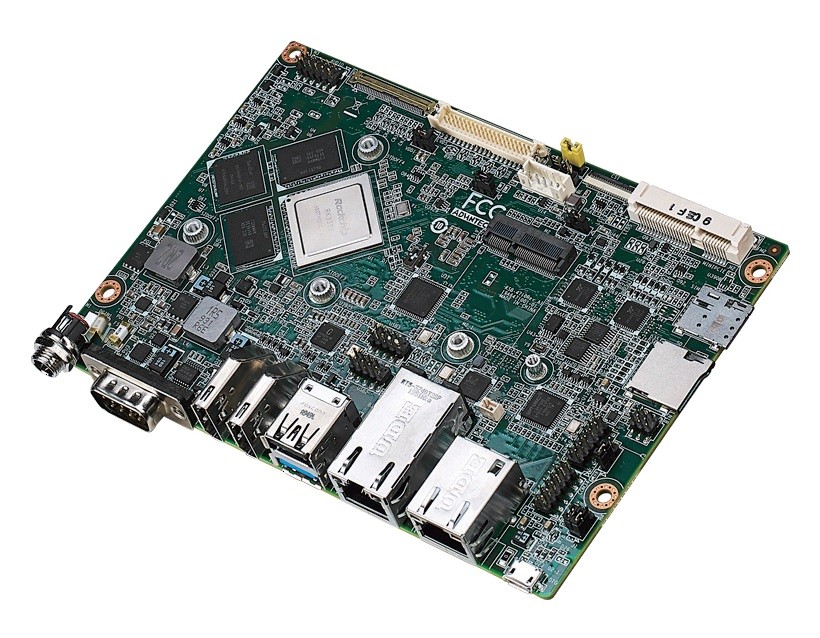

Basismodul: Advantech RSB-4710
| Allgemein | ||||
| SKU / Artikelnummer | RSB-4710 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | ARM Cortex-A72 | |||
| Nummer | Rockchip RK3399, Rockchip RK3399K | |||
| CPU Kerne | 2 St | |||
| Max. Turbo-Taktfrequenz | 1,8 GHz | |||
| Prozessor 2 | Serie | ARM Cortex-A53 | ||
| CPU Kerne | 4 St | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Memory Type | DDR4 | ||
| DIMM Datarate | 1333 MT/s | |||
| Speicher onBoard | 2 GB, 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB, 32 GB | ||
| Grafik | ||||
| HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Erweiterung | ||||
| Mini-PCIe | Halbe Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 2), SDIO, UART, USB 2.0, WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | Micro-SD | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Realtek RTL8211FSI (10/100/1000 Mbps) | |
| Anzahl | 1 St, 2 St | |||

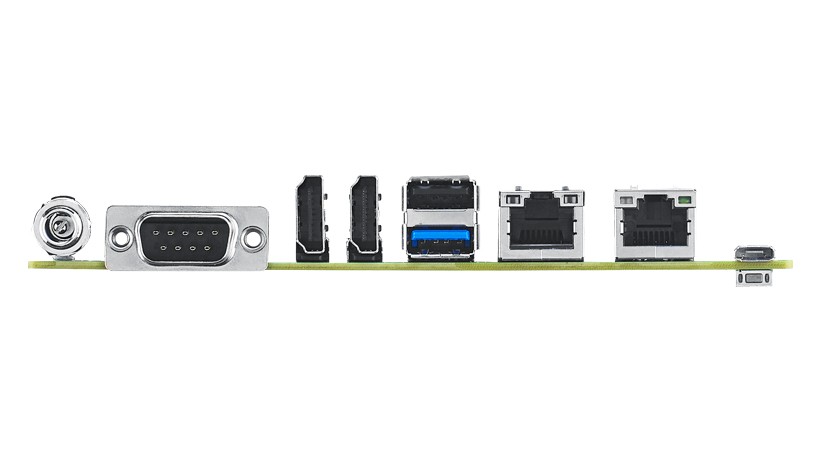

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St, 2 St | ||
| Ethernet | RJ-45 | 1 St, 2 St | ||
| Seriell | RS-232 | DB-9 | 1 St | |
| RS-232 / 422 / 485 | DB-9 | 1 St | ||
| USB | USB v2.0 | 1 St | ||
| USB v3.0 | 1 St | |||
| USBOTG (USB On-The-Go) | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 3 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St, 4 St | |
| RS-232 / 485 | Ports (Sonderanschluss) | 2 St, - | ||
| Anzeige | LVDS Anschlüsse | 1 St, - | ||
| eDP (embedded Display Port) Lanes | 1 St | |||
| Digital I/O | Bits | 4-Bit | 1 St | |
| Serial Peripheral Interface (SPI) | 1 St | |||
| I²C | 1 St | |||
| Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Amplifier | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Betriebssysteme / Software | ||||
| Linux | Distribution | Debian 9, Debian 10 | ||
| Android | Release | 10 | ||
| Unterstützte BS | Android, Linux | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C, -20° bis 85°C | ||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 102 mm | |||
| Bedienelemente | Reset | 1 St | ||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
