3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Core 3 Prozessor N355 | Intel N150 | Intel N250]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 3 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

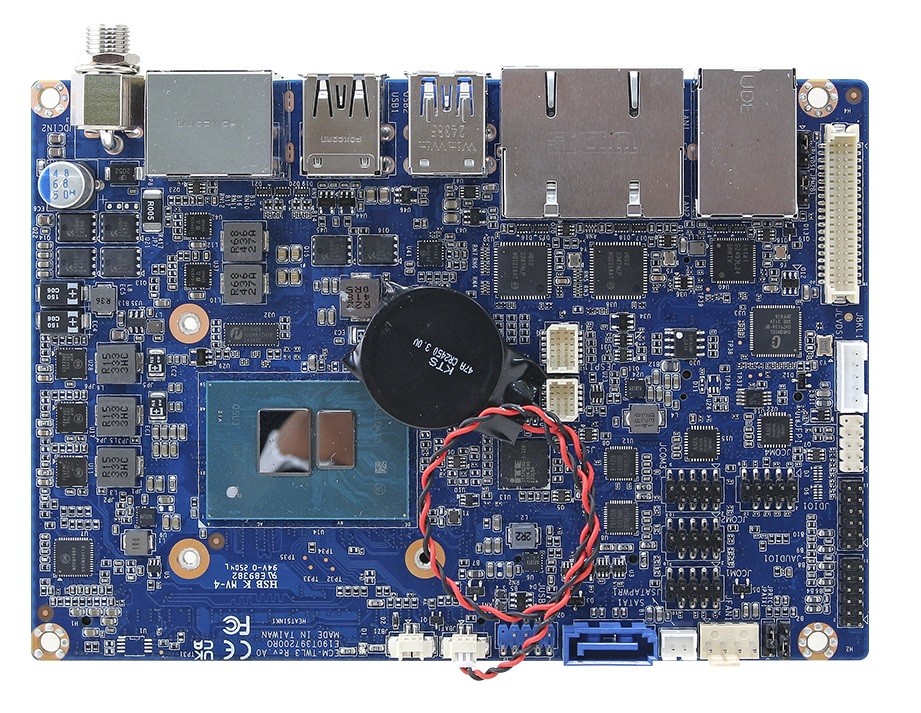

Basismodul: Avalue ECM-TWL3
| Allgemein | ||||
| SKU / Artikelnummer | ECM-TWL3 | |||
| Produktgrunddaten | ||||
| Hersteller | Avalue | |||
| System | ||||
| Prozessor | Vertikales Segment | Mobile | ||
| Serie | Intel Twin Lake | |||
| Nummer | Intel Core 3 Prozessor N355, Intel N150, Intel N250 | |||
| CPU Kerne | 4 St, 8 St | |||
| Threads | 4 St, 8 St | |||
| Sockel | BGA 1264 | |||
| Max. Turbo-Taktfrequenz | 3,6 GHz, 3,8 GHz, 3,9 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 16 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O Controller | Controller 1 | I/O Controller | ITE IT5782VG | |
| Grafik | ||||
| Prozessor | Intel Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 2.0b | |||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 1.4a | |||
| LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | Chrontel CH7513A-BF | |||
| eDP (embedded Display Port) | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
| Erweiterung | ||||

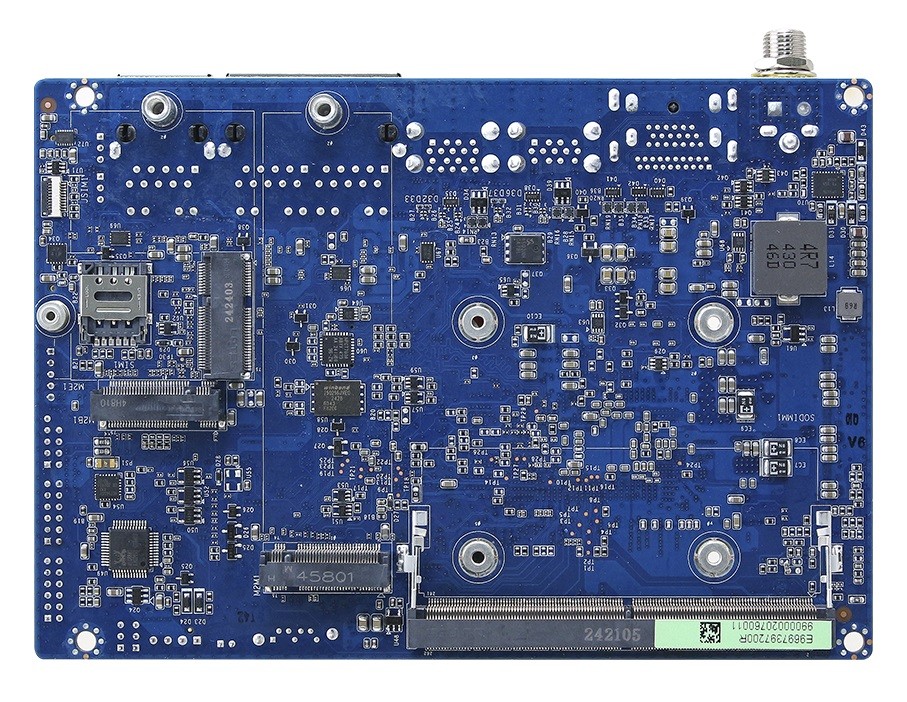

| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module, SATA III, USB 3.2 Gen1 | |||
| Unterstütze Abmaße | 3042, 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | CNVi, WLAN | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×1 (Gen. 3), SATA III | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 2 St | |||
| Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 3x G-LAN | |||

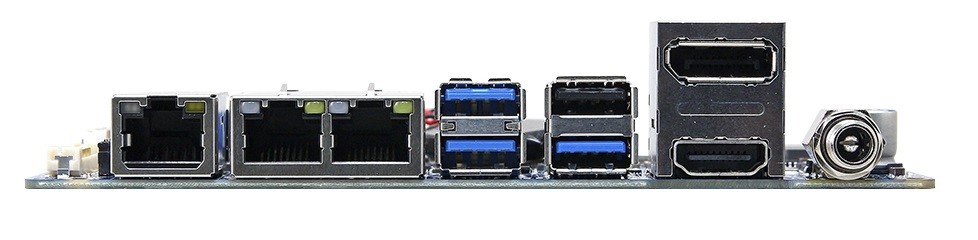

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Displayport | 1 St | |||
| Ethernet | RJ-45 | 3 St | ||
| USB | USB v2.0 | 1 St | ||
| USB v3.2 (Gen 2) | 3 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (2.54 mm Pitch) | 2 St | |
| RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 2 St | ||
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| eDP (embedded Display Port) Lanes | 2 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| Serial Peripheral Interface (SPI) | 2 St | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Nuvoton NPCT760AABYX | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 9~36V | |||
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | DC: 9~36V | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 11 | Wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 101 mm | |||
| Gewicht | 200 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
