3,5" Mainboards
// 3,5" Industrie-Mainboards
// Rockchip RK3568J
// 4 GB
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// 64 GB eMMC
// Power Supply DC Wide range 12~24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

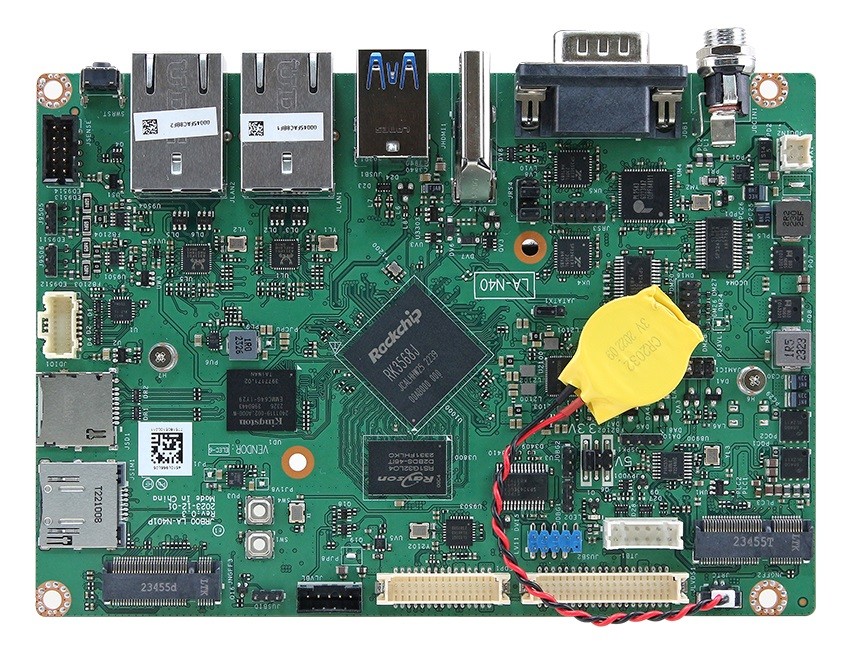

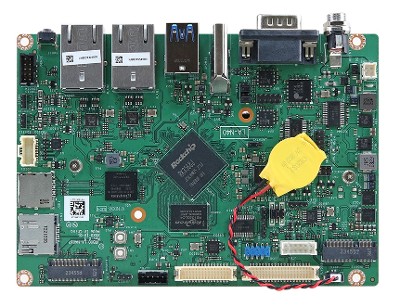

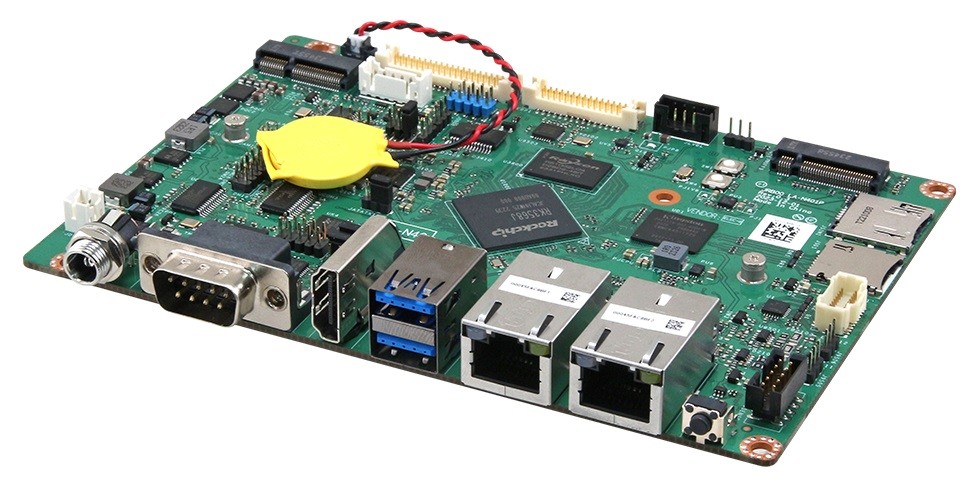

Basismodul: Avalue RSC-3568J
| Allgemein | ||||
| SKU / Artikelnummer | RSC-3568J | |||
| Produktgrunddaten | ||||
| Hersteller | Avalue | |||
| Produkt-ID | RSC-3568J-6W-A104R | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | ARM Cortex-A55 | |||
| Nummer | Rockchip RK3568J | |||
| CPU Kerne | 4 St | |||
| Basis Frequenz | 1,8 GHz | |||
| Speicher | Memory Type | DDR4 | ||
| Speicher onBoard | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| Storage | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Grafik | ||||
| HDMI | Version | 2.0 | ||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WLAN | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, SATA III | |||
| Unterstütze Abmaße | 3042 | |||
| M.2 Key IDs | B, E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Storage | M.2, Micro-SD, SD / MMC-Karte | |||

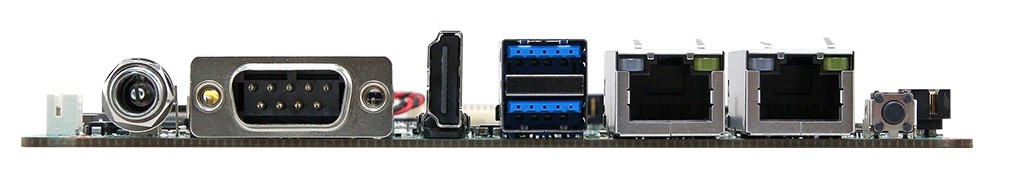

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| USB | USB v3.0 | 1 St | ||
| USBOTG (USB On-The-Go) | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 3 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS Anschlüsse | 1 St | |||
| eDP (embedded Display Port) Lanes | 1 St | |||
| Digital I/O | Bits | 4-Bit | 1 St | |
| I²C | 1 St | |||
| Image Capture Interfaces | MIPI-DSI (Display Serial Interface) | 1 St | ||
| CAN Bus | Version 2.0B (Interface) | 2 St | ||
| Audio | Amplifier | 1 St | ||
| Debug-Port | wird unterstützt | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | DC Jack | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Linux | Distribution | Debian 11 | ||
| Android | Release | 13 | ||
| Unterstützte BS | Linux, Android | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 101 mm | |||
| Gewicht | 160 g | |||
| Bedienelemente | Reset | 1 St | ||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
