3,5" Mainboards
// 3,5" Industrie-Mainboards
// [NXP i.MX 6DualLite | NXP i.MX 6Quad]
// 1 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 1 x USB
// 2 x USB (internal)
// 1 x Seriell I/O
// 4 GB eMMC
// Digital I/O (10-Bit)
// 1 x Mini-PCIe
// Power Supply DC [12~26V | -]
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

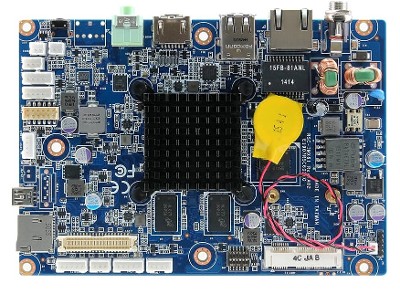

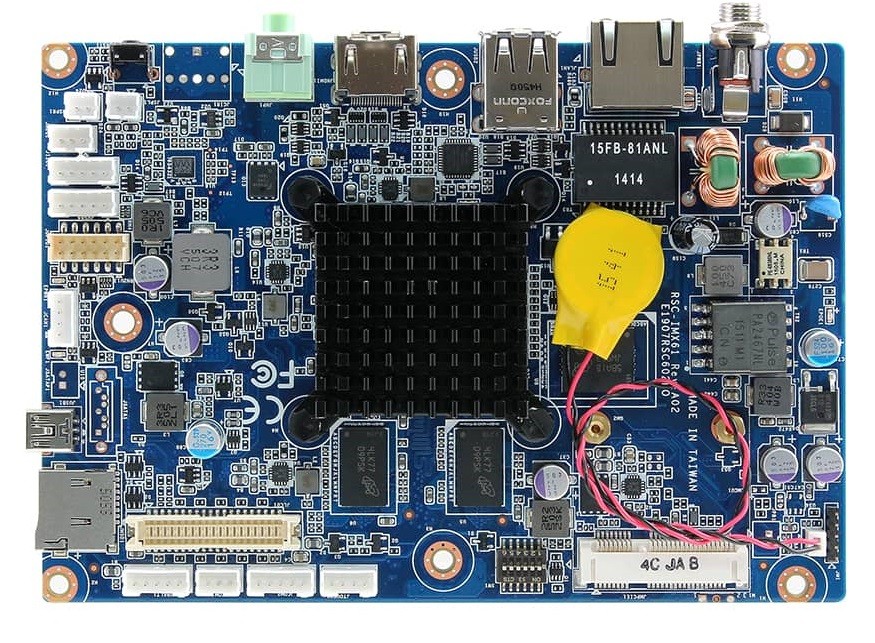

Basismodul: Avalue RSC-IMX61
| Allgemein | ||||
| SKU / Artikelnummer | RSC-IMX61 | |||
| Produktgrunddaten | ||||
| Hersteller | Avalue | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | ARM Cortex-A9 | |||
| Nummer | NXP i.MX 6DualLite, NXP i.MX 6Quad | |||
| CPU Kerne | 2 St, 4 St | |||
| Basis Frequenz | 1 GHz | |||
| Speicher | Memory Type | DDR3 | ||
| Maximaler Ausbau | 2 GB | |||
| Speicher onBoard | 1 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 4 GB | ||
| Storage | Embedded MultiMedia Card (eMMC) 4 GB | |||
| Grafik | ||||
| Bildschirme (Multidisplay) | 2 Displays | |||
| LVDS | Bits | 24 Bit | ||
| Erweiterung | ||||
| Mini-PCIe | Halbe Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| Storage | Micro-SD | |||
| Audio | ||||
| Chipsatz | Wolfson WM8962 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Micrel KSZ9031 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Netzwerk | 1x G-LAN | |||
| Externe I/O | ||||
| USB | USBOTG (USB On-The-Go) | 1 St | ||

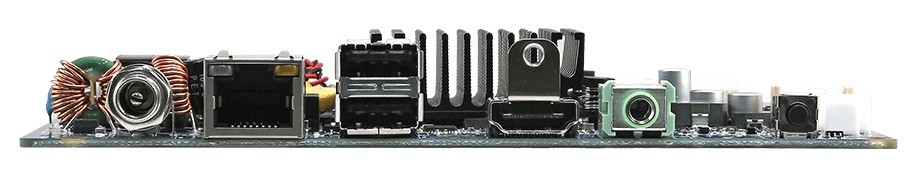

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Audio | Line-Out | 1 St | ||
| Ethernet | RJ-45 | 1 St | ||
| USB | USB v2.0 | 2 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 1 St | |
| USBOTG (USB On-The-Go) | Micro USB | 1 St | ||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 10-Bit | 1 St | |
| I²C | 1 St | |||
| CAN Bus | Version 2.0B (Interface) | 1 St | ||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Mic-In | 1 St | |||
| Amplifier | 2 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St, - | ||
| Stromanschluss (onboard) | 1 St, - | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | -, Ja | |
| Bereich | 12~26V, - | |||
| Anschluss | -, DC Jack | |||
| POE | Anschlüsse | 1 St, - | ||
| Protokoll | -, IEEE 802.3at / 25,5W | |||
| Stromversorgung - Eingang | DC: 12~26V | |||
| Betriebssysteme / Software | ||||
| Linux | Distribution | Ubuntu 12.04, Yocto 3.0 | ||
| Android | Release | 6 | ||
| Unterstützte BS | Android, Linux | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -20° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 102 mm | |||
| Gewicht | 150 g | |||
| Bedienelemente | Reset | 1 St | ||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
