3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Atom E3826 | Intel Atom E3845 | Intel Celeron J1900]
// SoC (System-On-Chip)
// [2 GB | 4 GB]
// 1 x VGA
// 1 x Displayport
// LVDS
// 2 x G-LAN
// 2 x USB
// 4 x USB (internal)
// 3 x Seriell I/O
// 16 GB eMMC
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 15~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

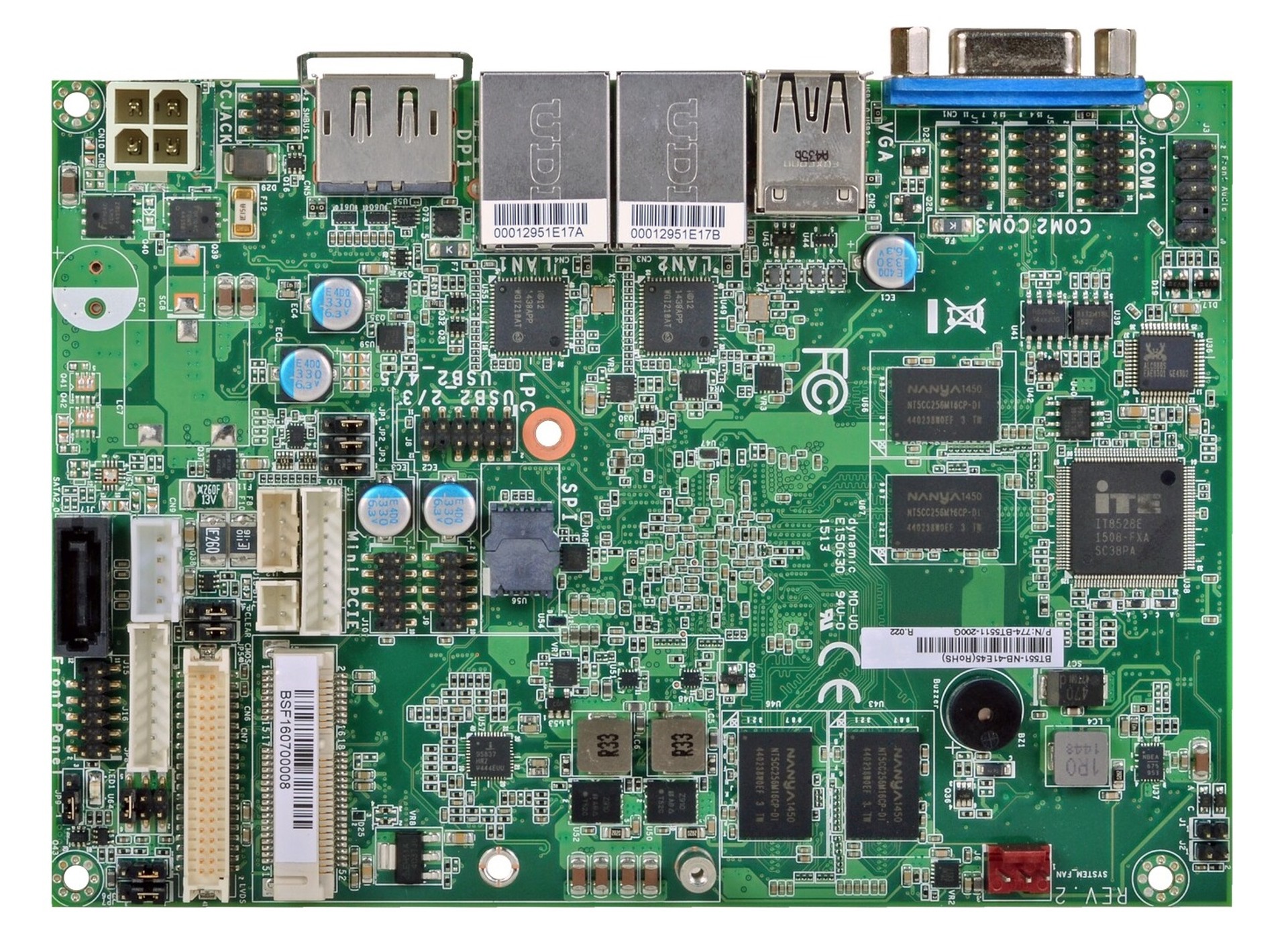

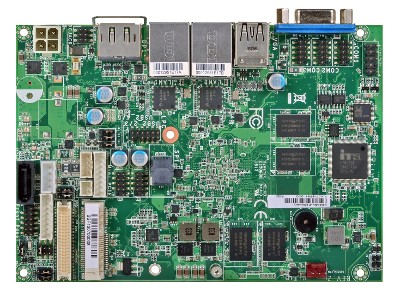

Basismodul: DFI BT553
| Allgemein | ||||
| SKU / Artikelnummer | BT553 | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 770-BT5531-100G, 770-BT5531-300G, 770-BT5531-400G, 770-BT5531-500G | |||
| Lieferzeit | lieferbar in ca. 2 Wochen | |||
| System | ||||
| Prozessor | Serie | Intel Bay Trail | ||
| Nummer | Intel Atom E3826, Intel Atom E3845, Intel Celeron J1900 | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St | |||
| Sockel | BGA 1170 | |||
| Basis Frequenz | 1,46 GHz, 1,91 GHz, 2 GHz | |||
| Cache | 1 MB, 2 MB | |||
| Thermal Design Power (TDP) | 7 W, 10 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Memory Type | DDR3 | ||
| Speicher onBoard | 2 GB, 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| BIOS | Insyde SPI 64 Mbit | |||
| I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6106D | |
| Storage | Embedded MultiMedia Card (eMMC) 16 GB | |||
| Grafik | ||||
| Prozessor | Intel HD Graphics | |||
| Leistungsmerkmal | Unterstützung | DirectX 11, OGL 4.0, OpenCL 1.2 | ||
| HW Decode | AVC / H.264, MPEG2, MVC, VC1 / WMV9, VP 8 | |||
| VGA | Maximale Auflösung | 2560 x 1600 bei 60 Hz | ||
| Displayport | Maximale Auflösung | 2560 x 1600 bei 60 Hz | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | NXP PTN3460 | |||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| Audio | ||||
| Chipsatz | Realtek ALC888 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

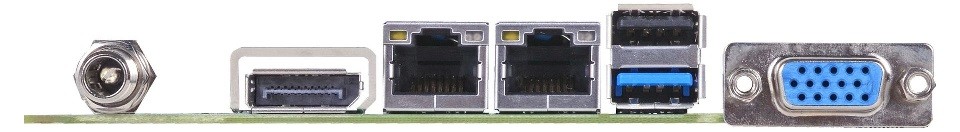

| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 1 St | ||
| USB v3.0 | 1 St | |||
| Anzeige | VGA | 1 St | ||
| Displayport | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
| RS-422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS | Dual Channel | |||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| DIO Power | 4-Pin (2 mm Pitch) | |||
| SMBus | 1 St | |||
| LPC | 1 St | |||
| Audio | Line-Out | 1 St | ||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R2.0 (3 Gbit/s, 300 MB/s) | 1 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Gehäuse-Einbruchserkennung (Chassis Intrusion) | Ja | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Auf Anfrage | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 15~36V | |||
| Anschluss | DC Jack | |||
| Stromversorgung - Eingang | DC: 15~36V | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
| Windows 8.1 (32-bit) | wird unterstützt | |||
| Windows 8.1 (64-bit) | wird unterstützt | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
| Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | |||
| Unterstützte BS | Windows, Windows Embedded | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 102 mm | |||
| Tiefe | 146 mm | |||
| MTBF | MTBF 25°C | 373,288 h | ||
| MTBF 45°C | 218,452 h | |||
| Berechnungsmodell | Telcordia Issue 2, Method I Case 3 | |||
| Umgebung | GB, GC – Ground Benign, Controlled | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
| Lebenszyklus | ||||
| Produktionsstart | Q4/2015 | |||
| Voraussichtlich bis | Q4/2028 | |||
| Herstellergarantie | ||||
| Herstellergarantie | 2 Jahre | |||
