3,5" Mainboards
// 3,5" Industrie-Mainboards
// LGA 1151 (H4)
// [Intel C246 | Intel H310 | Intel Q370]
// 260 Pin SO-DIMM DDR4
// 2 x DP++
// LVDS
// 2 x G-LAN
// 4 x USB
// 2 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

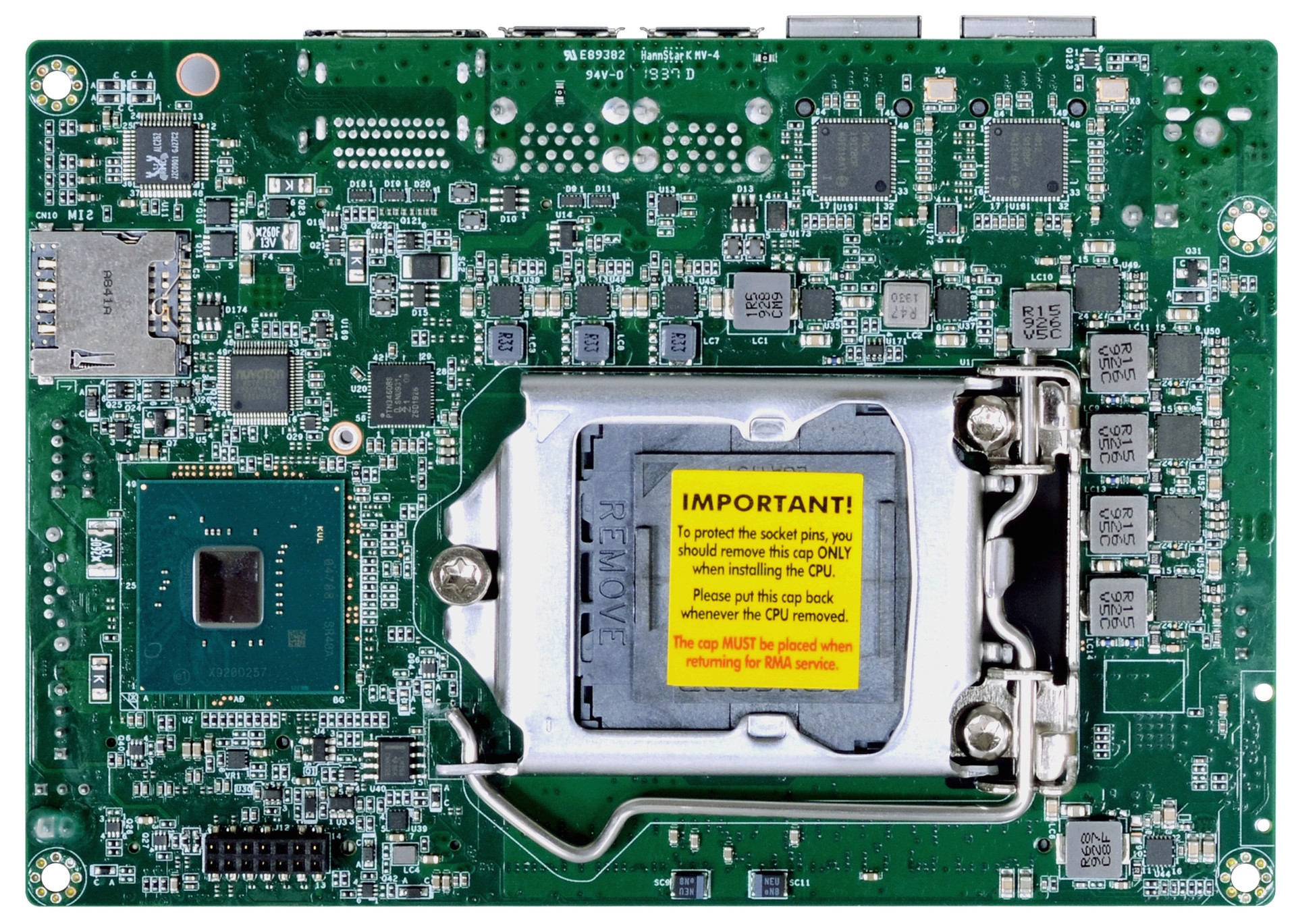

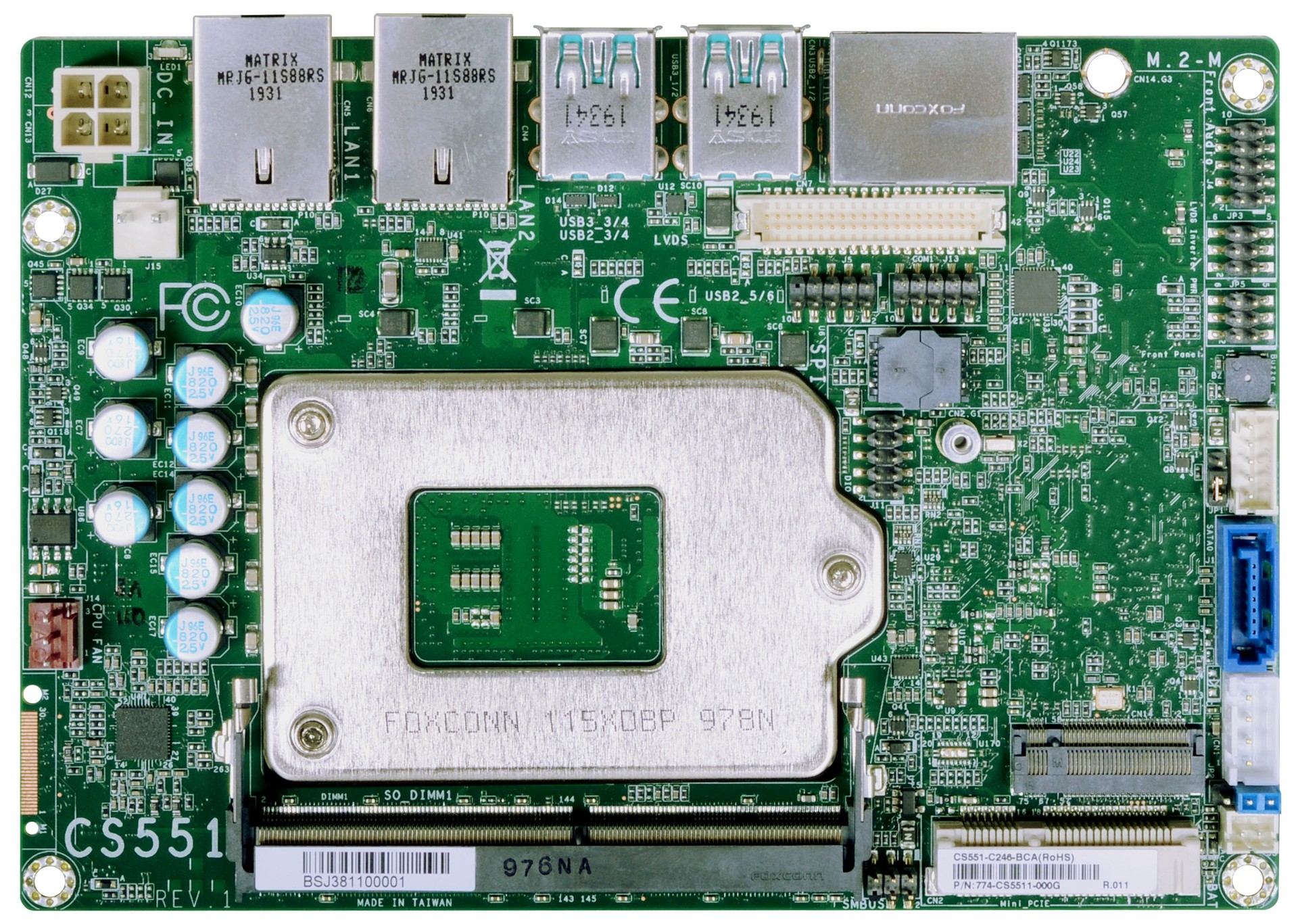

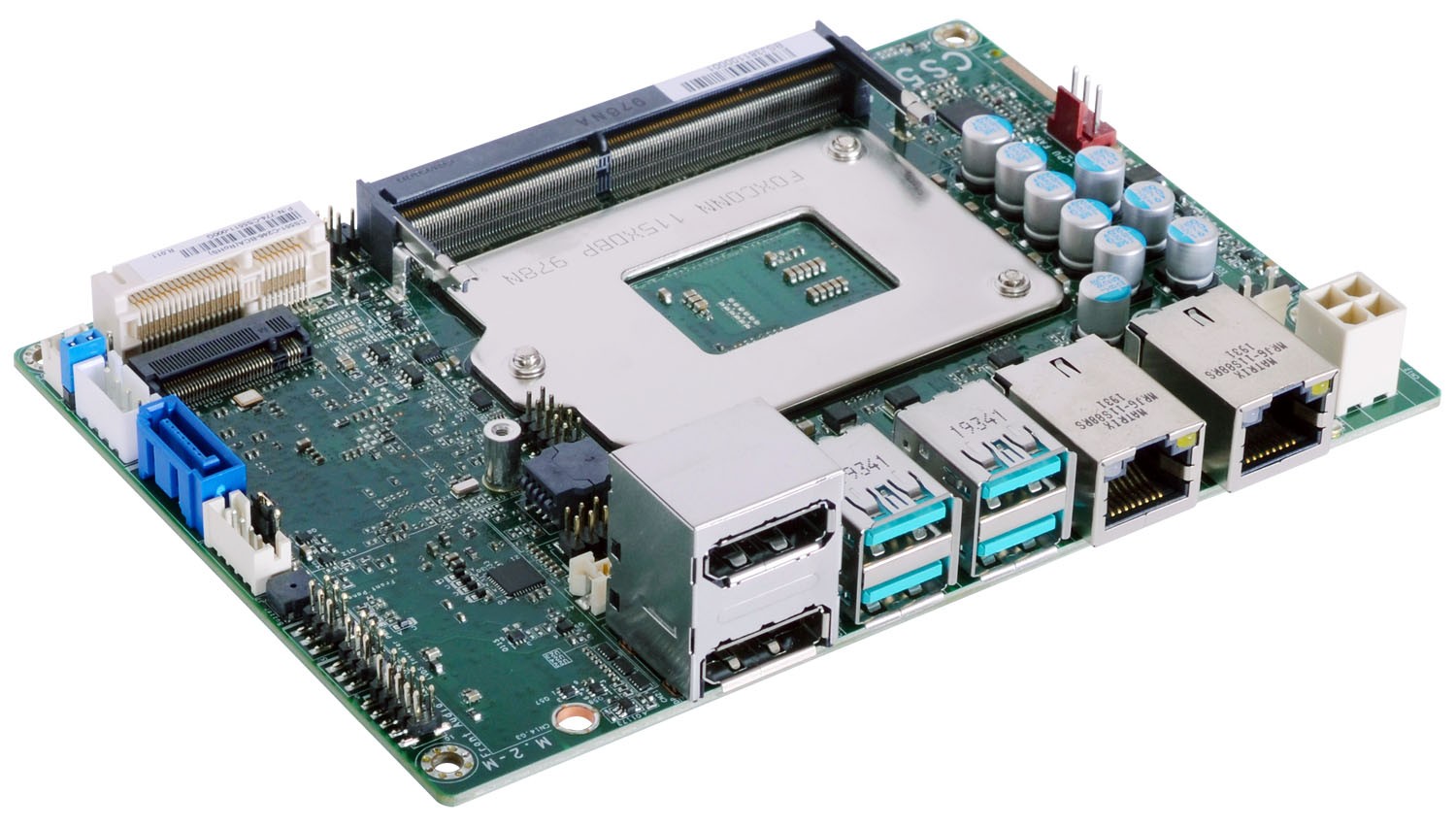

Basismodul: DFI CS551
Allgemein | ||||
SKU / Artikelnummer | CS551 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-CS5511-000G, 770-CS5511-100G, 770-CS5511-200G, 770-CS5511-300G, 770-CS5511-400G, 770-CS5511-500G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Coffee Lake | |||
Sockel | LGA 1151 (H4) | |||
Thermal Design Power (TDP) | 35 W | |||
Chipsatz | Intel C246, Intel H310, Intel Q370 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2666 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
ECC | -, wird unterstützt | |||
BIOS | AMI SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics GT | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 4.5 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 48 Bit | |||
Bridge | NXP PTN3460 | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×2, PCIe ×4, SATA III | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Audio | ||||
Chipsatz | Realtek ALC262 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

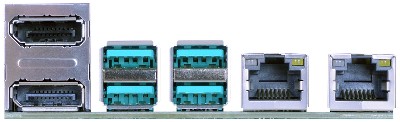

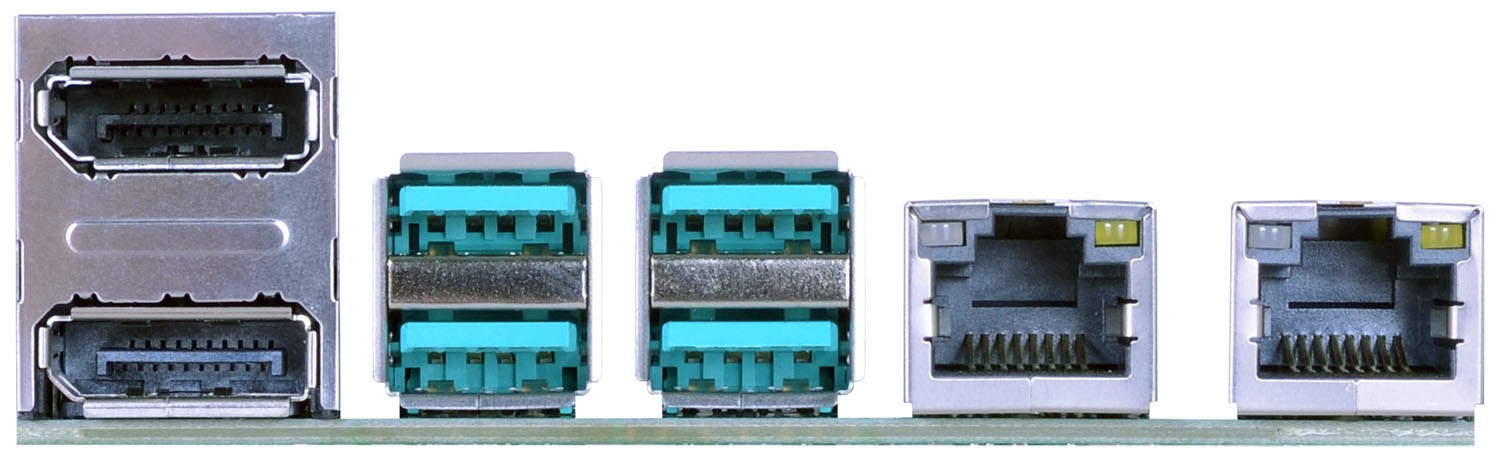

Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.1 Gen. 1 | 4 St, - | ||
USB v3.1 Gen. 2 | 4 St, - | |||
Anzeige | DP++ | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | |
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Gehäuse-Einbruchserkennung (Chassis Intrusion) | Ja | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 4 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -5° bis 65°C, -30° bis 80°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | 3,5" | ||
Breite | 102 mm | |||
Tiefe | 146 mm | |||
Höhe | 34,55 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q1/2021 | |||
Herstellergarantie | ||||
Herstellergarantie | 3 Jahre |
