3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// 260 Pin SO-DIMM DDR4
// 1 x DP++
// LVDS
// 3 x G-LAN
// 4 x USB
// 2 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

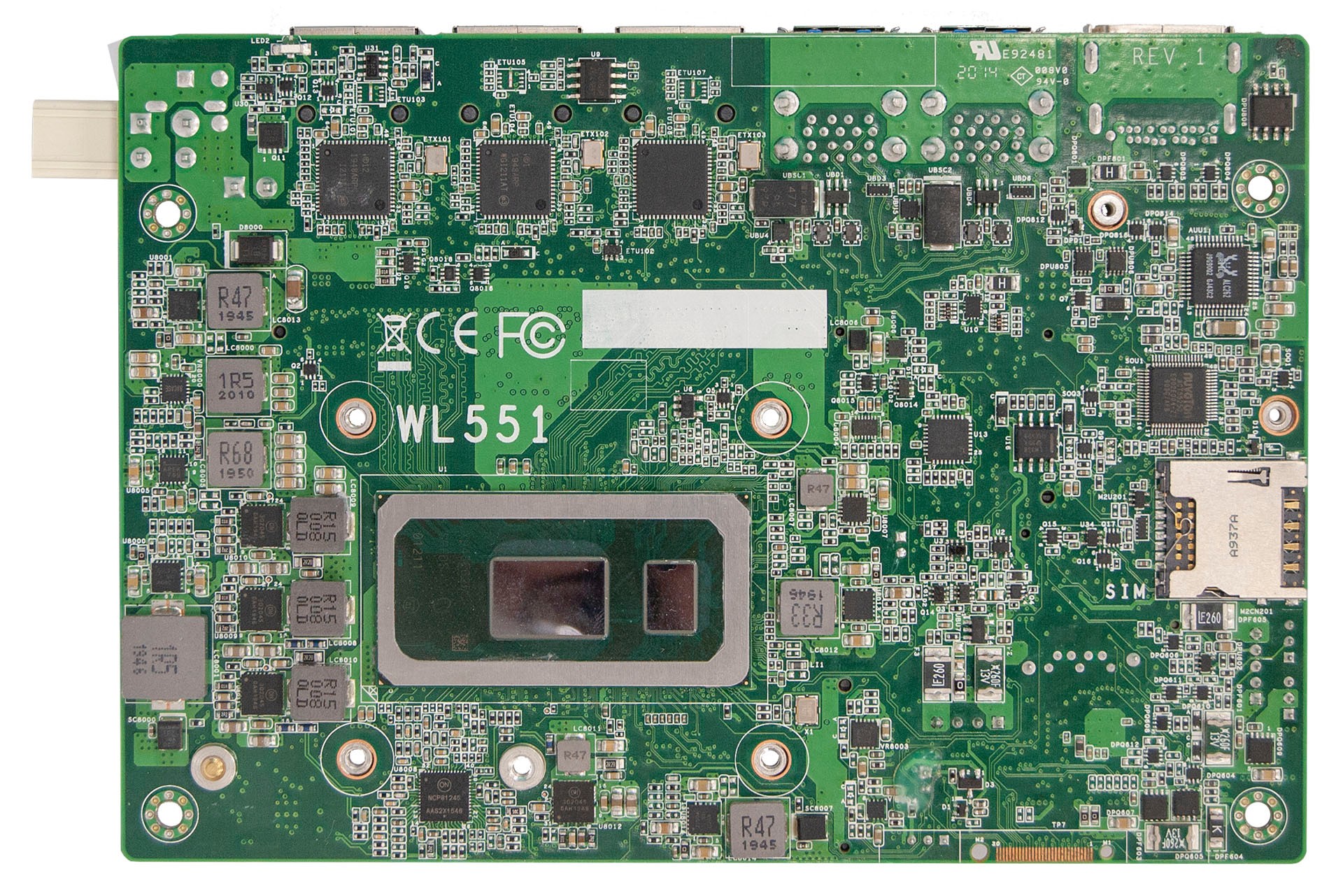

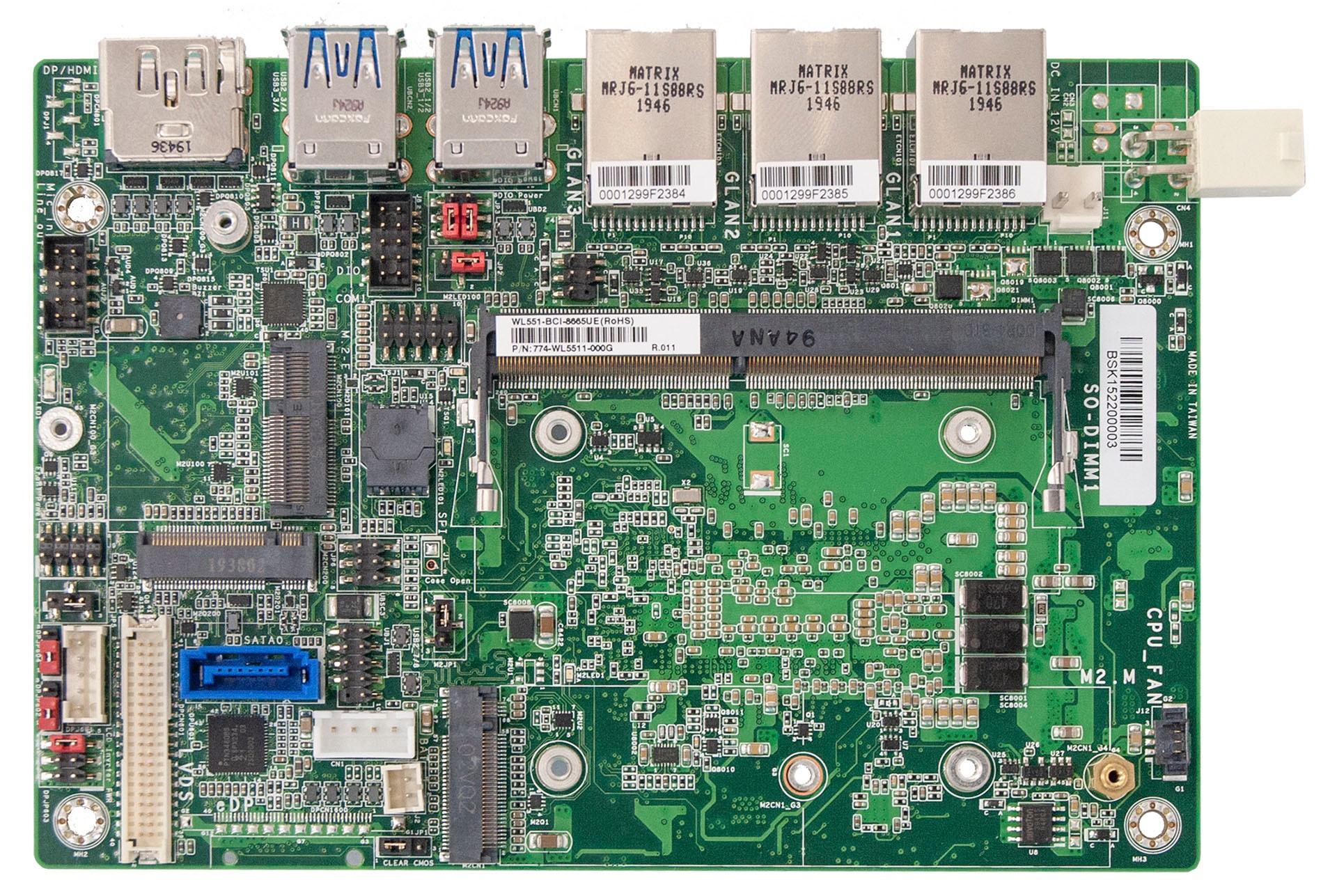

Basismodul: DFI WL551
| Allgemein | ||||
| SKU / Artikelnummer | WL551 | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 770-WL5512-000G, 770-WL5512-100G, 770-WL5512-200G, 770-WL5512-300G, 770-WL5512-400G, 770-WL5512-500G, 770-WL5512-600G, 770-WL5512-700G, 770-WL5512-800G | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Whiskey Lake | |||
| Nummer | Intel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St, 8 St | |||
| Sockel | BGA 1528 | |||
| Basis Frequenz | 1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz | |||
| Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz, - | |||
| Cache | 2 MB, 4 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Lithographie | 14 nm | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 2400 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 32 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI SPI 128 Mbit | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 620 | |||
| Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 4.5 | ||
| HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
| HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
| Version | 1.4 | |||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 1.2 | |||
| Dual Mode | Ja (DP++) | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bridge | NXP PTN3460 | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4, SATA III | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen. 2), SATA III, USB 2.0, USB 3.1 Gen1 | |||
| Unterstütze Abmaße | 2242, 3042 | |||
| Slot 3 | Key ID | E | ||
| Interface | PCIe ×2, USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 3 St | |||
| Netzwerk | 3x G-LAN | |||

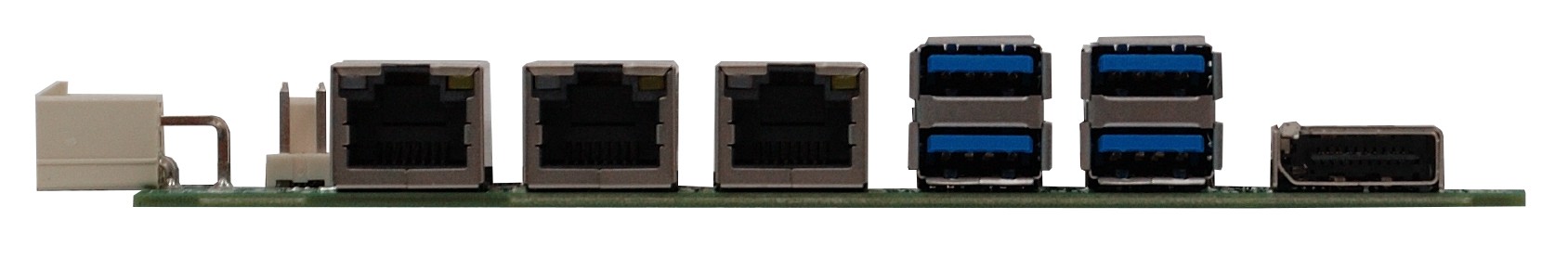

| Externe I/O | ||||
| Ethernet | RJ-45 | 3 St | ||
| USB | USB v3.1 Gen. 2 | 4 St | ||
| Anzeige | DP++ | 1 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | |
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS Anschlüsse | 1 St, - | |||
| eDP (embedded Display Port) Lanes | 1 St, - | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| Audio | Line-Out | 1 St | ||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | 4 Pin Anschluss (vertikal), DC Jack | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
| Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | |||
| Unterstützte BS | Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -5° bis 65°C, -20° bis 80°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Lagerung | 5 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 102 mm | |||
| Tiefe | 146 mm | |||
| Höhe | 4 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | KC, UKCA | |||
| RoHS konform | Ja | |||
