3,5" Mainboards
// 3,5" Industrie-Mainboards
// Intel Celeron 3965U
// 260 Pin SO-DIMM DDR4
// 1 x HDMI
// 1 x Displayport
// LVDS
// 2 x G-LAN
// 4 x USB
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9~36V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

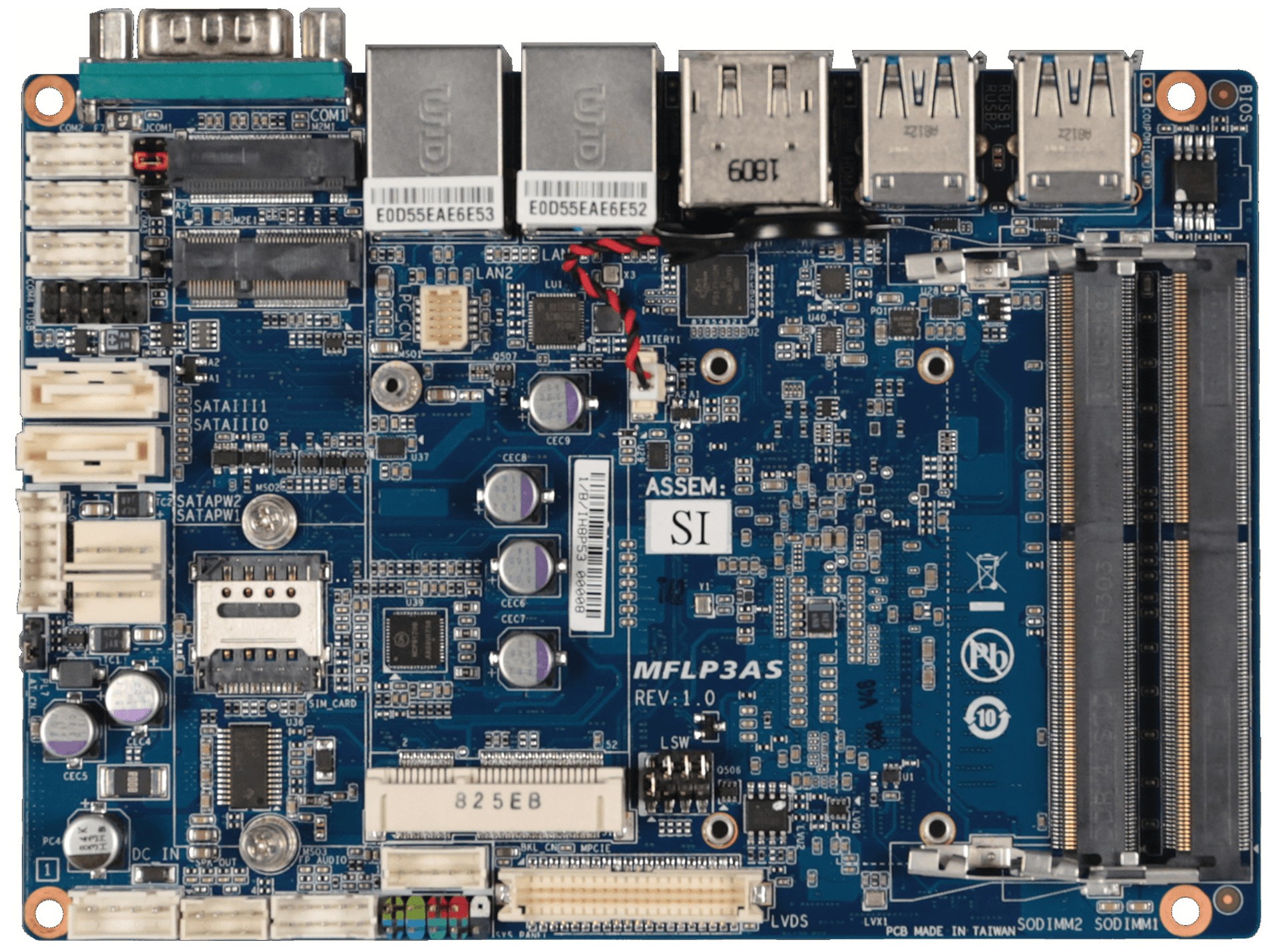

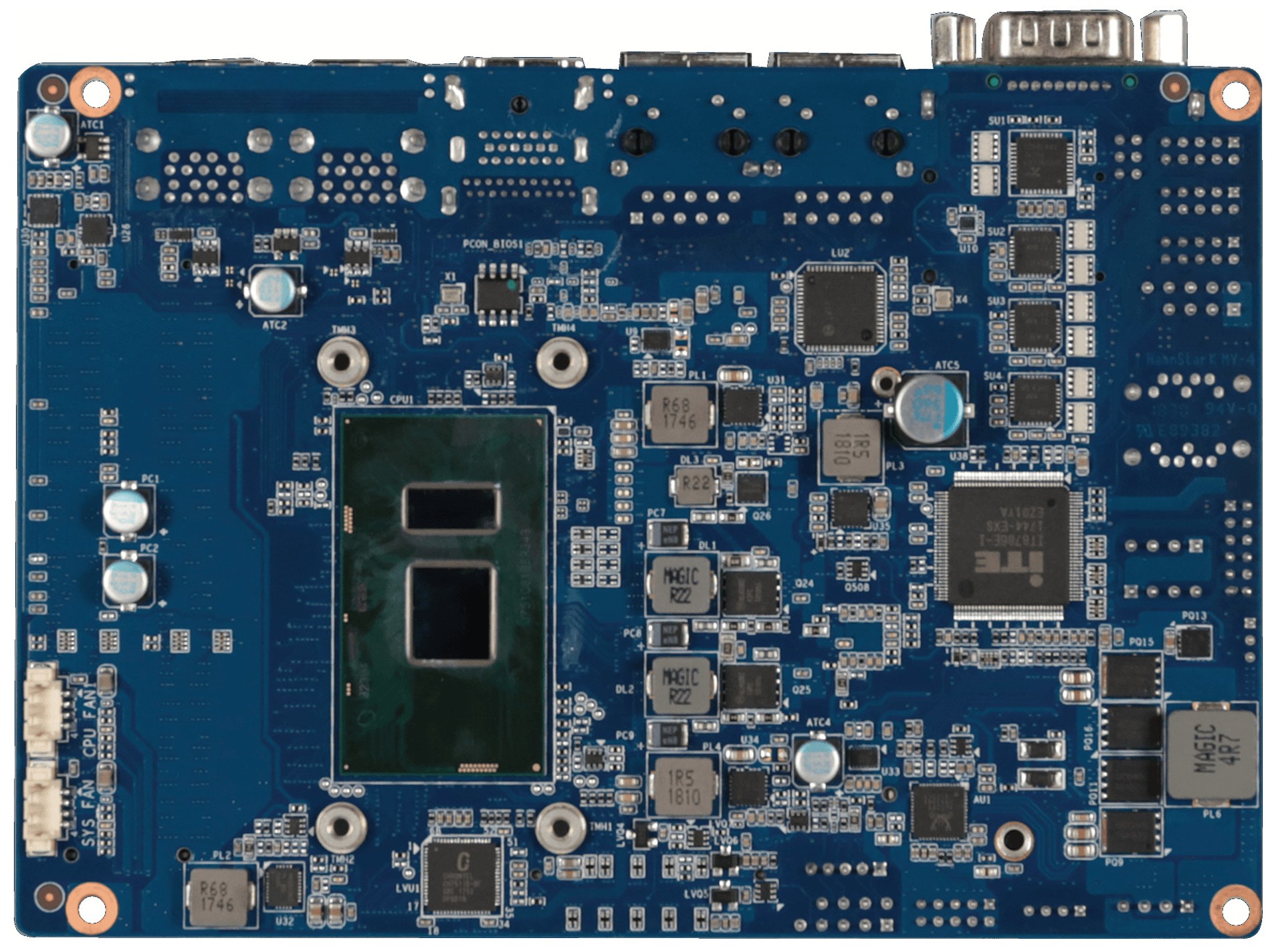

Basismodul: GIGAIPC QBiP-3965A
Allgemein | ||||
SKU / Artikelnummer | QBiP-3965A | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 9MFLPCASMR-SI | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Kaby Lake | |||
Nummer | Intel Celeron 3965U | |||
CPU Kerne | 2 St | |||
Threads | 2 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2,2 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Lithographie | 14 nm | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
IC Data Rate | 2133 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 32 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics 620 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0 | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bits | 24 Bit | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Interface | SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
SIM | PCIe / USB 2.0 Unterstützung | 1 St | ||
Audio | ||||
Chipsatz | Realtek ALC269 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

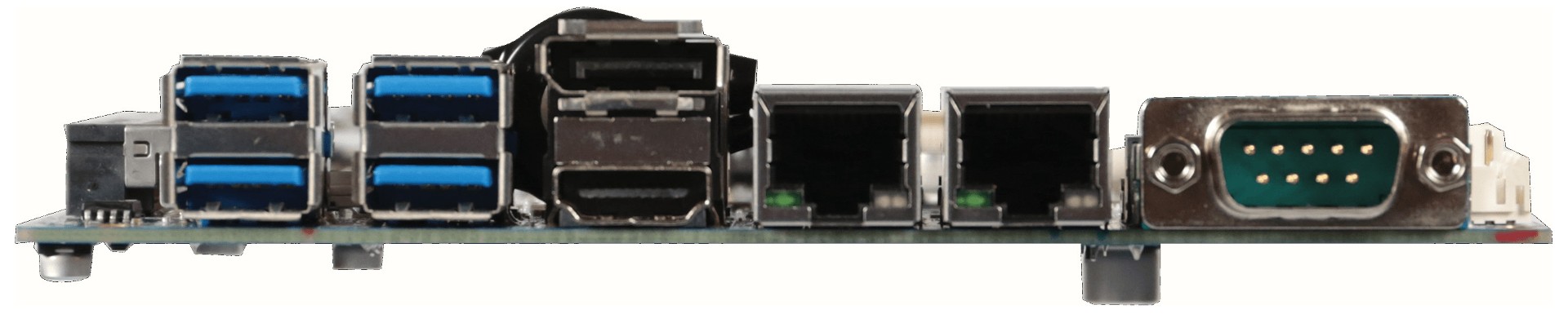

Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 4 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
Anzeige | HDMI | 1 St | ||
Displayport | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 3 St | |
Anzeige | LVDS Anschlüsse | 1 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 9~36V | |
Anschluss | 4 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Unterstützte BS | Windows | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Lagerung | 0 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | 3,5" | ||
Breite | 101,7 mm | |||
Tiefe | 146 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (ESD), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 | |||
RoHS konform | Ja |
