3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Core i3-N305 | Intel N50 | Intel N97]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

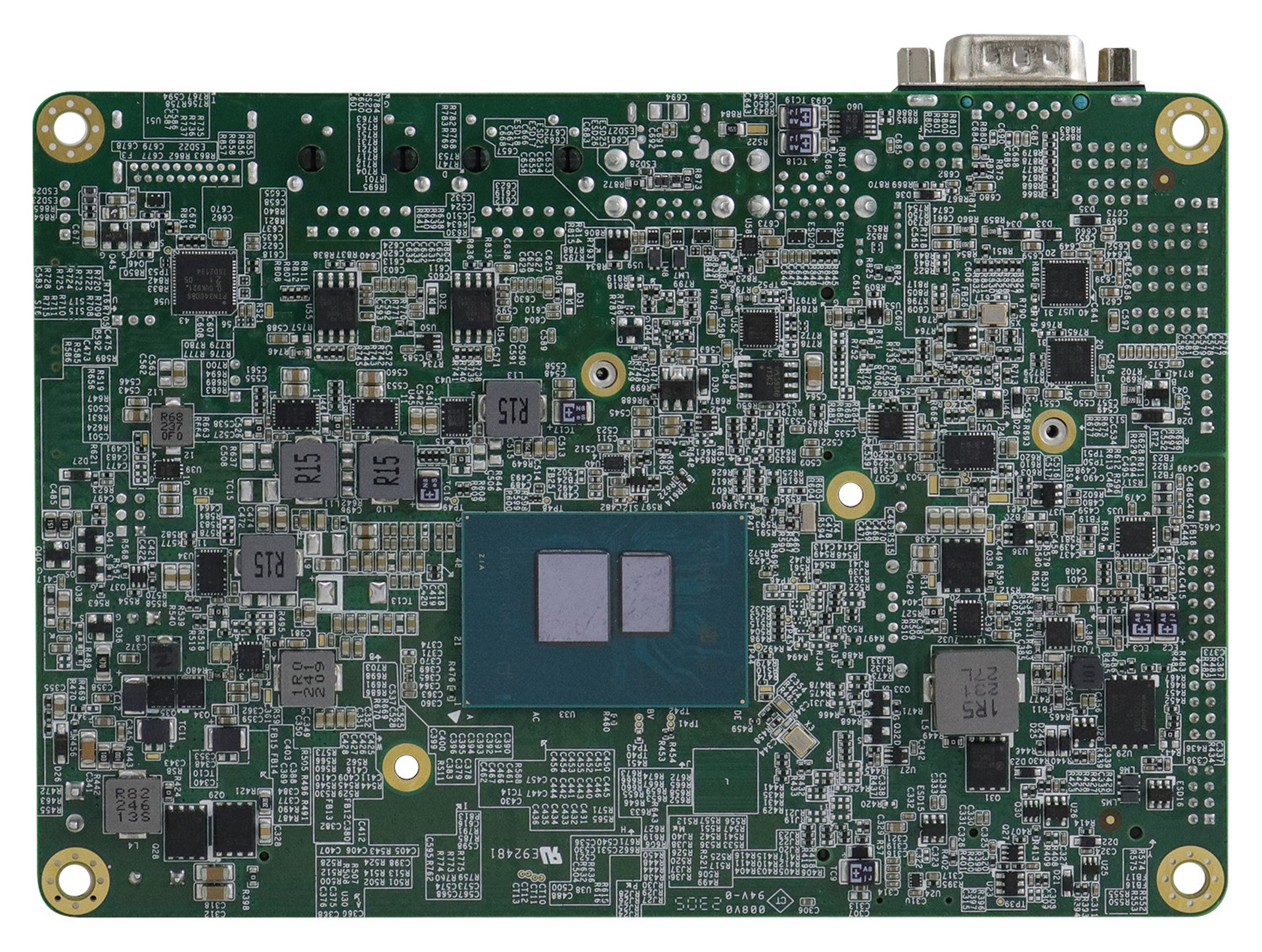

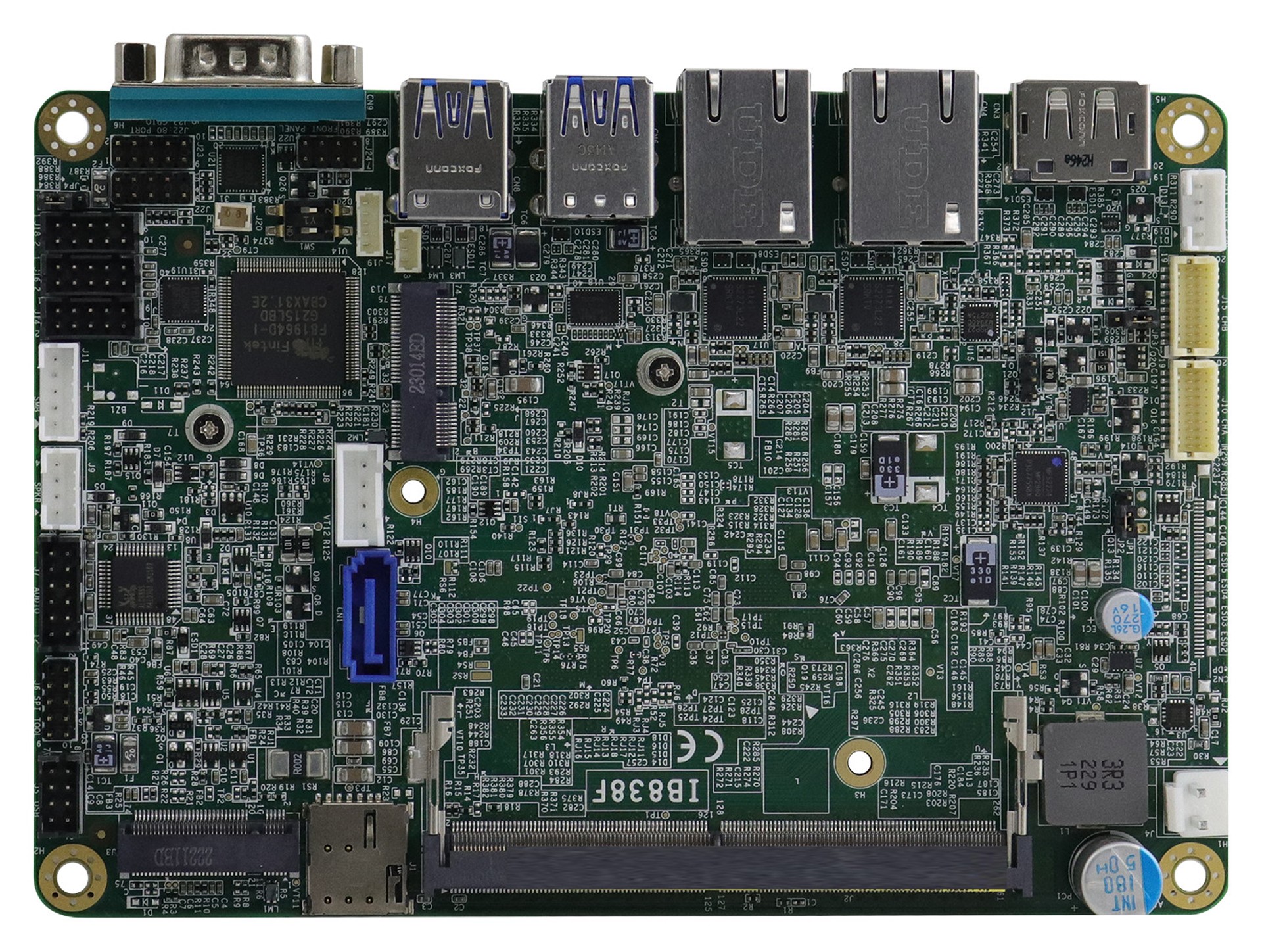

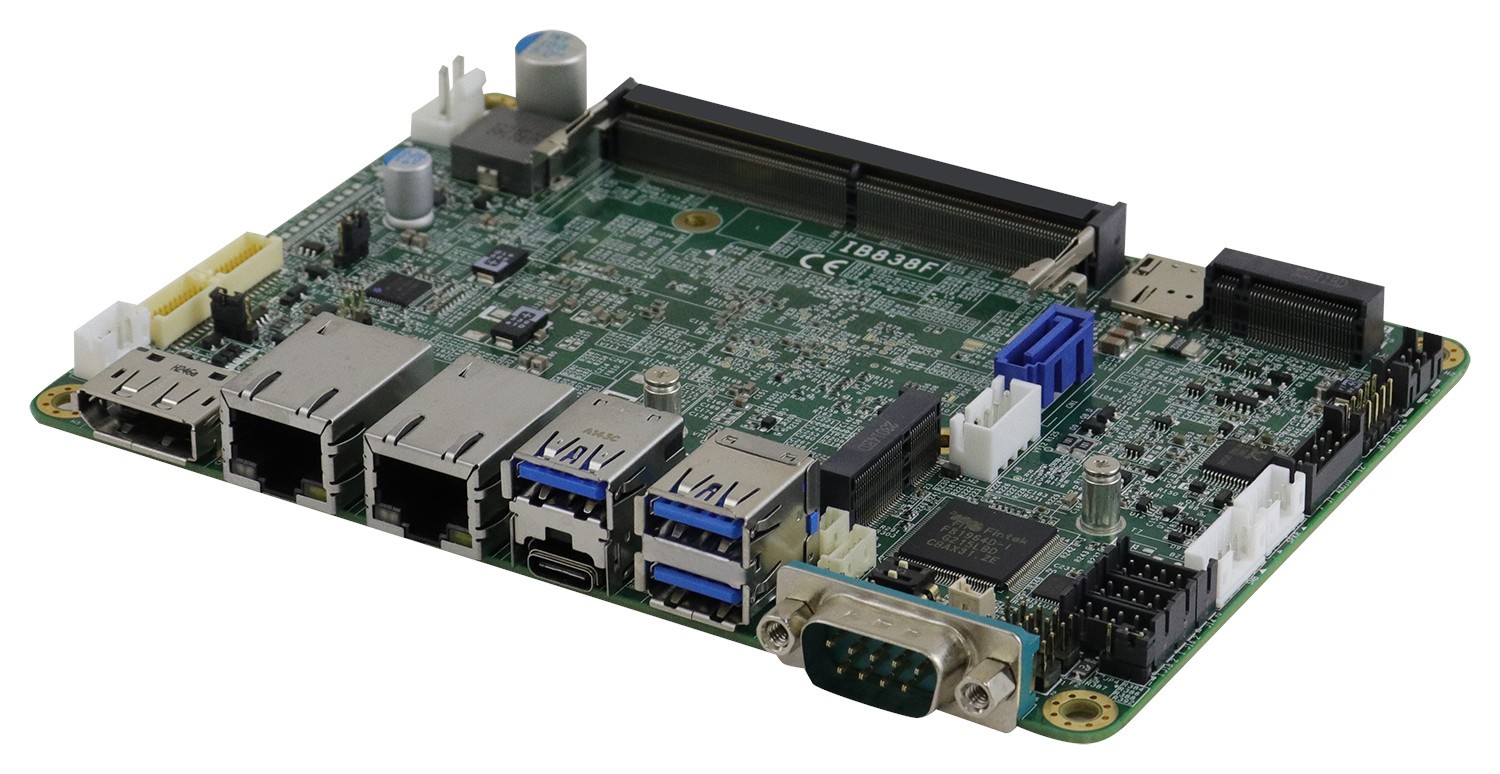

Basismodul: IBASE IB838
Allgemein | ||||
SKU / Artikelnummer | IB838 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Alder Lake | |||
Nummer | Intel Core i3-N305, Intel N50, Intel N97 | |||
CPU Kerne | 2 St, 4 St, 8 St | |||
Threads | 8 St, - | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,4 GHz, 3,6 GHz, 3,8 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 12 W, 15 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 4800 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81964D-I | |
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
LVDS | Bits | 24 Bit | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | SATA III | |||
Unterstütze Abmaße | 3042 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

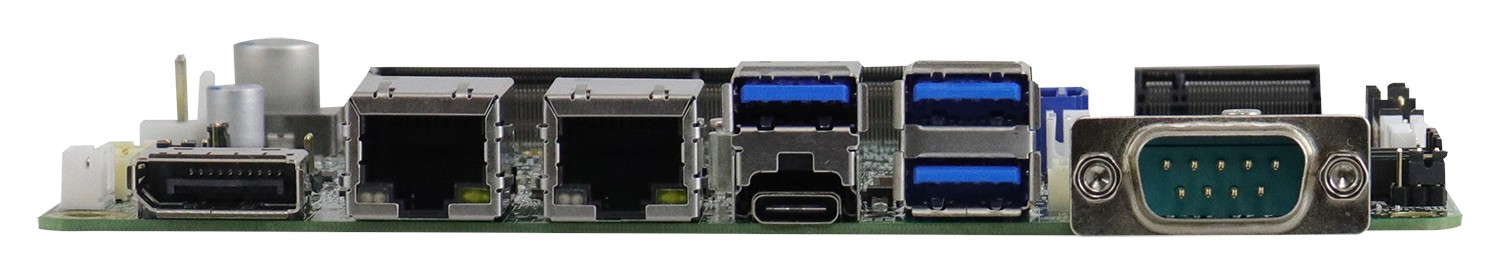

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 1 St | ||
DP USB-C | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v3.1 (Gen 2, Type C) | 1 St | ||
USB v3.2 (Gen 1) | 3 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 3 St | |
Anzeige | LVDS | -, Dual Channel | ||
LVDS Anschlüsse | 2 St, - | |||
eDP (embedded Display Port) Lanes | 1 St, - | |||
Digital I/O | Bits | 8-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 2 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 3,5" | ||
Breite | 102 mm | |||
Tiefe | 147 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
RoHS konform | Ja |
