3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Celeron 3955U | Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U]
// 204 Pin SO-DIMM DDR3L
// 1 x Displayport
// 2 x G-LAN
// 5 x USB
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

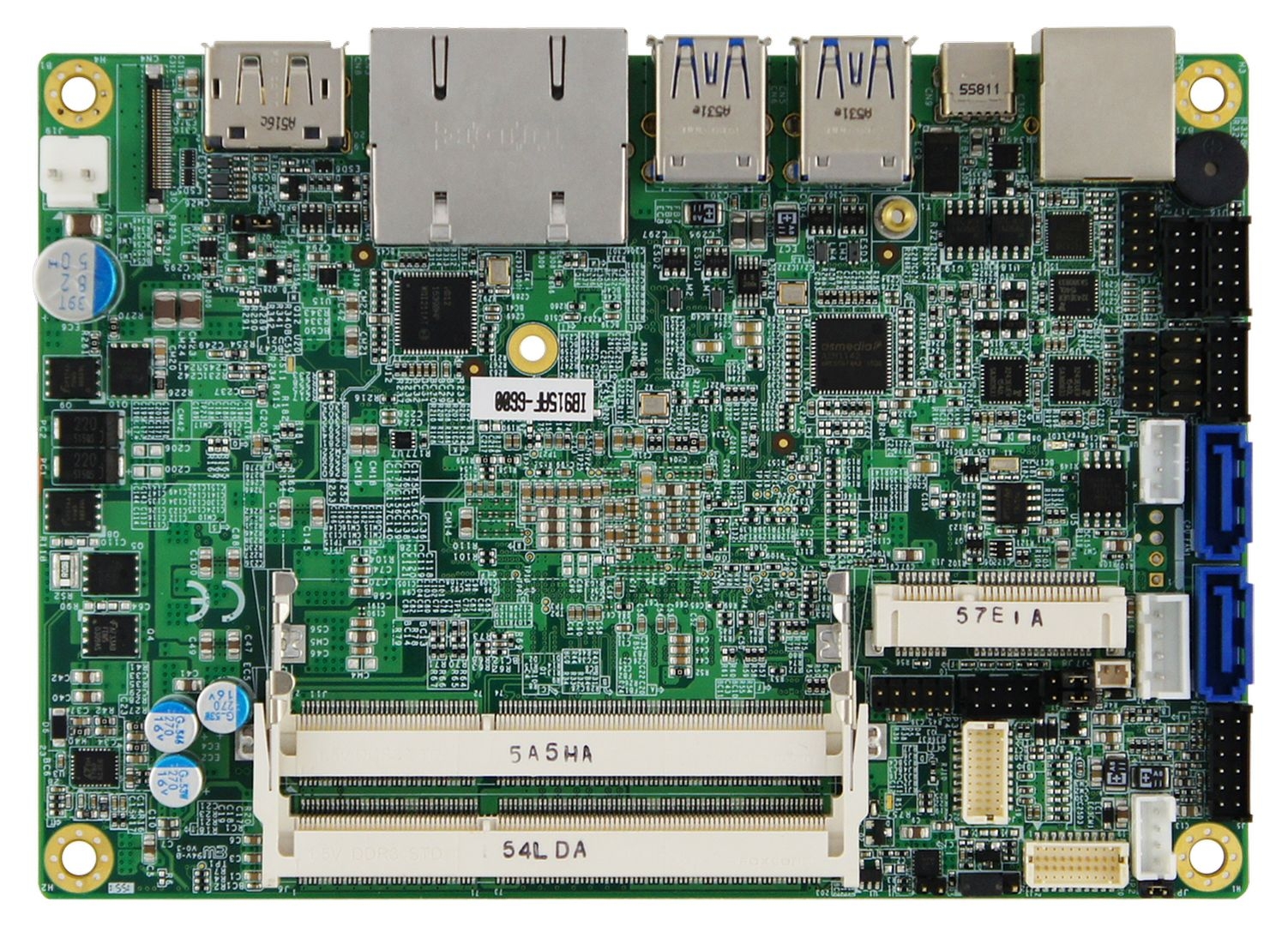

Basismodul: IBASE IB915
Allgemein | ||||
SKU / Artikelnummer | IB915 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Serie | Intel Skylake | ||
Nummer | Intel Celeron 3955U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U | |||
CPU Kerne | 2 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz | |||
Cache | 2 MB, 3 MB, 4 MB | |||
Thermal Design Power (TDP) | 10 W, 15 W | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Frequenz | 1333 / 1600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 16 GB | |||
ECC | wird nicht unterstützt | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81846AD-I | |
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
LVDS | Bits | 24 Bit | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
Storage | mSATA | |||
Audio | ||||
Chipsatz | Realtek ALC662 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps), Intel I219V PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Active Management Technology (AMT) Version | 11.0, - | |||
Netzwerk | 2x G-LAN | |||
Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 4 St | ||
USB v3.1 Gen. 1 | 1 St | |||
Seriell | RS-232 / 422 / 485 | RJ-11 | 1 St | |
Anzeige | Displayport | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 3 St | |
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
Digital I/O | Bits | 8-Bit | 1 St | |
LPC | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~24V | |||
Anschluss | 2 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 9~24V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
Windows 8 (32-bit) | wird unterstützt | |||
Windows 8 (64-bit) | wird unterstützt | |||
Windows 8.1 (32-bit) | wird unterstützt | |||
Windows 8.1 (64-bit) | wird unterstützt | |||
Windows 10 (64-bit) | wird unterstützt | |||
Unterstützte BS | Windows | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 3,5" | ||
Breite | 147 mm | |||
Tiefe | 102 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Voraussichtlich bis | Q3, 2030 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
