3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 1 x Displayport
// 2 x G-LAN
// 5 x USB
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

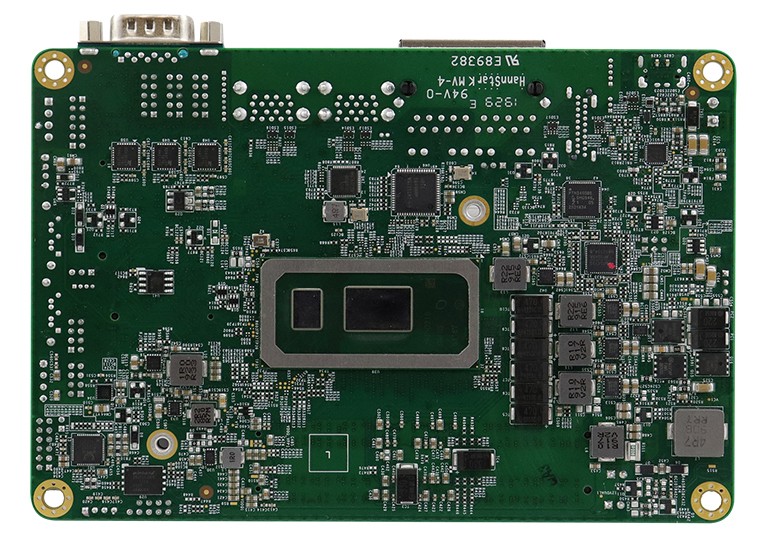

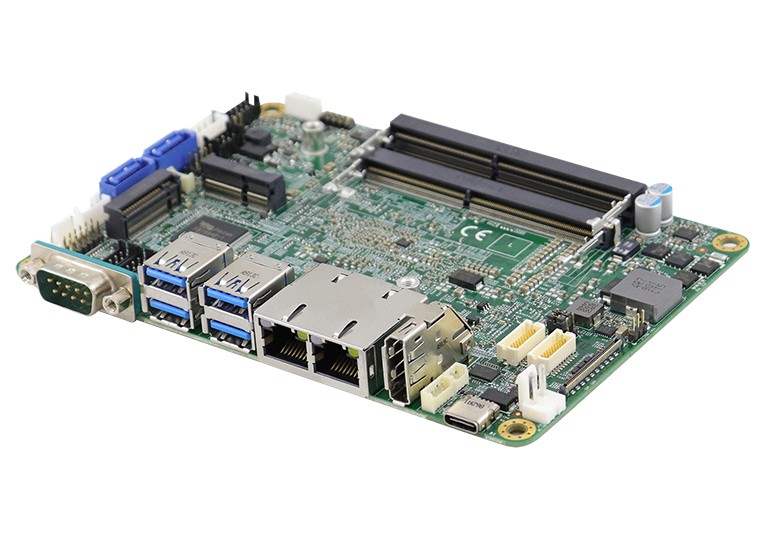

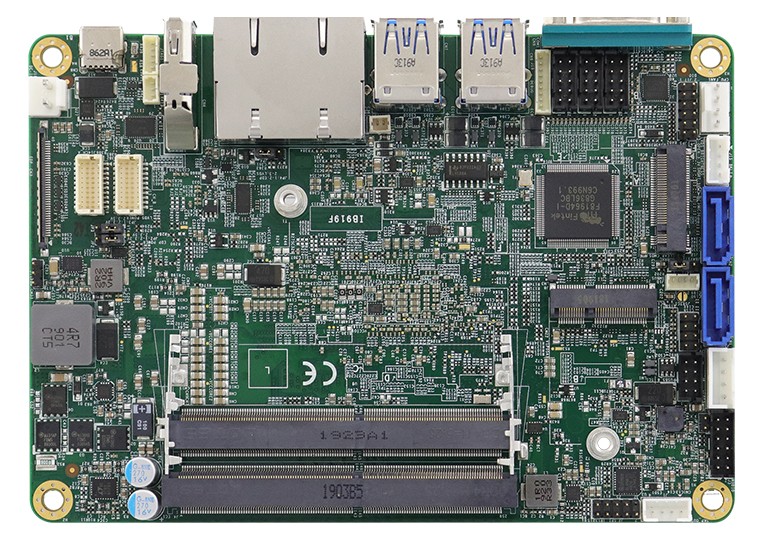

Basismodul: IBASE IB919
| Allgemein | ||||
| SKU / Artikelnummer | IB919 | |||
| Produktgrunddaten | ||||
| Hersteller | IBASE | |||
| System | ||||
| Prozessor | Serie | Intel Whiskey Lake | ||
| Nummer | Intel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St, 8 St | |||
| Sockel | BGA 1528 | |||
| Basis Frequenz | 1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz | |||
| Cache | 2 MB, 4 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Frequenz | 2133 / 2400 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 32 GB | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81964D-I | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics 620 | |||
| LVDS | Bits | 24 Bit | ||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | CNVi | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E, M | |||
| Audio | ||||
| Chipsatz | Realtek ALC269 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps), Intel I219V PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Active Management Technology (AMT) Version | 11.0, - | |||
| Netzwerk | 2x G-LAN | |||
| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.1 Gen. 1 | 4 St | ||
| USB v3.1 (Gen 2, Type C) | 1 St | |||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| Anzeige | Displayport | 1 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 3 St | |
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | 4 Pin Anschluss (vertikal) | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 102 mm | |||
| Tiefe | 147 mm | |||
| Zertifikate / Konformitäten | ||||
| RoHS konform | Ja | |||
| Herstellergarantie | ||||
| Herstellergarantie | 2 Jahre | |||
