3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Celeron 7305E | Intel Core i3-1215UE | Intel Core i5-1245UE | Intel Core i7-1265UE]
// SoC (System-On-Chip)
// 8 GB
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (12-Bit)
// 1 x PCIe x4
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

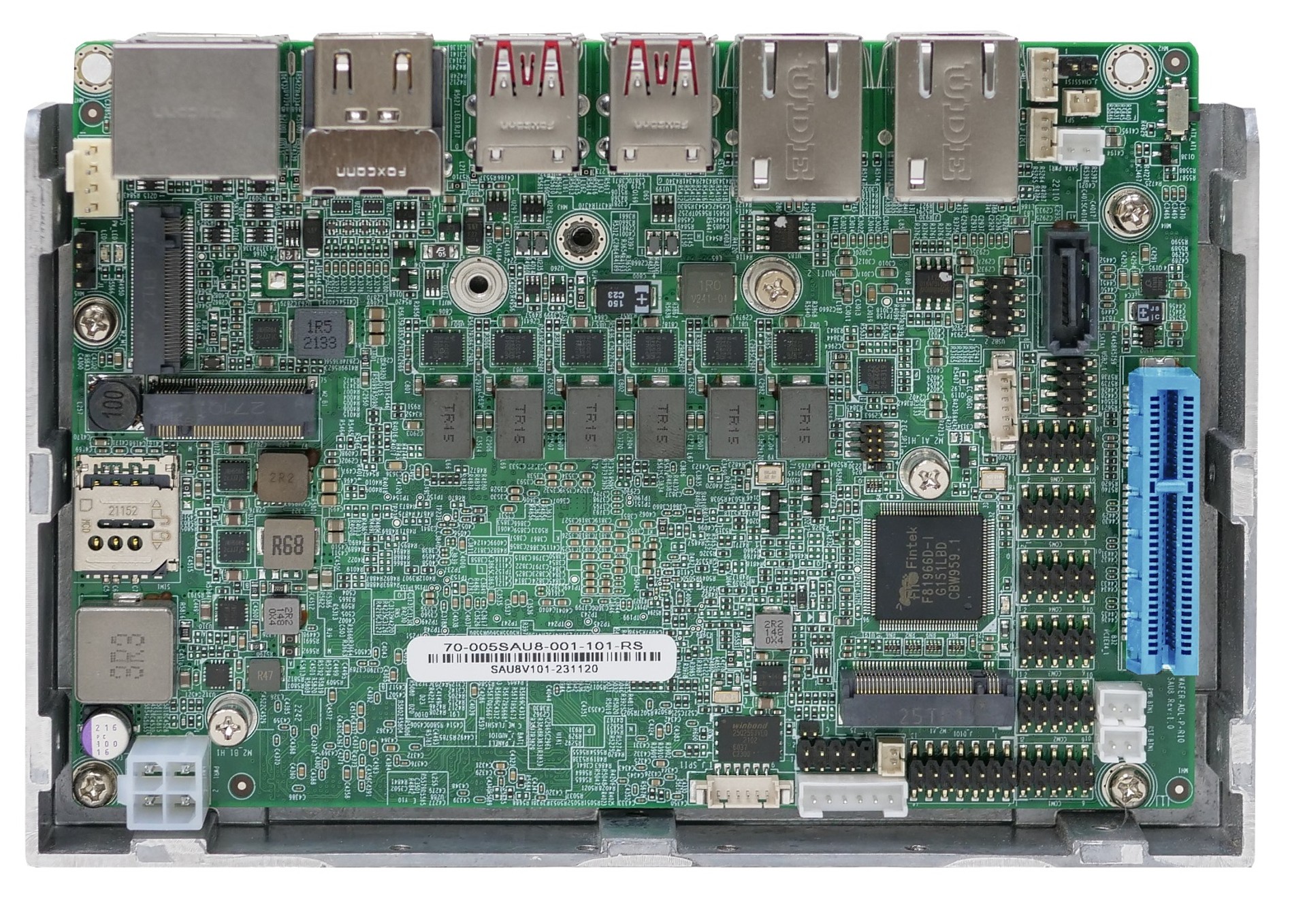

Basismodul: IEI WAFER-ADL-P
Allgemein | ||||
SKU / Artikelnummer | WAFER-ADL-P | |||
Produktgrunddaten | ||||
Hersteller | IEI | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Alder Lake | |||
Nummer | Intel Celeron 7305E, Intel Core i3-1215UE, Intel Core i5-1245UE, Intel Core i7-1265UE | |||
CPU Kerne | 5 St, 6 St, 10 St | |||
Threads | 5 St, 8 St, 12 St | |||
Sockel | BGA 1744 | |||
Basis Frequenz | 1 GHz, - | |||
Performance-core Max Turbo Frequenz | 4,4 GHz, 4,7 GHz, - | |||
Efficient-core Max Turbo Frequenz | 3,3 GHz, 3,5 GHz, - | |||
Cache | 8 MB, 10 MB, 12 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Frequenz | 3200 MHz | |||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 8 GB | |||
BIOS | AMI UEFI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81966D-I | |
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Version | 1.4a | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 1.4a | |||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x4 Signal | 1 St | |||
PCIe Schnittstellen | 1x PCIe x4 | |||
M.2 | Slot 1 | Key ID | A | |
Interface | PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 3) | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 3 | Key ID | B | ||
Interface | 5G / Storage Module, PCIe ×2, USB 2.0 | |||
Unterstütze Abmaße | 3042 | |||
M.2 Key IDs | A, B, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Unterstützt High Definition Audio Schnittstelle | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

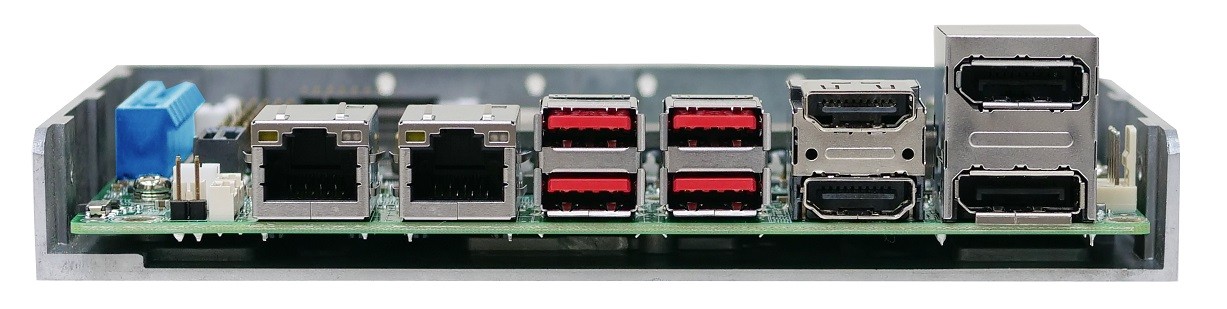

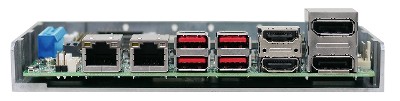

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
Displayport | 2 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 2) | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Digital I/O | Bits | 12-Bit | 1 St | |
SMBus | 1 St | |||
I²C | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Intel PTT (wie TPM 2.0) | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 4-Pin ATX (12V DC) | |
Stromversorgung - Eingang | ATX: 4-Pin ATX (12V DC) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 3,5" | ||
Breite | 146 mm | |||
Tiefe | 102 mm | |||
Gewicht | 350 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
