3,5" Mainboards
// 3,5" Industrie-Mainboards
// NXP i.MX 8M Quad Plus
// 4 GB
// 2 x G-LAN (Rückseite)
// 1 x USB (Frontseite)
// 2 x USB (Rückseite)
// 1 x Seriell I/O
// 16 GB eMMC
// Digital I/O (8-Bit)
// Stromversorgung DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

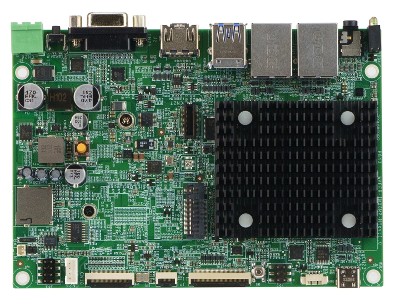

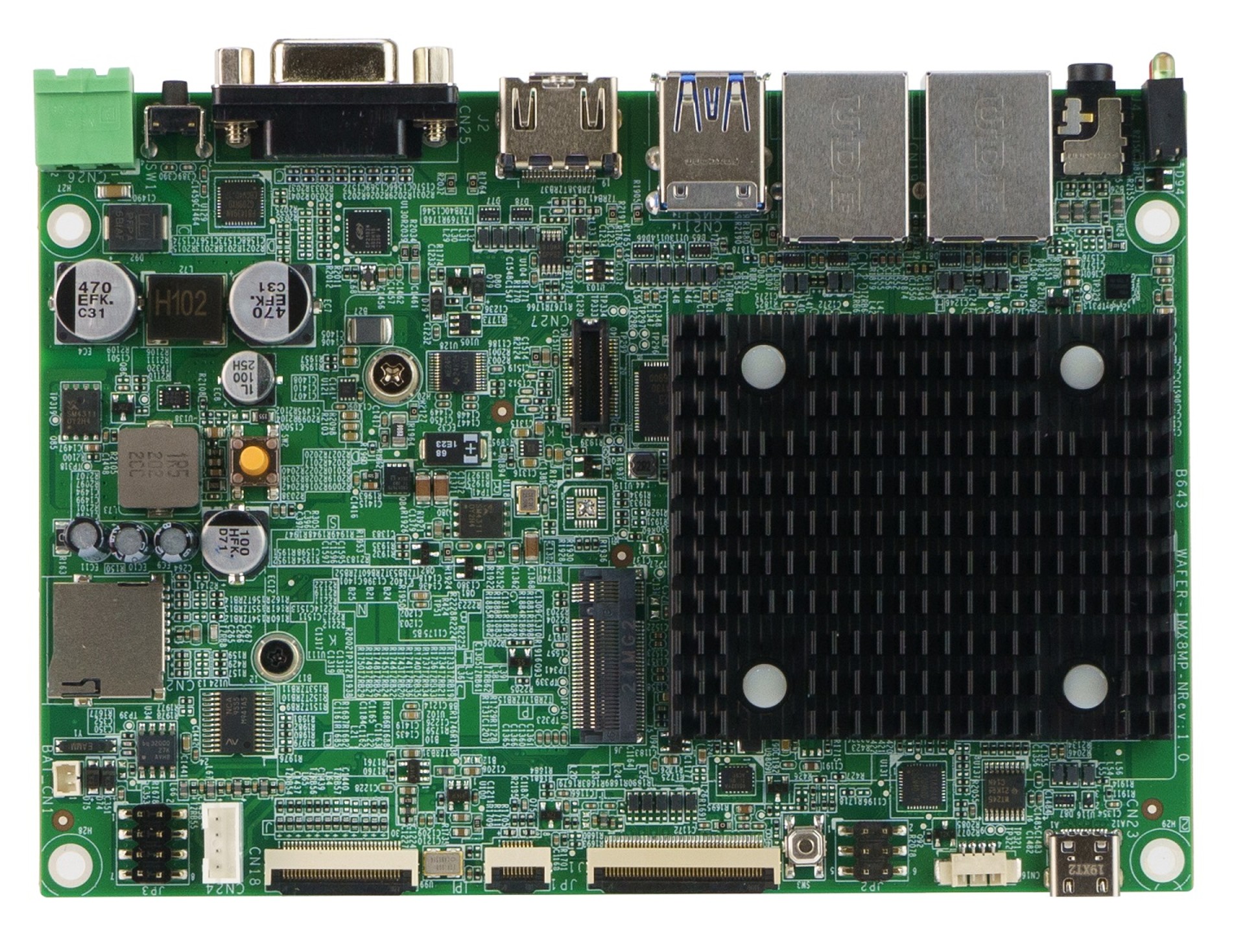

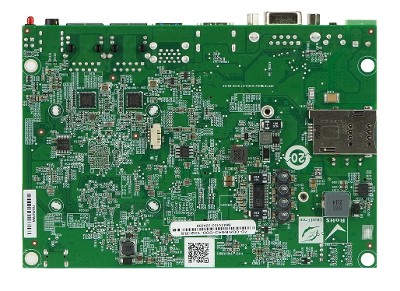

Basismodul: IEI WAFER-IMX8MP
Allgemein | ||||
SKU / Artikelnummer | WAFER-IMX8MP | |||
Produktgrunddaten | ||||
Hersteller | IEI | |||
System | ||||
Prozessor | Serie | ARM Cortex-A53 | ||
Nummer | NXP i.MX 8M Quad Plus | |||
CPU Kerne | 4 St | |||
Max. Turbo-Taktfrequenz | 1,8 GHz | |||
Speicher | Memory Type | DDR4 | ||
Frequenz | 3200 MHz | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 16 GB | |||
AI/KI | ||||
Performance | TOPS (INT8) | 2,3 | ||
Grafik | ||||
Prozessor | Vivante GC7000UL | |||
Bildschirme (Multidisplay) | 2 Displays | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE | |||
Unterstütze Abmaße | 3042 | |||
M.2 Key IDs | B | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | Micro-SD (extern) | |||
Externe I/O (Frontseite) | ||||
USB | USBOTG (USB On-The-Go) | 1 St | ||

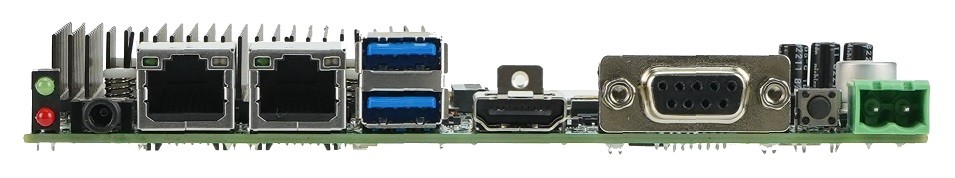

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 2 St | ||
Interne I/O | ||||
Seriell | RS-422 / 485 | Ports (2.00 mm Pitch) | 1 St | |
Digital I/O | Bits | 8-Bit | 1 St | |
I²C | 1 St | |||
Image Capture Interfaces | Kamera Eingang 1 | Anzahl | 1 St | |
Lanes | 4 St | |||
MIPI-DSI (Display Serial Interface) | 1 St | |||
Audio | Amplifier | 2 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12V | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Debian 12, Ubuntu 22.04, Yocto 4.0 | ||
Android | Release | 12, - | ||
Unterstützte BS | Android, Linux | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 70°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 3,5" | ||
Breite | 146 mm | |||
Tiefe | 102 mm | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
System Status | 1 St | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
