3,5" Mainboards
// 3,5" Industrie-Mainboards
// Rockchip RK3588
// Rockchip RK3588
// 8 GB
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x Seriell I/O
// 32 GB eMMC
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

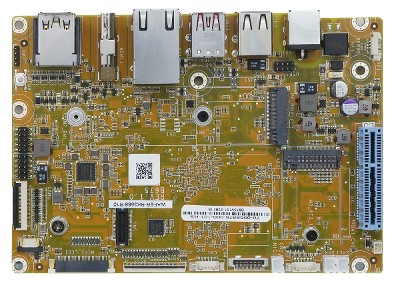

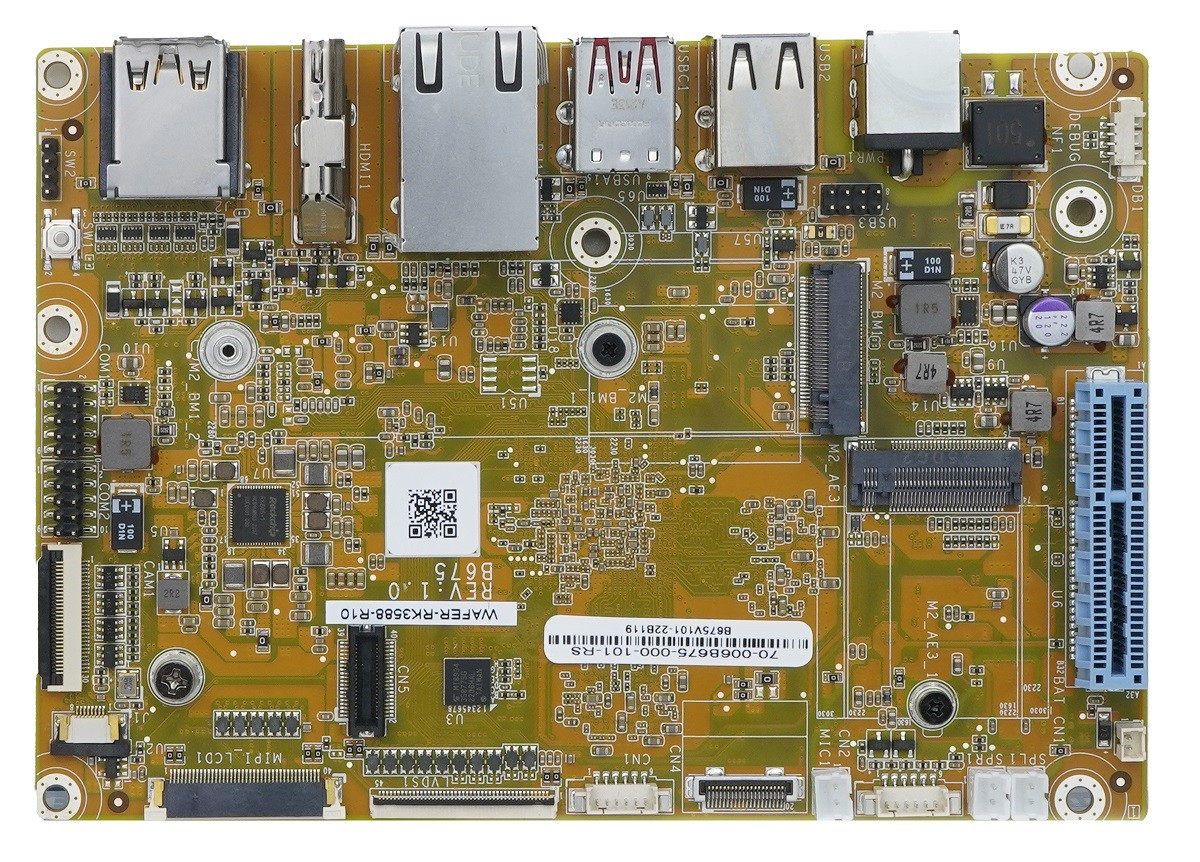

Basismodul: IEI WAFER-RK3588
Allgemein | ||||
SKU / Artikelnummer | WAFER-RK3588 | |||
Produktgrunddaten | ||||
Hersteller | IEI | |||
System | ||||
Prozessor | Serie | ARM Cortex-A76 | ||
Nummer | Rockchip RK3588 | |||
CPU Kerne | 4 St | |||
Max. Turbo-Taktfrequenz | 2,4 GHz | |||
Prozessor 2 | Serie | ARM Cortex-A55 | ||
Nummer | Rockchip RK3588 | |||
CPU Kerne | 4 St | |||
Max. Turbo-Taktfrequenz | 2 GHz | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 8 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
eMMC Version | 5.1 | |||
Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
AI/KI | ||||
Performance | TOPS (INT8) | 6 | ||
Grafik | ||||
Prozessor | ARM Mali-G610 MP4 | |||
HDMI | Maximale Auflösung | 7680 x 4320 bei 60 Hz | ||
Version | 2.1 | |||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x2 Signal | 1 St | |||
PCIe Schnittstellen | 1x PCIe x4 | |||
M.2 | Slot 1 | Key ID | B + M | |
Interface | PCIe ×2 (Gen. 3) | |||
Unterstütze Abmaße | 2230, 2280 | |||
Slot 2 | Key ID | A, E | ||
Interface | PCIe ×1 (Gen. 2) | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | A, B + M, E | |||

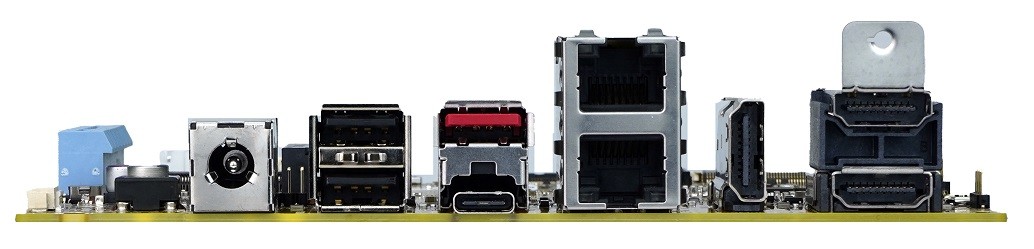

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 3 St | ||
DP USB-C | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.1 (Gen 2, Type C) | 1 St | |||
USB v3.2 (Gen 1) | 1 St | |||
Interne I/O | ||||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 2 St | |
Anzeige | LVDS Anschlüsse | 1 St | ||
eDP (embedded Display Port) Lanes | 1 St | |||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
Lanes | 4 St | |||
MIPI-DSI (Display Serial Interface) | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Amplifier | 2 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 12V | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Debian 11 | ||
Android | Release | 13, - | ||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 3,5" | ||
Breite | 146 mm | |||
Tiefe | 102 mm | |||
Bedienelemente | Reset | 1 St | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
