3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Atom X7211RE | Intel Atom X7433RE | Intel Atom x7835RE]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x1
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

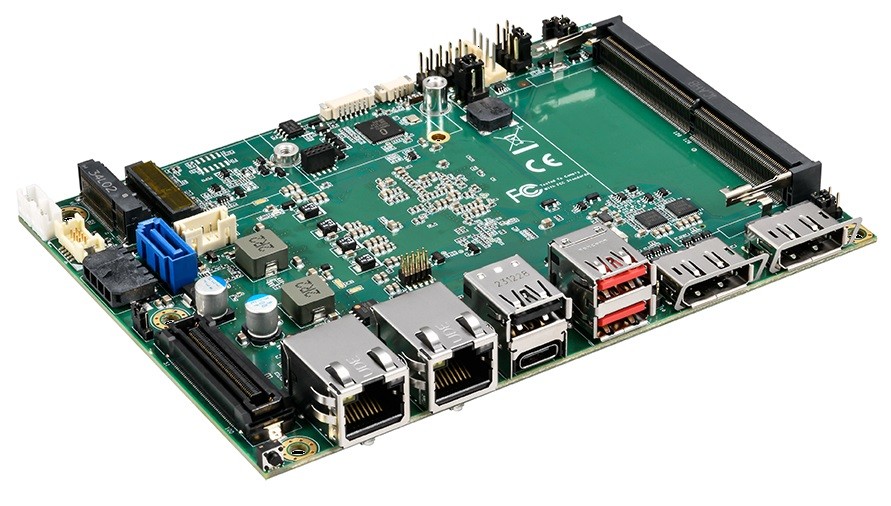

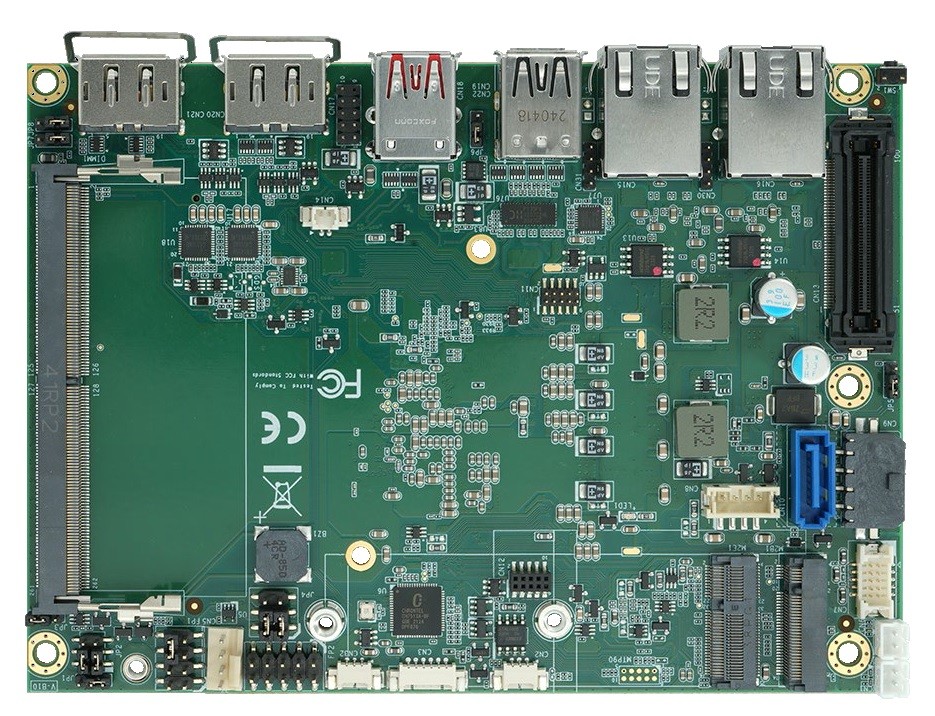

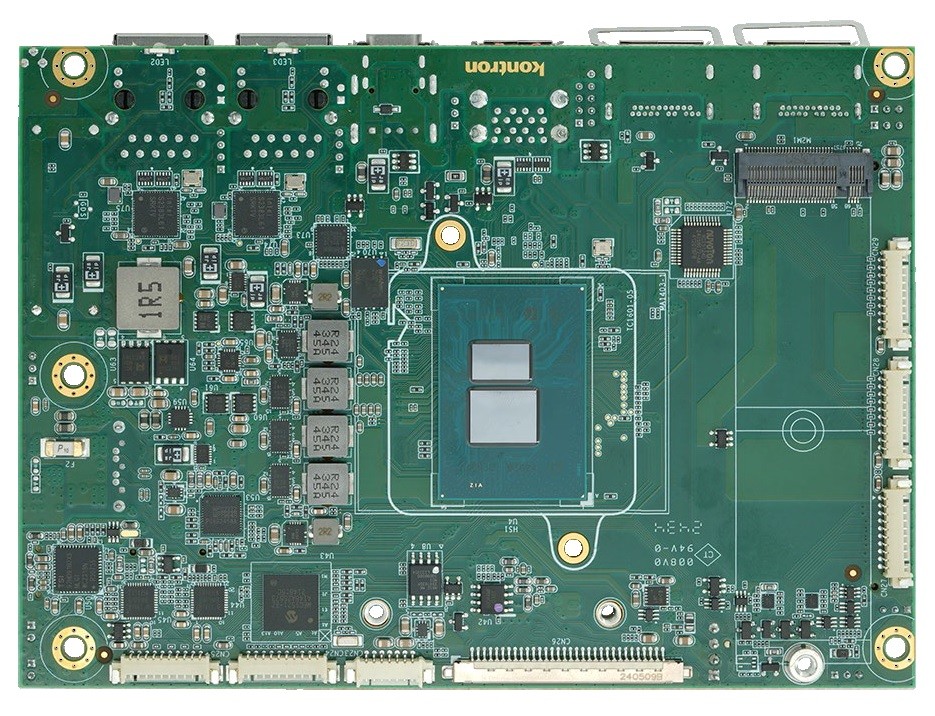

Basismodul: Kontron SBC-AML
| Allgemein | ||||
| SKU / Artikelnummer | SBC-AML | |||
| Produktgrunddaten | ||||
| Hersteller | Kontron | |||
| Produkt-ID | 43019-XT-2002, 43019-XT-2003, 43019-XT-2004 | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Amston Lake | |||
| Nummer | Intel Atom X7211RE, Intel Atom X7433RE, Intel Atom x7835RE | |||
| CPU Kerne | 2 St, 4 St, 8 St | |||
| Sockel | BGA 1264 | |||
| Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz | |||
| Thermal Design Power (TDP) | 6 W, 9 W, 12 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 16 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | Chrontel CH7513A-BF | |||
| Erweiterung | ||||
| PCIe x1 | x1 Signal | 1 St | ||
| PCIe Schnittstellen | 1x PCIe x1 | |||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, PCIe ×1 (Gen. 3), UIM, USB 2.0 | |||
| Unterstütze Abmaße | 2242, 2280, 3042, 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | TSI 92HD91B | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

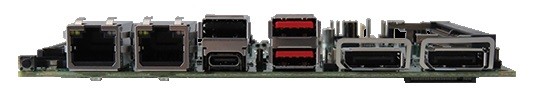

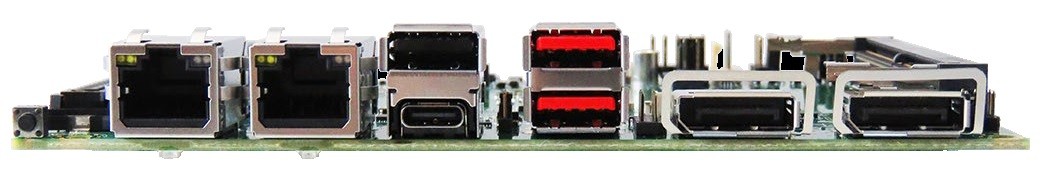

| Externe I/O (Rückseite) | ||||
| Anzeige | Displayport | 2 St | ||
| DP USB-C | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 1 St | ||
| USB v3.2 (Gen 2) | 2 St | |||
| USB v3.2 (Gen 2, Type C) | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| Serial Peripheral Interface (SPI) | 1 St | |||
| I²C | 1 St | |||
| UART | Tx/Rx | 1 St | ||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| S/PDIF | verfügbar | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9672 VU 2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 9~36V | |||
| Anschluss | 4 Pin Anschluss (horizontal) | |||
| Stromversorgung - Eingang | DC: 9~36V | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -40° bis 85°C | ||
| Lagerung | -55° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Lagerung | 0 bis 95%, nicht kondensierend | |||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 105 mm | |||
| Bedienelemente | Power | 1 St | ||
| Statusanzeigen | Storage | 1 St | ||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| UL | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | UKCA | |||
| RoHS konform | Ja | |||
