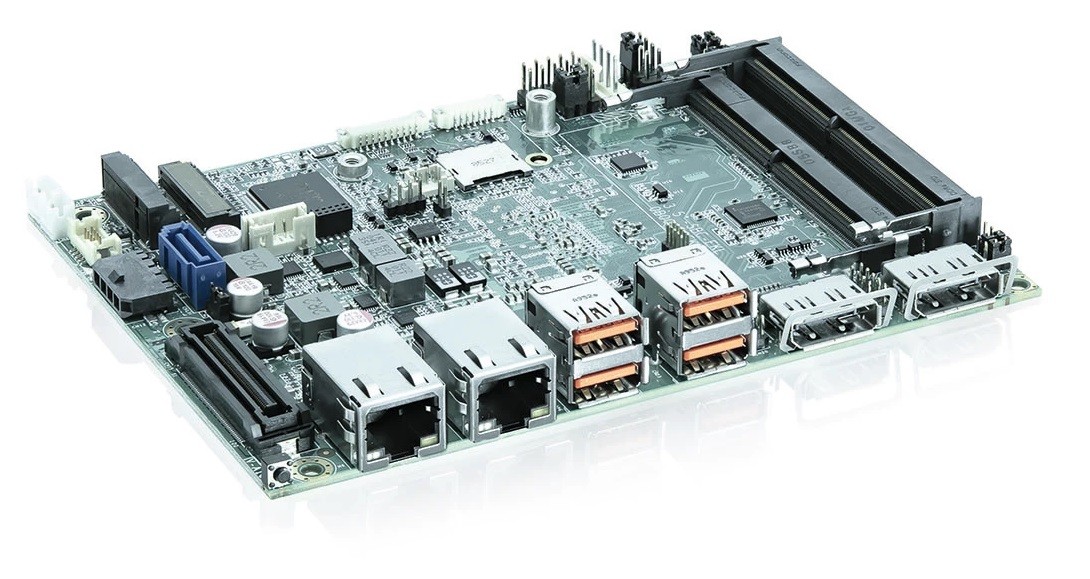

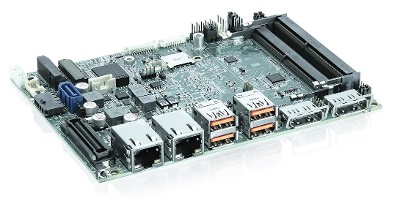

3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Atom x6211E | Intel Atom x6212RE | Intel Atom x6425RE | Intel Celeron J6413]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCIe x2
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

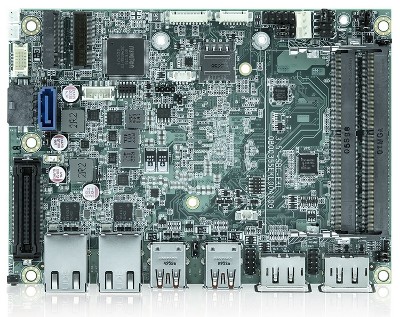

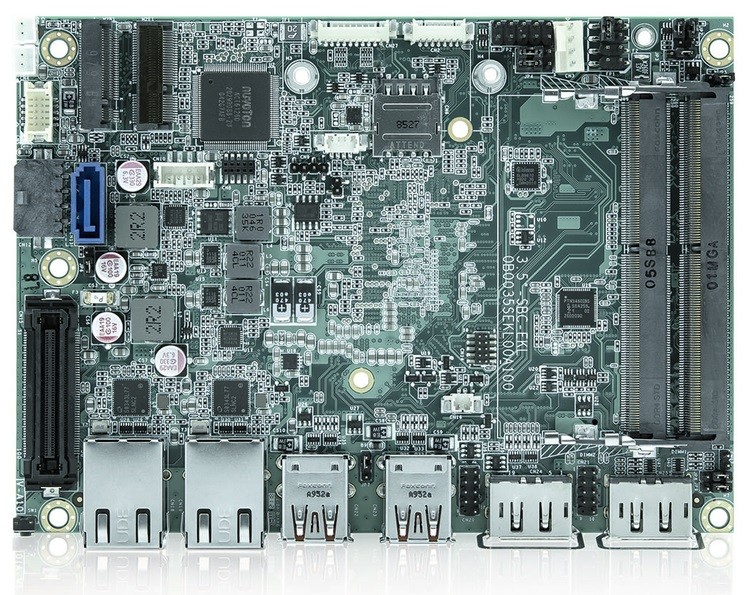

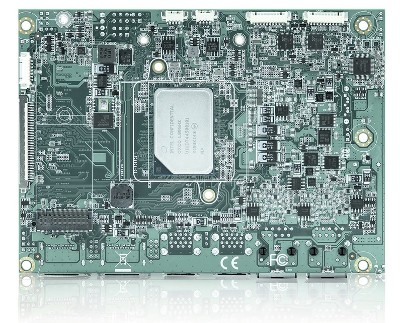

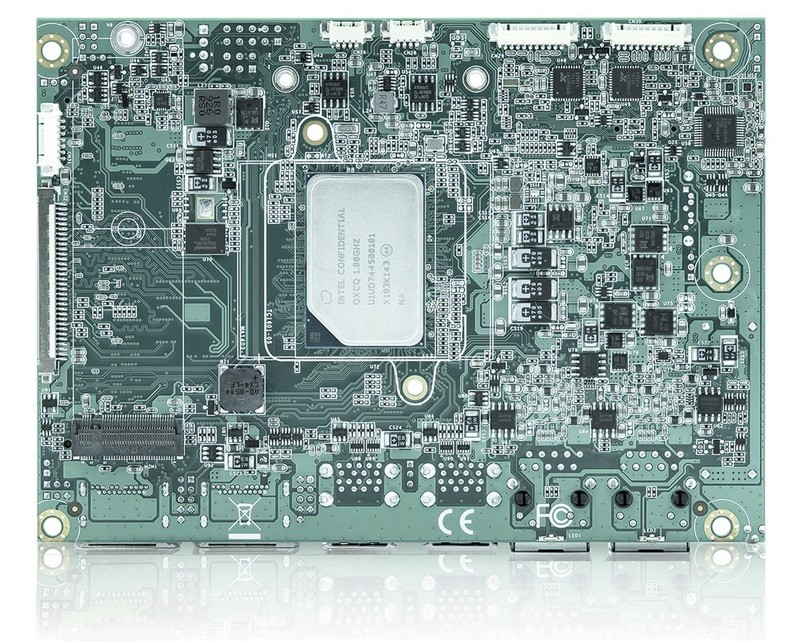

Basismodul: Kontron SBC-EKL

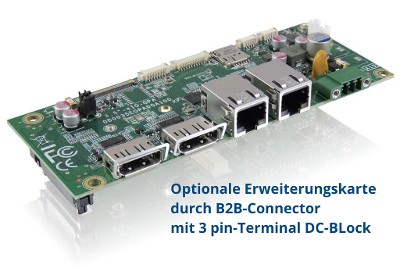

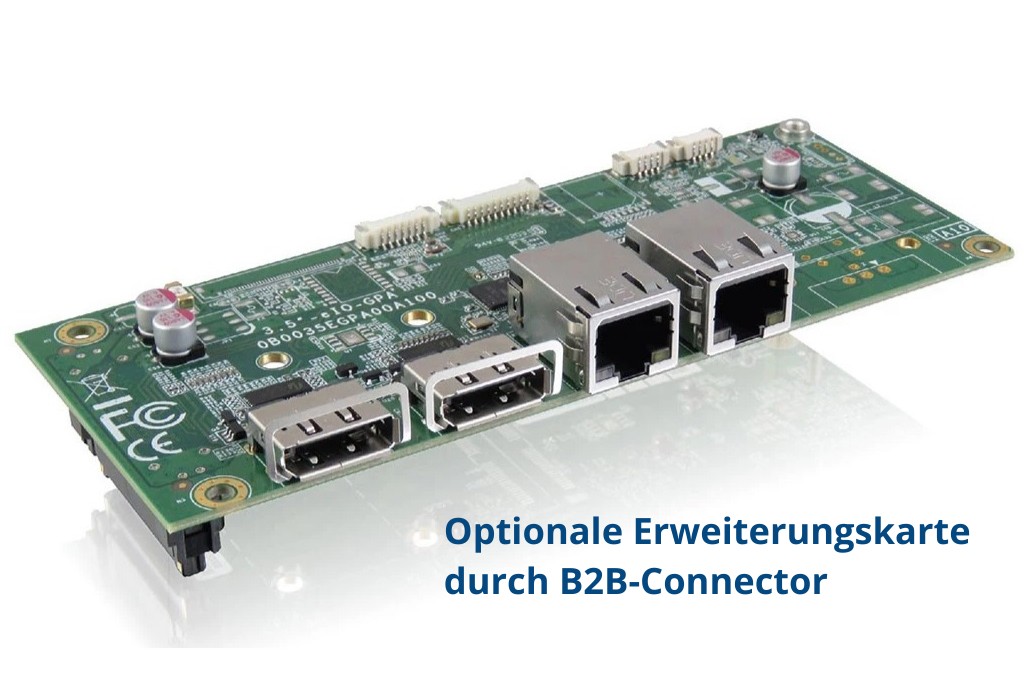

| Allgemein | ||||
| SKU / Artikelnummer | SBC-EKL | |||
| Produktgrunddaten | ||||
| Hersteller | Kontron | |||
| Produkt-ID | 43018-0000-12-2, 43018-0000-13-2, 43018-0000-18-4, 43018-0000-19-4 | |||
| System | ||||
| Prozessor | Vertikales Segment | Industrial | ||
| Serie | Intel Elkhart Lake | |||
| Nummer | Intel Atom x6211E, Intel Atom x6212RE, Intel Atom x6425RE, Intel Celeron J6413 | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St | |||
| Sockel | BGA 1493 | |||
| Basis Frequenz | 1,2 GHz, 1,3 GHz, 1,8 GHz, 1,9 GHz | |||
| Max. Turbo-Taktfrequenz | 3 GHz, - | |||
| Cache | 1,5 MB | |||
| Thermal Design Power (TDP) | 6 W, 10 W, 12 W | |||
| Lithographie | 10 nm | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 3200 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 32 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | NXP PTN3460 | |||
| Erweiterung | ||||
| PCIe x2 | x2 Signal | 2 St | ||
| PCIe Schnittstellen | 2x PCIe x2 | |||
| M.2 | Slot 1 | Key ID | B | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | I²C, PCIe ×1 (Gen. 3), SDIO, UART, USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×1 (Gen. 3), SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Audio | ||||
| Chipsatz | TSI 92HD73C | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||
| Externe I/O (Rückseite) | ||||

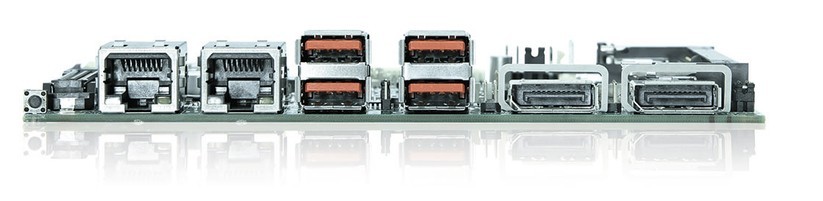

| Anzeige | Displayport | 2 St | ||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 2 St | ||
| USB v3.2 (Gen 2) | 2 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
| Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | |
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| Serial Peripheral Interface (SPI) | 1 St | |||
| I²C | 1 St | |||
| UART | Tx/Rx | 1 St | ||
| CAN Bus | Version 2.0B (Interface) | 2 St | ||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Amplifier | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9670 VQ 2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Bereich | 12V | |
| Anschluss | 4 Pin Anschluss (vertikal) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
| Lagerung | -20° bis 80°C, -55° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Lagerung | 5 bis 95%, nicht kondensierend | |||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 105 mm | |||
| Bedienelemente | Power | 1 St | ||
| Statusanzeigen | Power | 1 St | ||
| System Status | 1 St | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | CSA C22.2 No. 60601-1, UKCA | |||
| RoHS konform | Ja | |||
